Column Lock Wiring Schematics: ULS

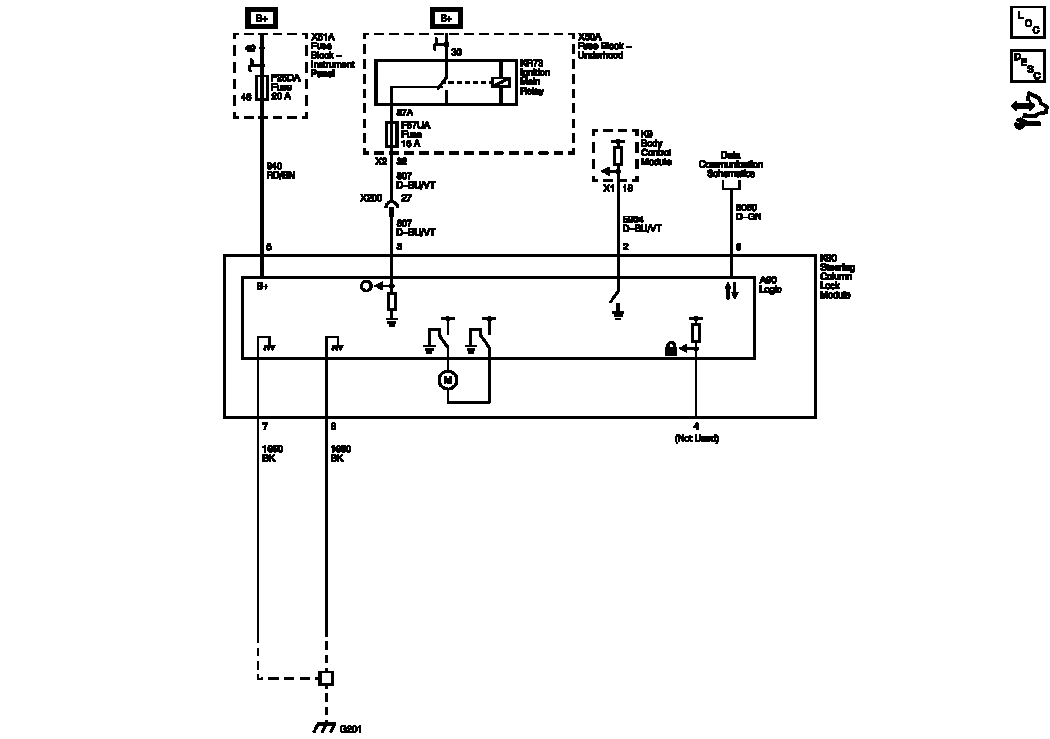

Fig 1: Column Lock (ULS) Wiring Schematic

GM2587837

Courtesy of GENERAL MOTORS COMPANY
