Installation Procedure

  1. Maneuver the power steering gear inlet hose as necessary in order to position the hose in the vehicle.

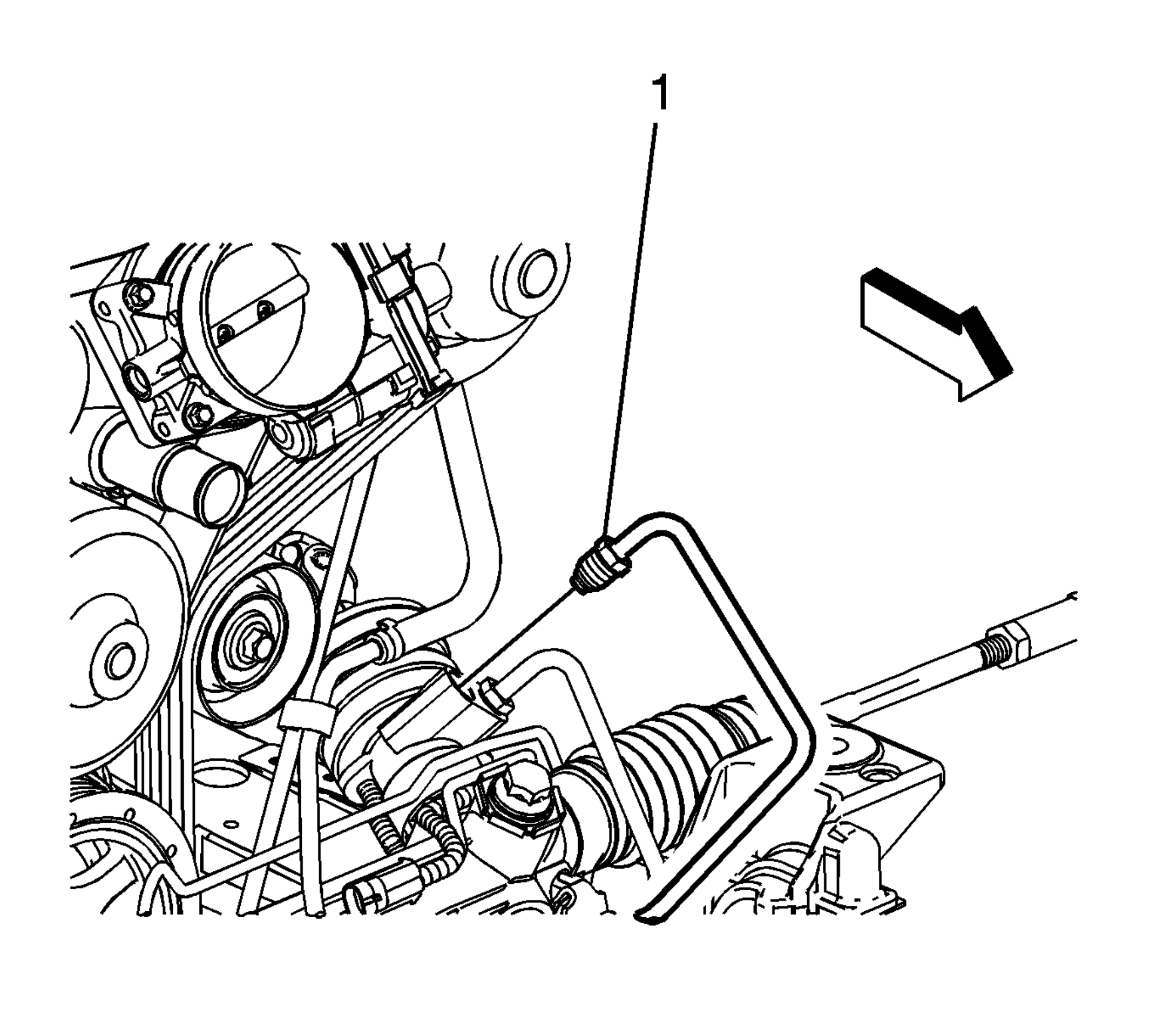

    2. Fig 1: View Of Power Steering Gear Inlet Hose
    GM2139388Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Hand start the power steering gear inlet hose fittings before finalizing any torques.

  2. Connect the power steering gear inlet hose (1) to the steering gear and tighten to 34 N.m (25 lb ft).
    3. Fig 2: Identifying Power Steering Gear Inlet Hose
    GM2139374Courtesy of GENERAL MOTORS COMPANY
  3. Connect the power steering gear inlet hose (1) to the power steering pump and tighten to 34 N.m (25 lb ft).
  4. Clean any excess power steering fluid from the vehicle.
  5. Remove the drain pans.
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
