Removal Procedure

  1. Open the instrument panel (I/P) compartment door.
  2. Remove the I/P compartment. Refer to Instrument Panel Compartment Replacement .

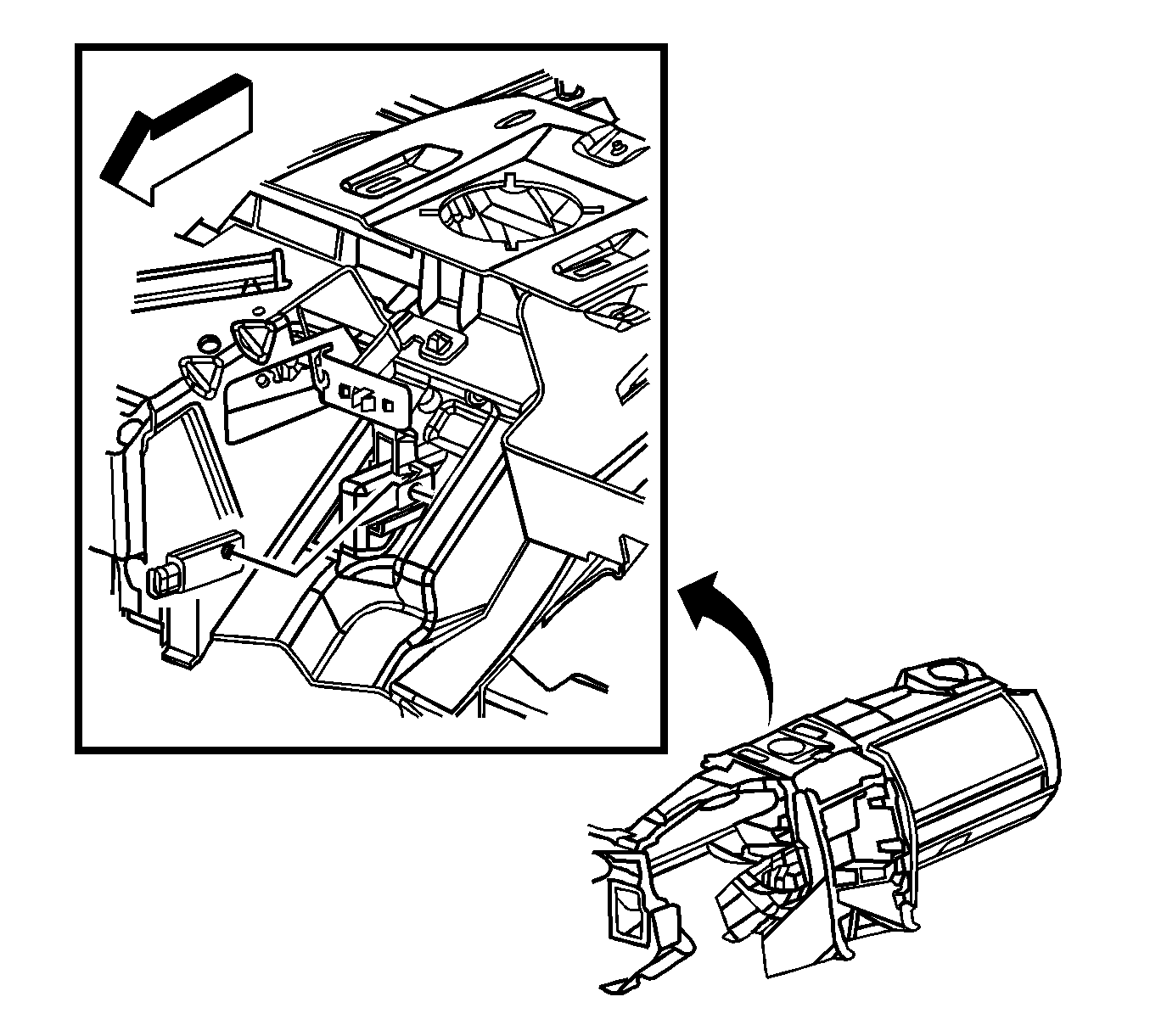

    3. Fig 1: View Of Antenna Wire Harness, Retaining Bracket & Lead Connector
    GM1231039Courtesy of GENERAL MOTORS COMPANY
  3. Remove the I/P antenna by pulling to disengage the antenna from the retaining bracket.
  4. Disconnect the lead connector from the antenna wire harness.
