Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

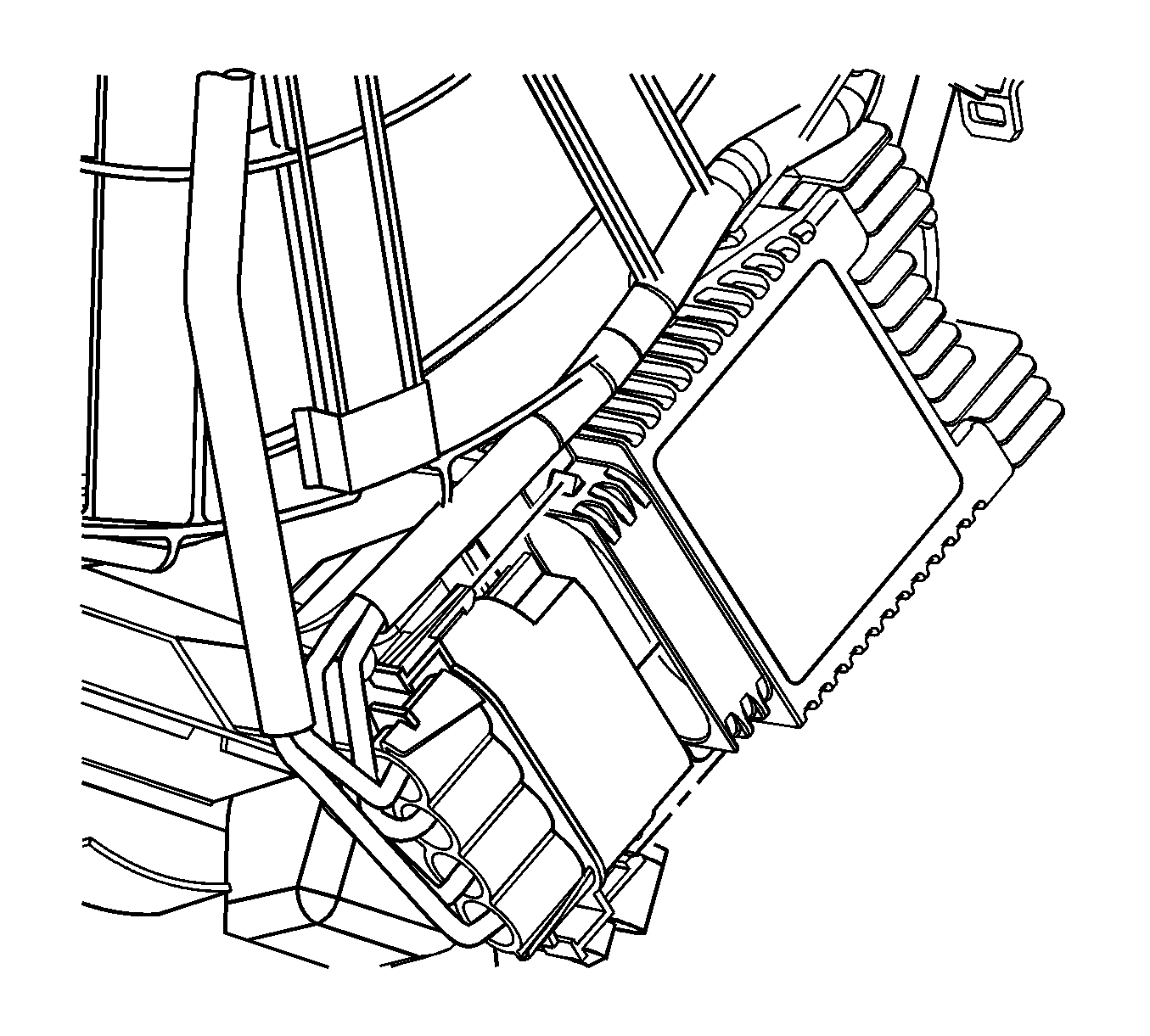

    2. Fig 1: View Of Cooling Fan Control Module Electrical Connector
    GM1500599Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the cooling fan control module electrical connector.

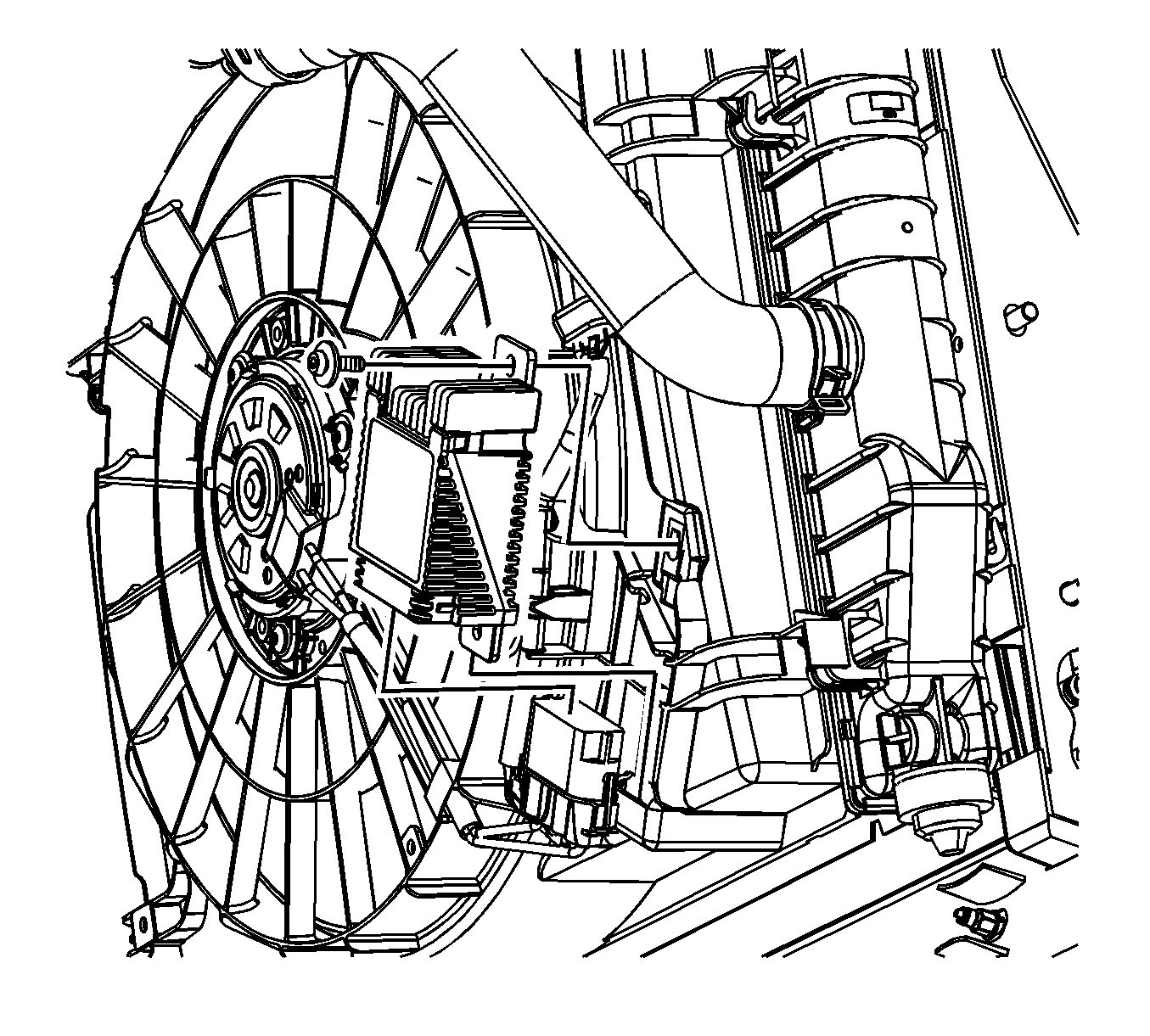

    3. Fig 2: View Of Cooling Fan Control Module
    GM1500602Courtesy of GENERAL MOTORS COMPANY
  3. Remove the cooling fan control module retaining bolt.
  4. Remove the cooling fan control module from the vehicle.
