Removal Procedure

WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Protective Goggles and Glove Warning .

    Fig 1: View Of Exhaust Muffler Band Clamps
    GM932058Courtesy of GENERAL MOTORS COMPANY
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Install adjustable jack stands under the front and rear of the intermediate pipe.
  3. Loosen the exhaust muffler band clamps (2, 5).
    4. Fig 2: View Of Exhaust Mufflers And Intermediate Pipe
    GM1968507Courtesy of GENERAL MOTORS COMPANY
  4. Separate the exhaust mufflers (1) from the intermediate pipe (2).
    5. Fig 3: Identifying Exhaust Pipe Hanger Lower Nuts
    GM1968532Courtesy of GENERAL MOTORS COMPANY
  5. Remove the exhaust pipe hanger lower nuts (1).

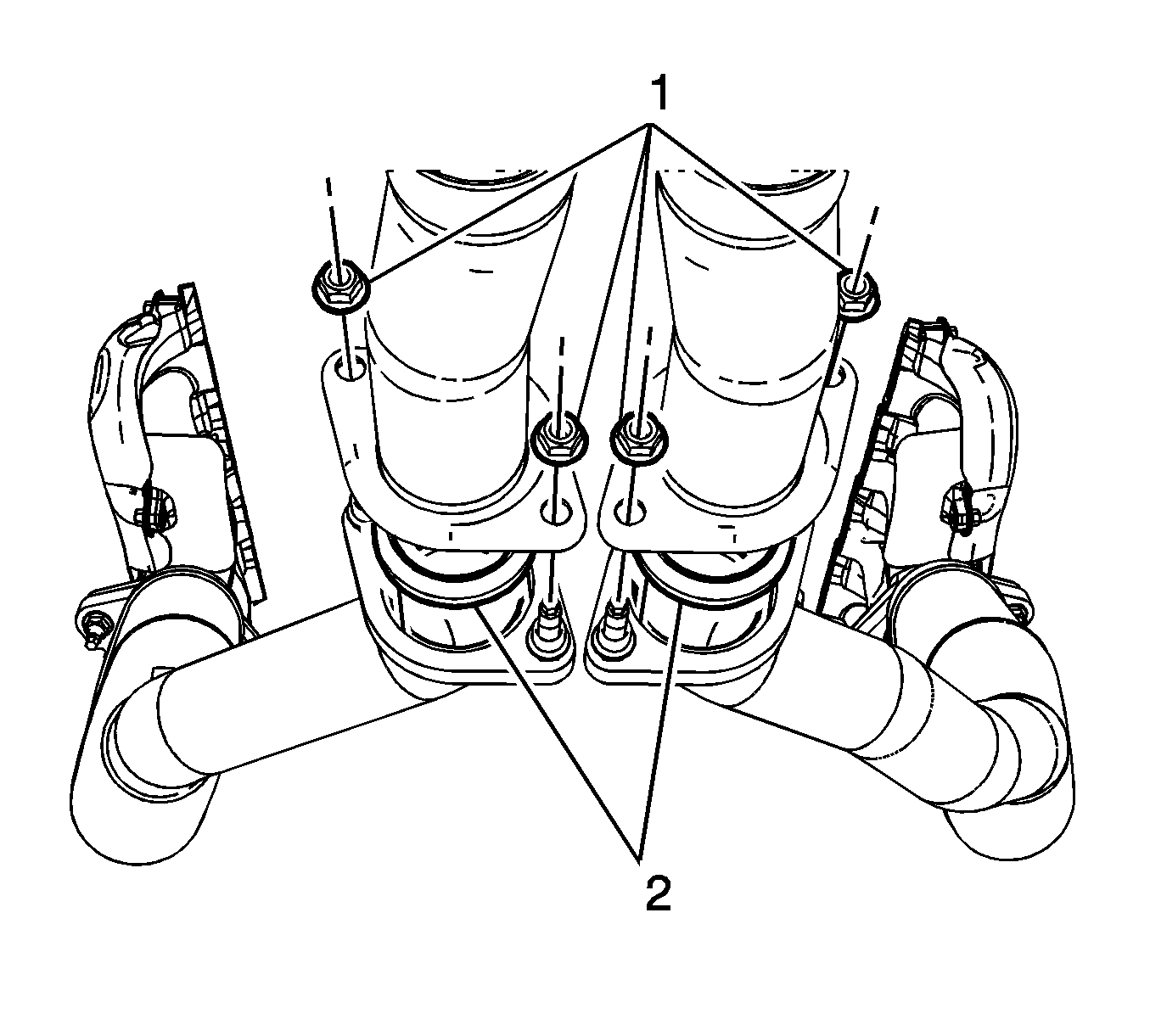

    6. Fig 4: Identifying Intermediate Pipe-To-Catalytic Converter Pipe Nuts And The Exhaust Pipe Seals
    GM1968649Courtesy of GENERAL MOTORS COMPANY
  6. Remove the intermediate pipe-to-catalytic converter pipe nuts (1) and the exhaust pipe seals (2).
  7. Lower the jack stands.
  8. Remove the intermediate pipe from the jack stands.
