Electronic Traction Control Switch Replacement

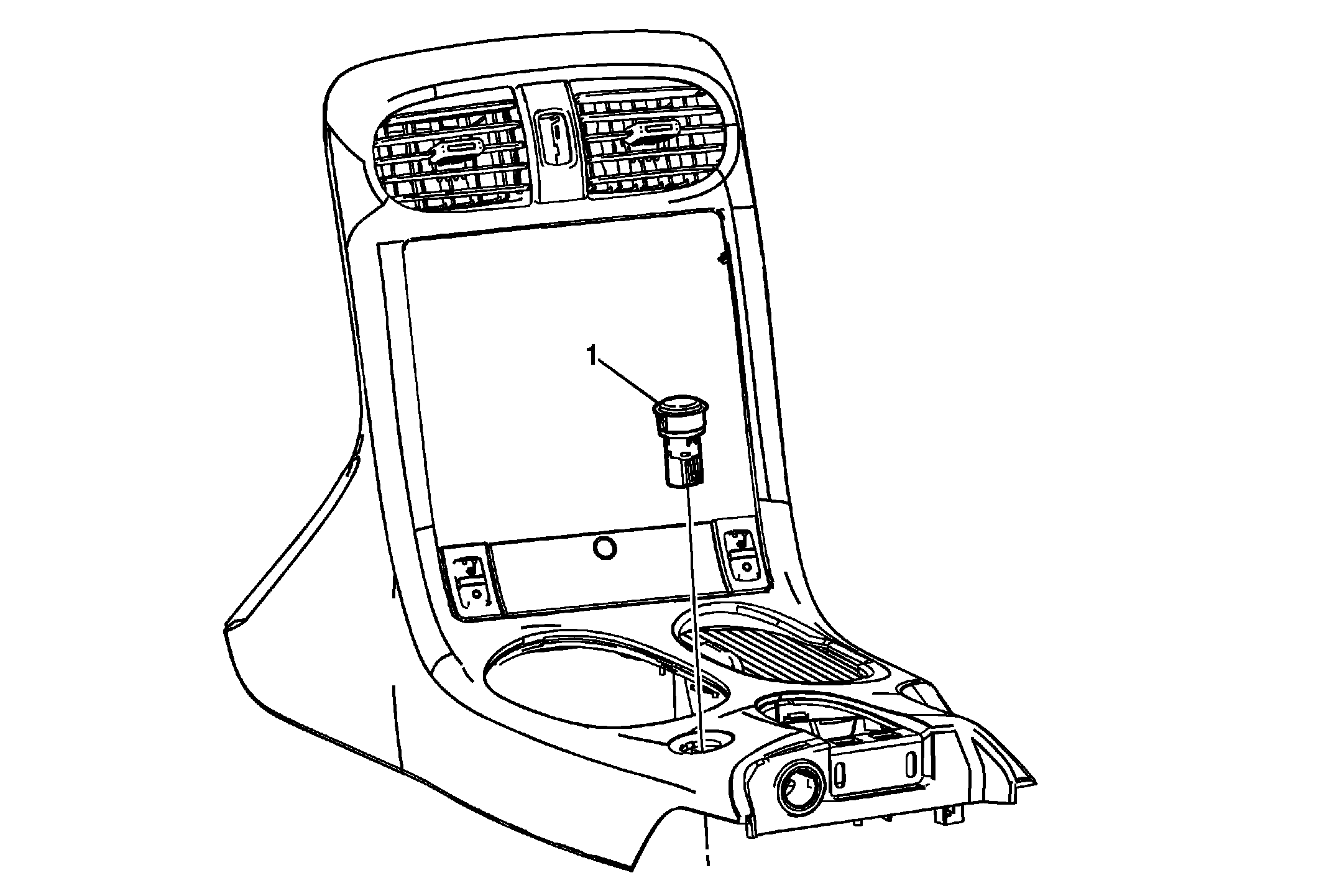

Fig 1: Locating Traction Control Switch Assembly

Courtesy of GENERAL MOTORS COMPANY

Electronic Traction Control Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the Instrument Panel Accessory Trim Plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
1	Traction Control Switch Assembly TIP:  Squeeze the tabs securing the traction control switch to the trim plate and remove the switch from the plate.
