Steering Wheel Replacement

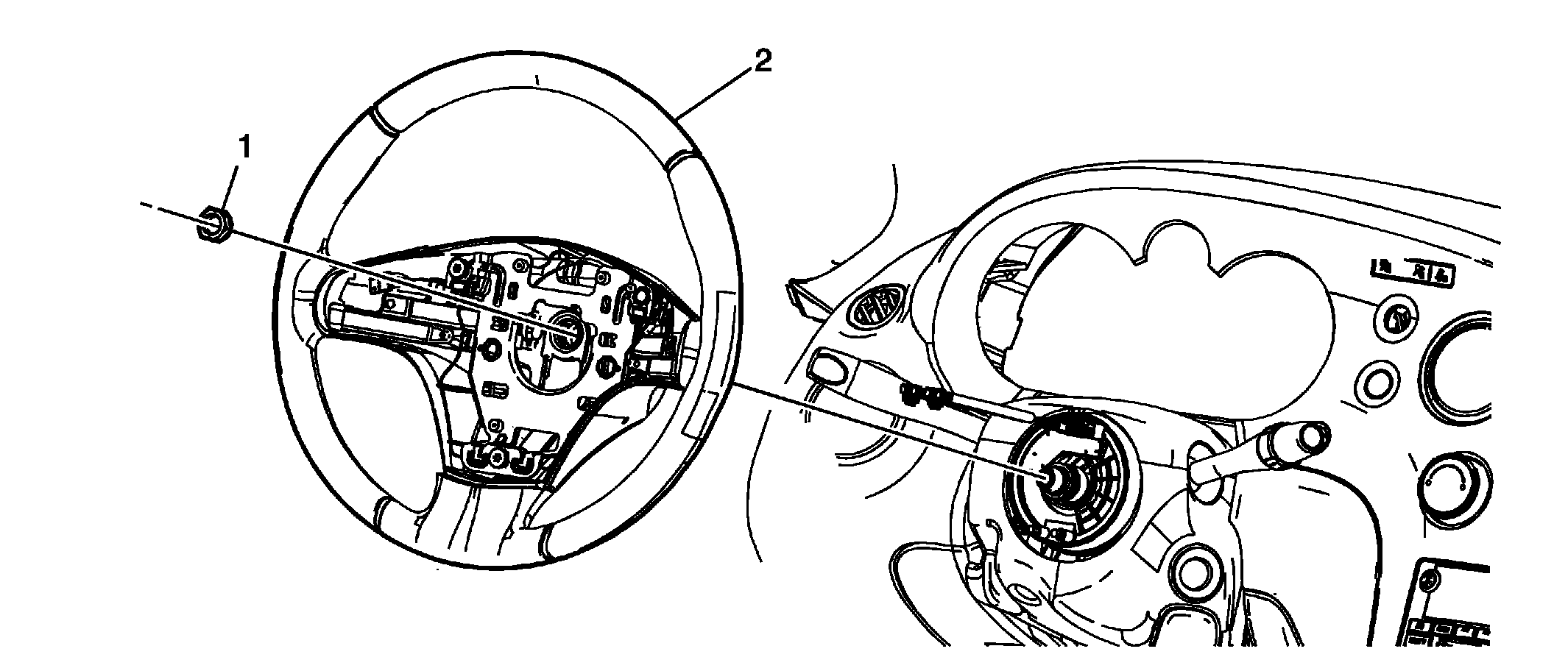

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten 37 N.m (27 lb ft)
2	Steering Wheel Procedure Disconnect any electrical connectors as needed. Use the J 1859-A puller and the J 36541-A puller legs to remove the steering wheel. Special Tools J 1859-A Steering Wheel Puller J 36541-A Steering Wheel Puller Legs For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement

Steering Wheel Nut

CAUTION:

Tighten
37 N.m (27 lb ft)

Steering Wheel

Procedure

Disconnect any electrical connectors as needed.
Use the J 1859-A puller and the J 36541-A puller legs to remove the steering wheel.

Special Tools

For equivalent regional tools, refer to Special Tools .
