WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
Illustration
Tool Number/ Description
Courtesy of GENERAL MOTORS CORP.

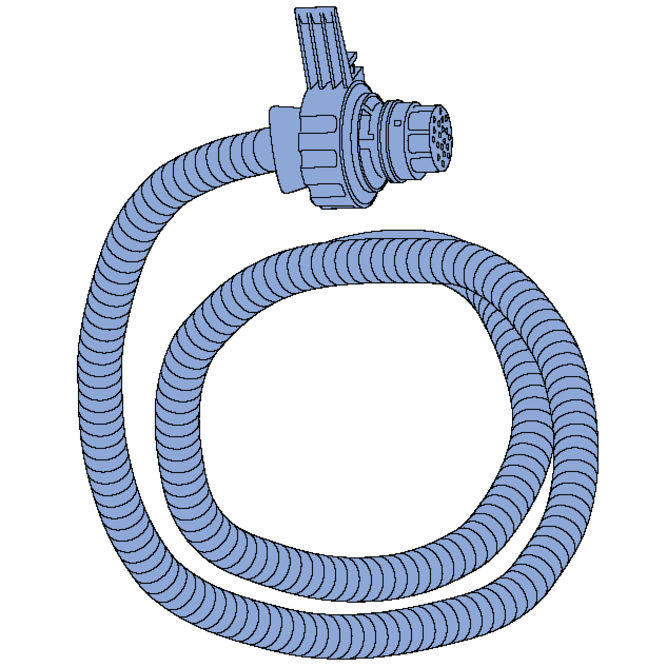

DT-47825-10 Jumper Harness
Courtesy of GENERAL MOTORS CORP.

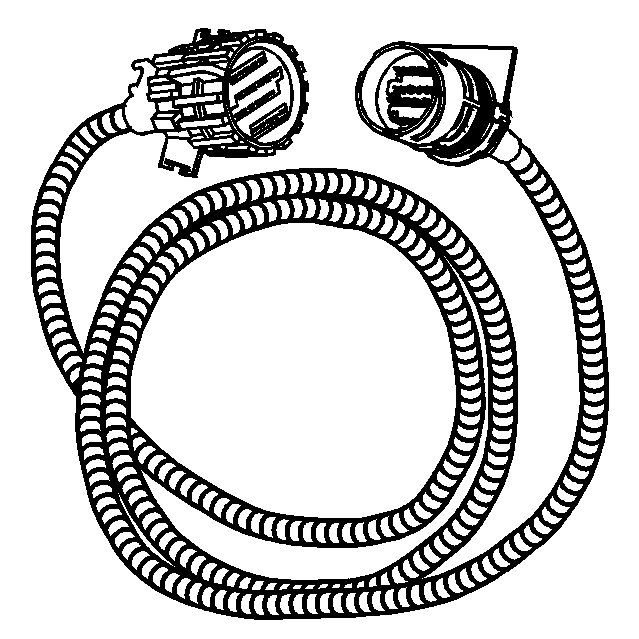

DT-48493 Jumper Harness
Courtesy of GENERAL MOTORS CORP.
EL-48458 Pre-Charge Tester
Courtesy of GENERAL MOTORS CORP.
GE-48494 Power Electronics Pressure Test Adapter Kit
