Power, Ground and Serial Data Wiring Schematics

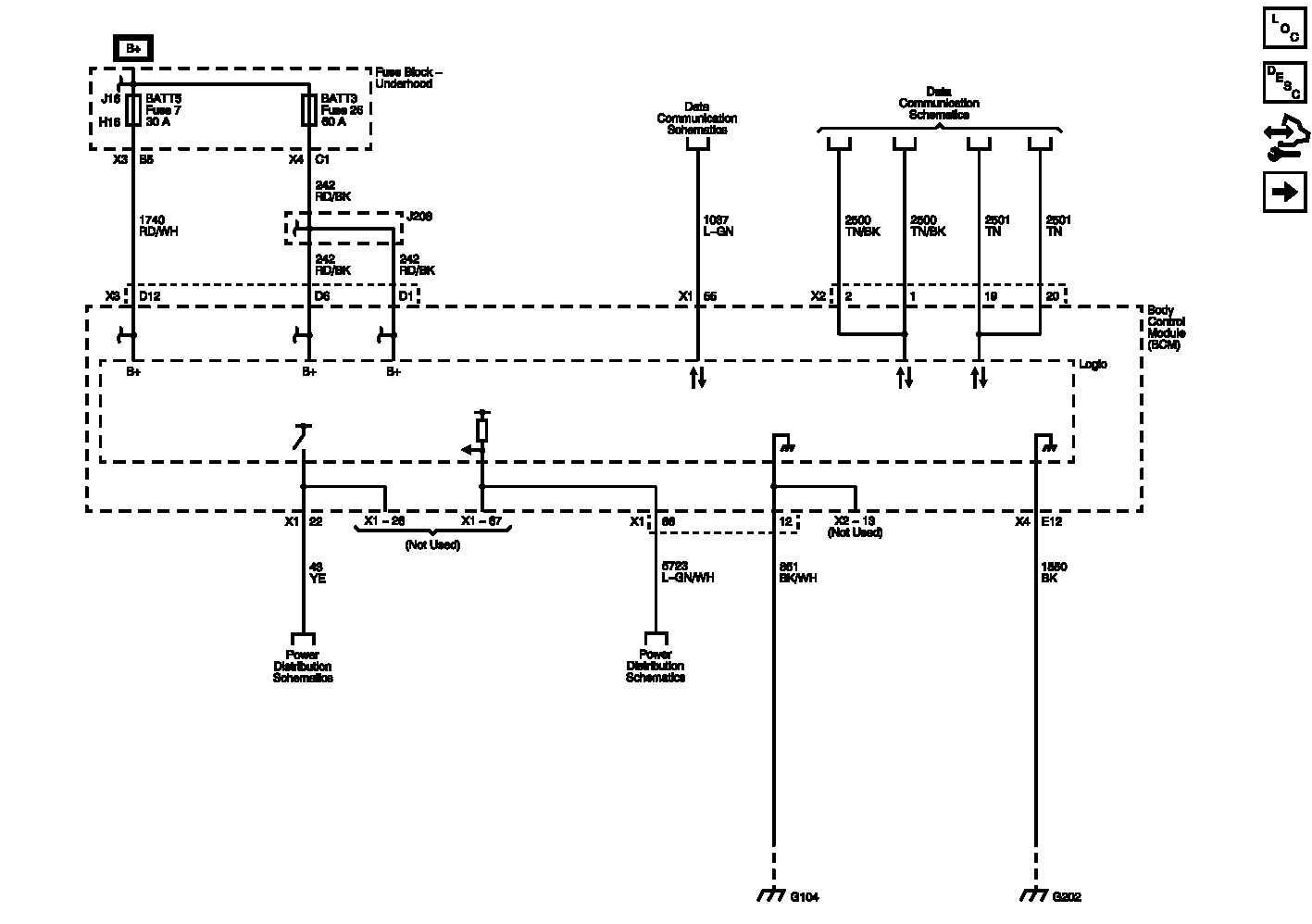

Fig 1: Power, Ground and Serial Data Wiring Schematics

GM2565829

Courtesy of GENERAL MOTORS COMPANY
