Installation Procedure

  1. Install the solenoid.

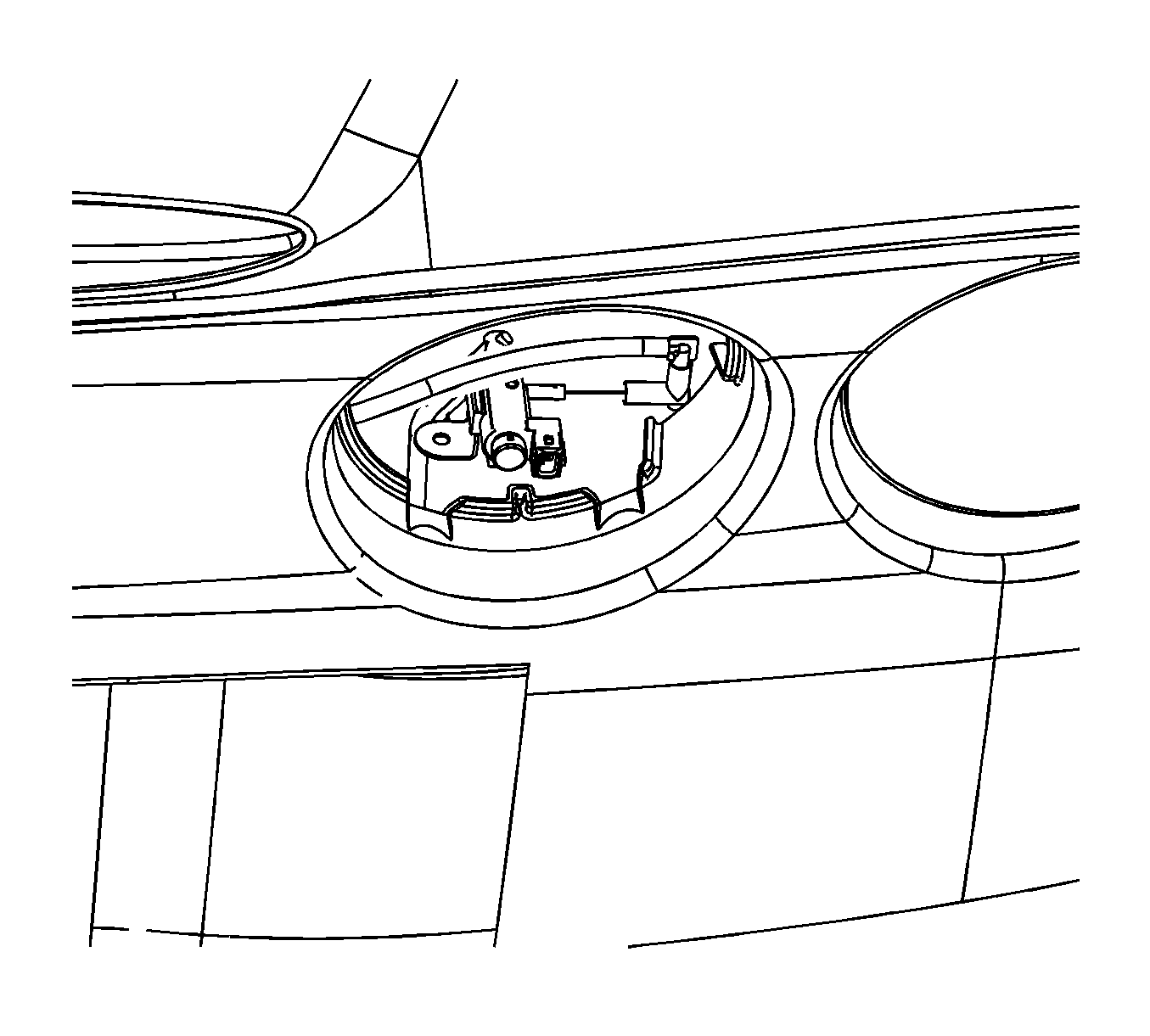

    2. Fig 1: View Of Vacuum Line Components
    GM1674344Courtesy of GENERAL MOTORS COMPANY
  2. Working through the tail lamp opening, connect the vacuum hose to the solenoid.

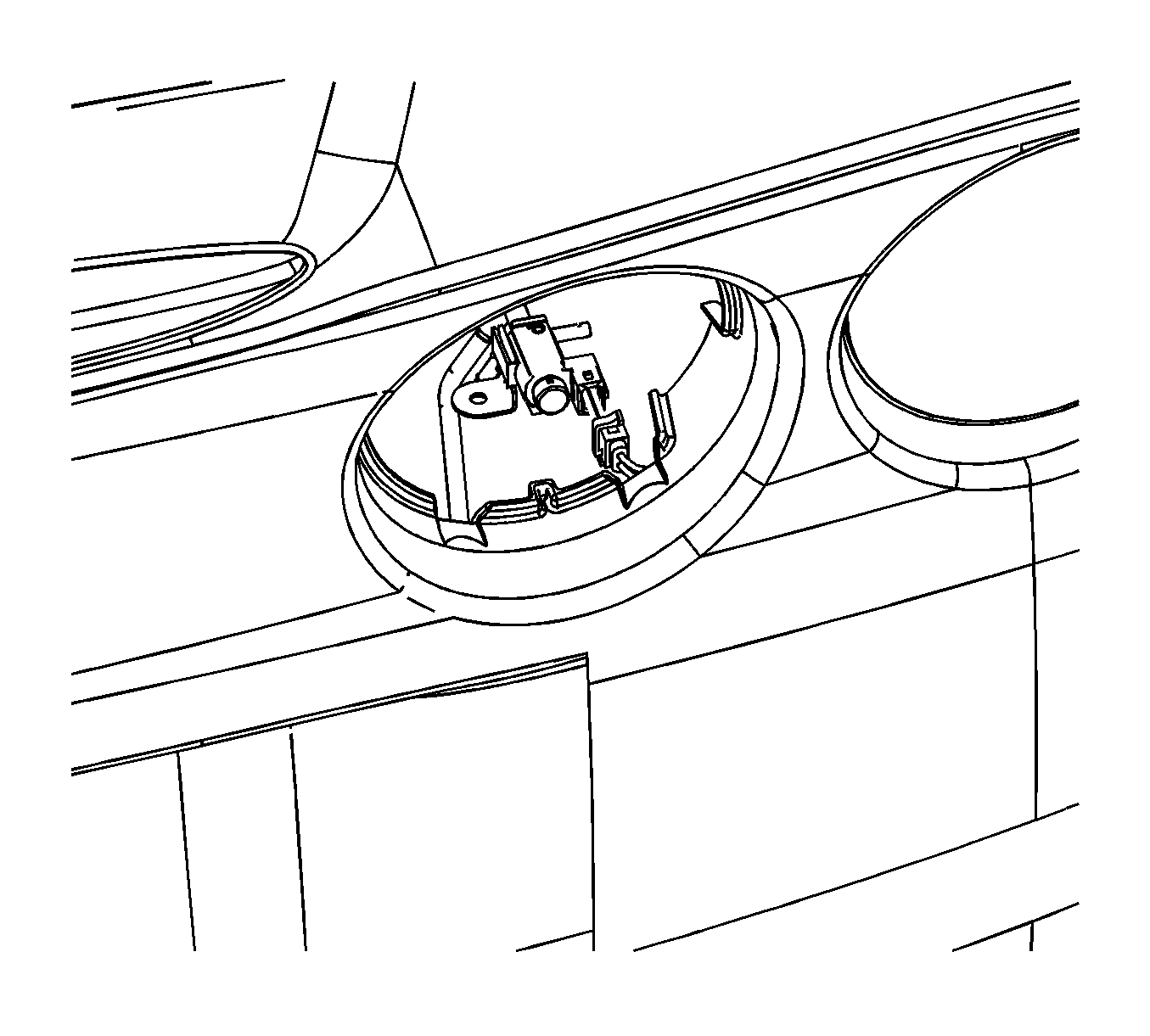

    3. Fig 2: View Of Inner Tail Lamp Removed
    GM1674345Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connector.

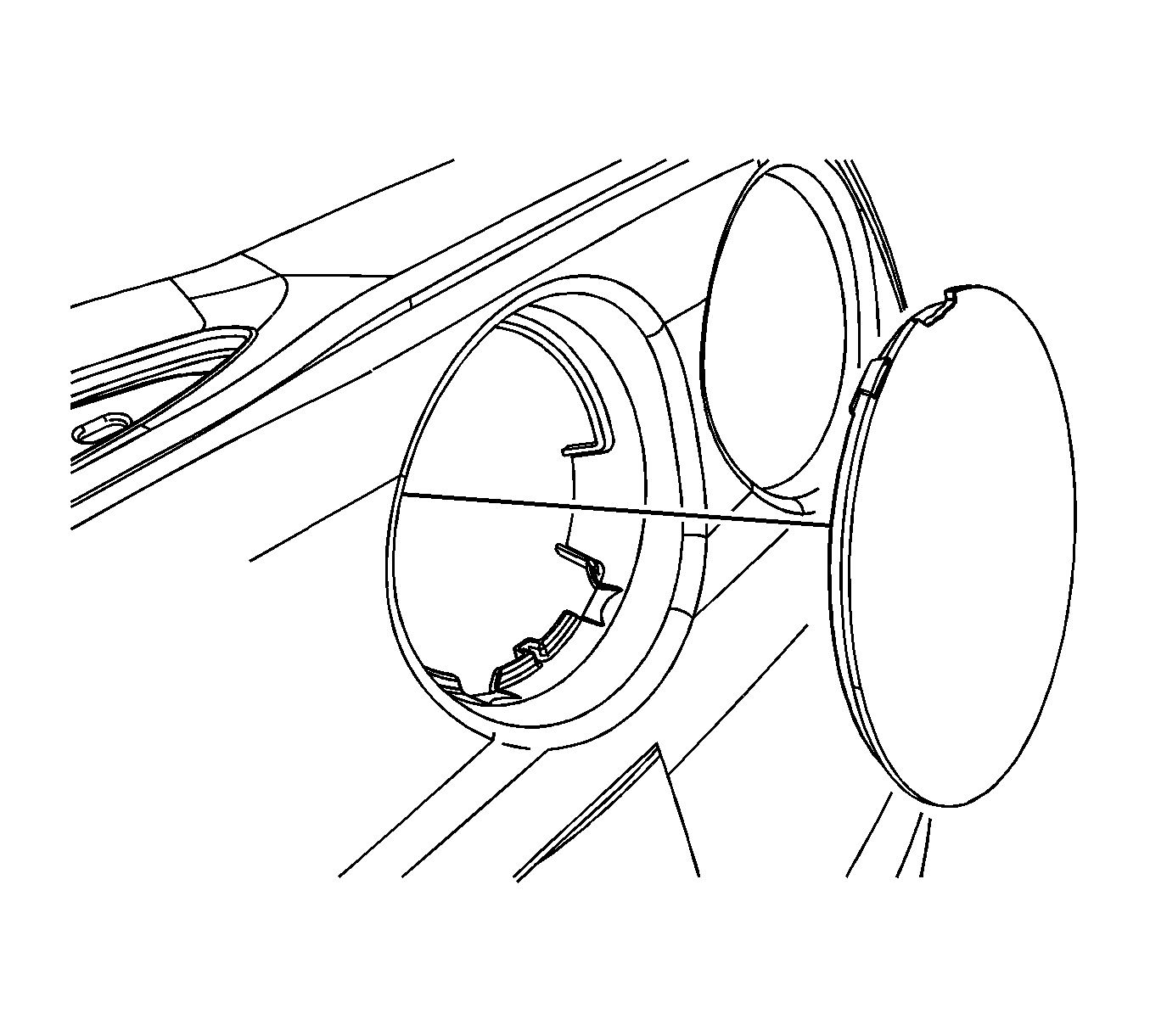

    4. Fig 3: Identifying Tail Lamp Lens
    GM1674355Courtesy of GENERAL MOTORS COMPANY
  4. Install the tail lamp lens.

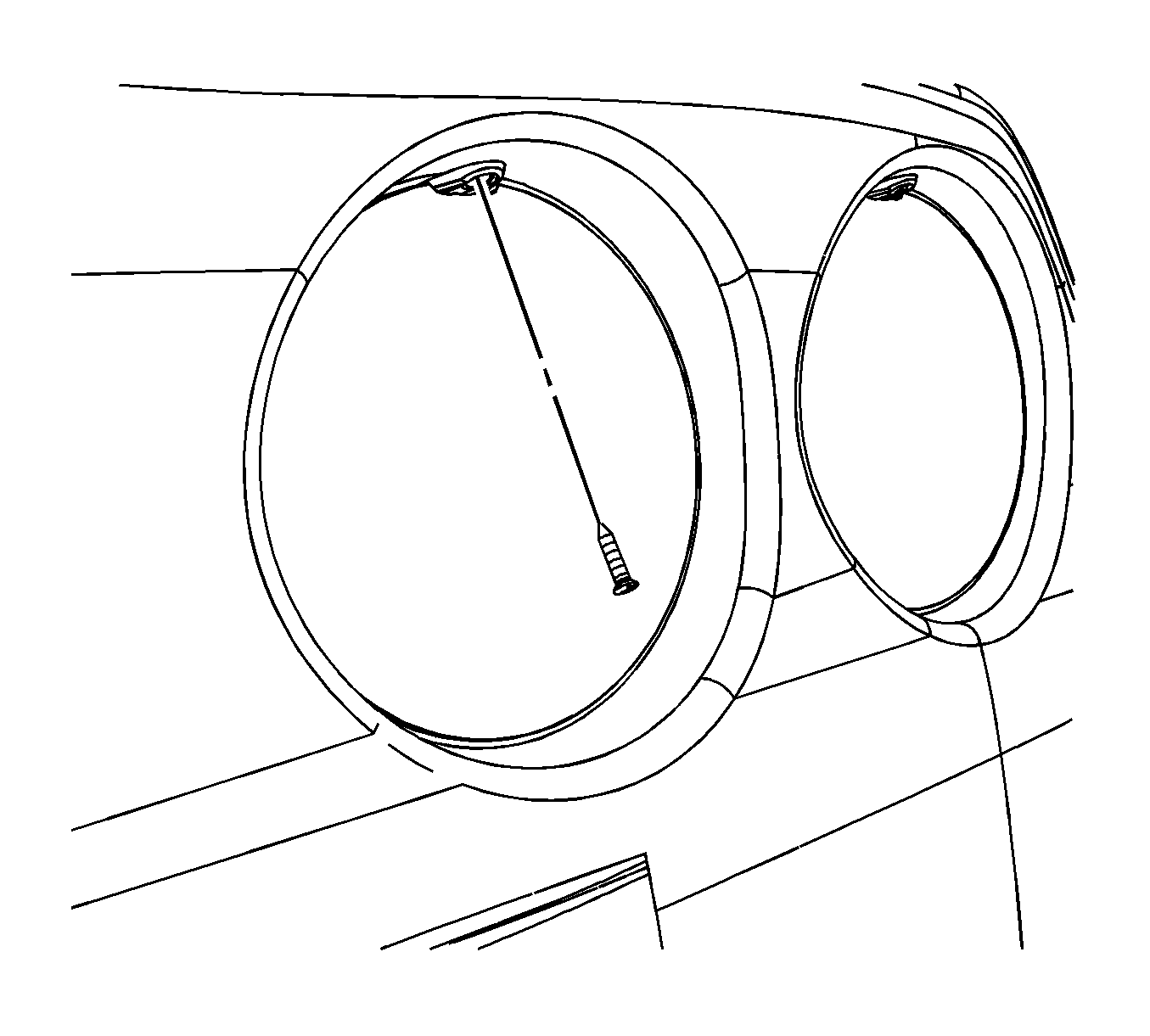

    5. Fig 4: View Of Tail Lamp Lens Screw
    GM1674357Courtesy of GENERAL MOTORS COMPANY
  5. Install the tail lamp lens screw.
