Preliminary Procedures
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
- If equipped with a manual transmission, remove the bell housing cover. Refer to Clutch Assembly Replacement (LS3/LS7)
, Clutch Assembly Replacement (LS9)
.
|

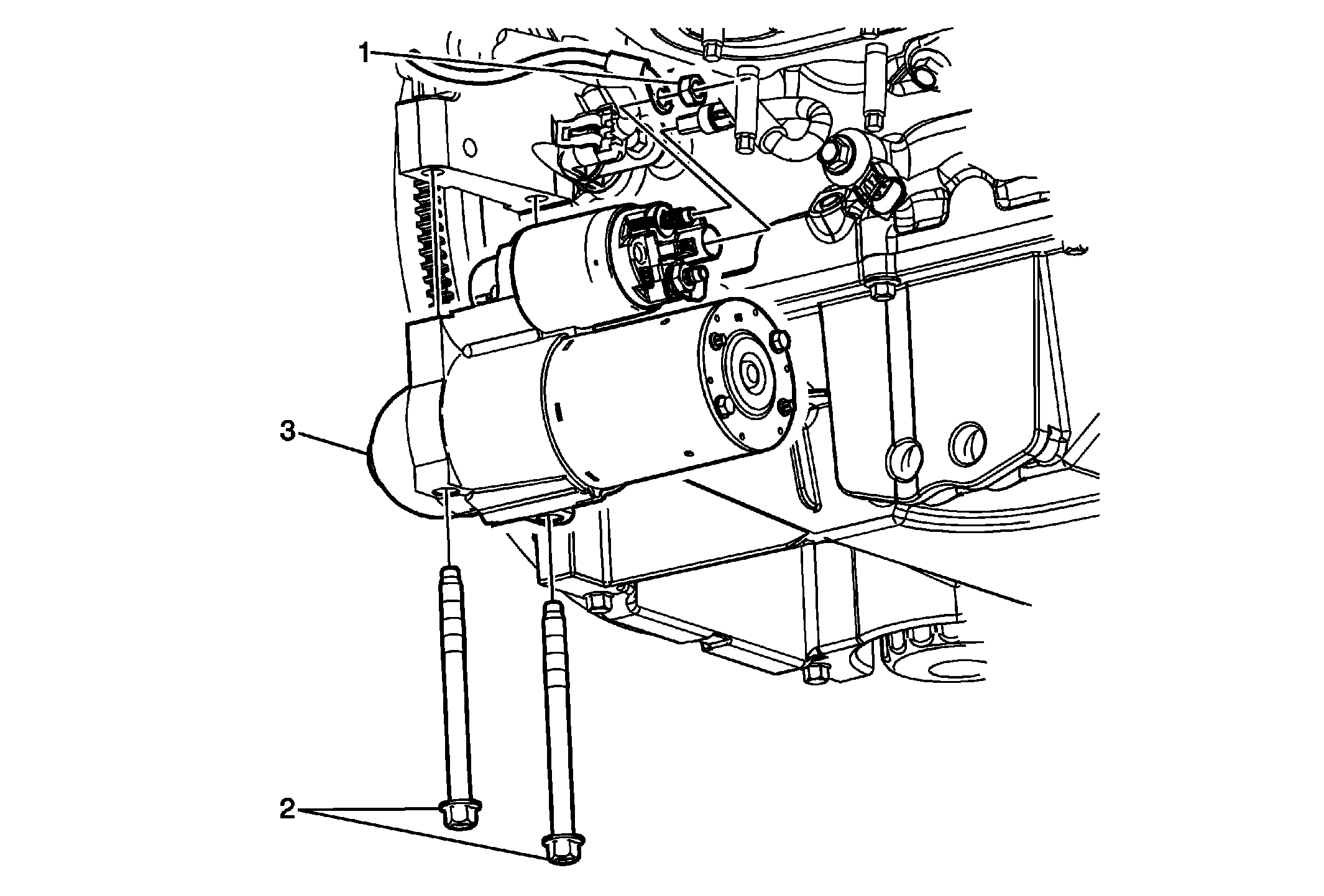

| 1 |
Nut
Tighten
8 N.m (71 lb in) |
| 2 |
Bolt (Qty: 2)
Tighten
50 N.m (37 lb ft) |
| 3 |
Starter Procedure
- Disconnect the S terminal harness connector from the starter.
- Orient the B+ terminal Harness anti rotation tab to the starter orientation slot.
- Remove the B+ terminal harness from the starter.
|
