Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
  2. Disconnect the positive battery cable.

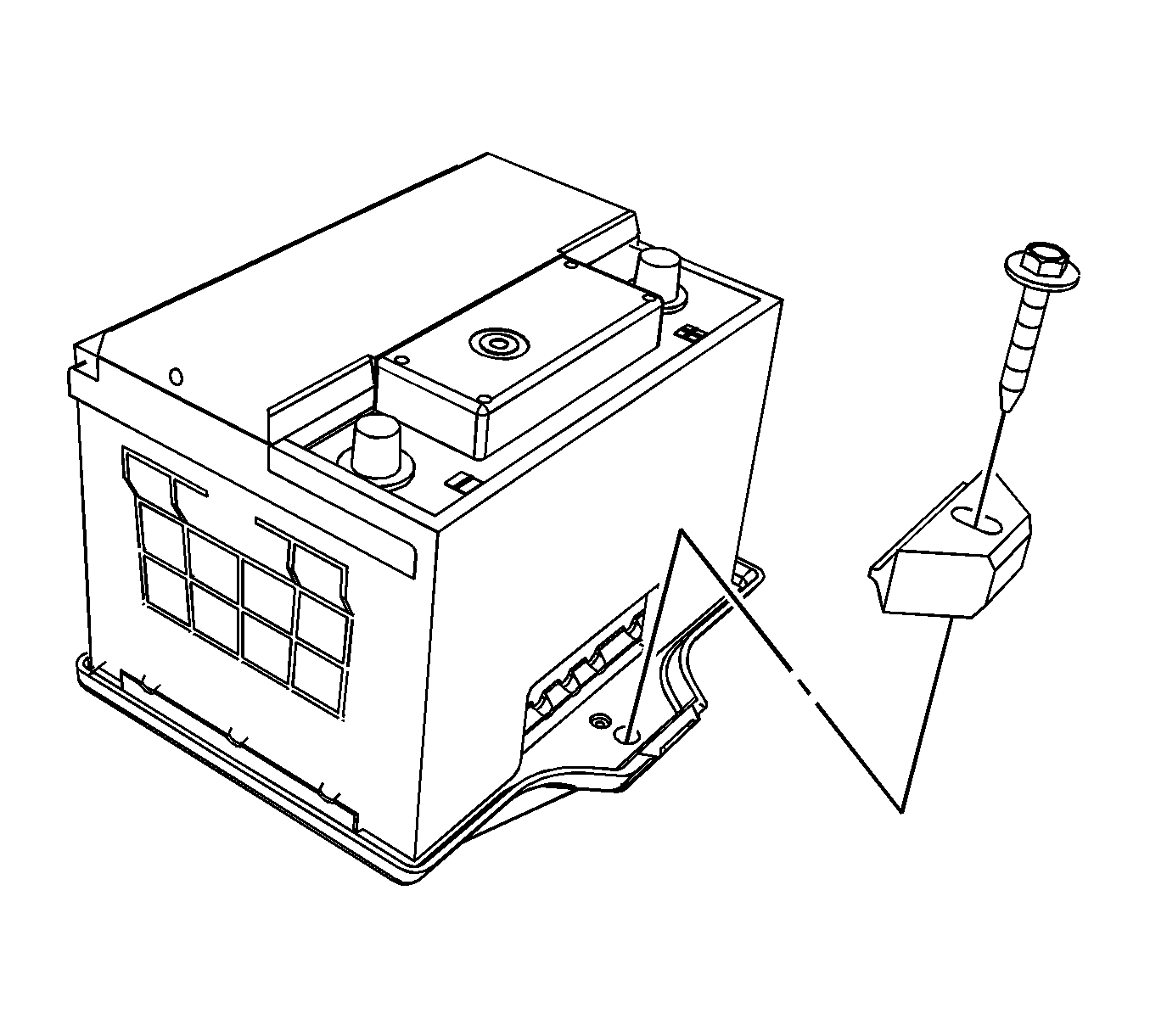

    3. Fig 1: View Of Battery, Hold Down Retainer & Bolt
    GM1704822Courtesy of GENERAL MOTORS COMPANY
  3. Remove the battery hold down retainer bolt and retainer.
  4. Remove the battery.
