Hood Ajar Indicator Switch Replacement

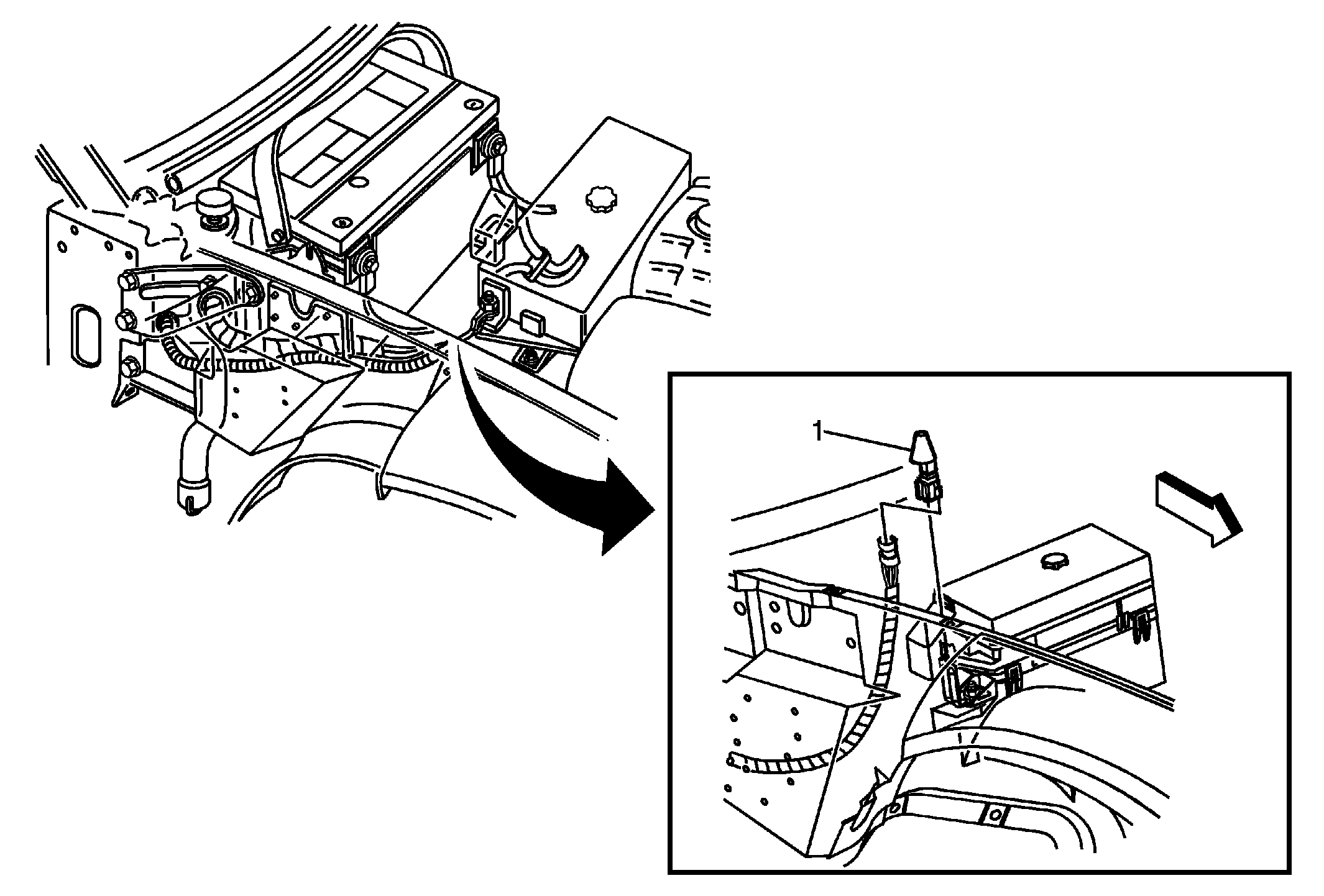

Fig 1: Hood Ajar Indicator Lamp Switch Replacement
GM1975425Courtesy of GENERAL MOTORS COMPANY
Hood Ajar Indicator Switch Replacement

Callout Component Name
1 Hood Ajar Switch
TIP:  Pull up from the base of the switch.
