Steering Wheel Controls (UK3) Wiring Schematics

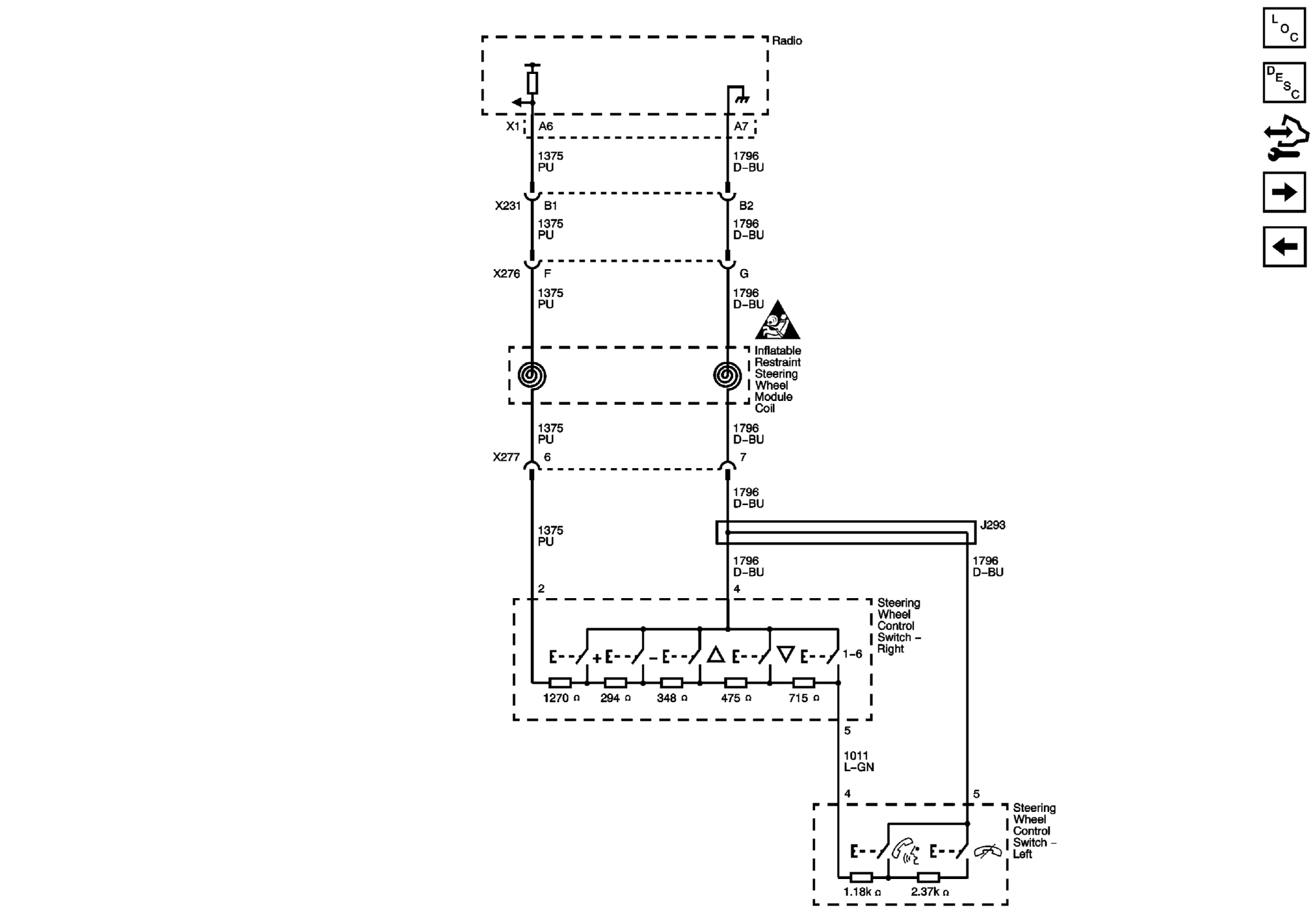

Fig 1: Steering Wheel Controls (UK3) Wiring Schematics

GM2565644

Courtesy of GENERAL MOTORS COMPANY
