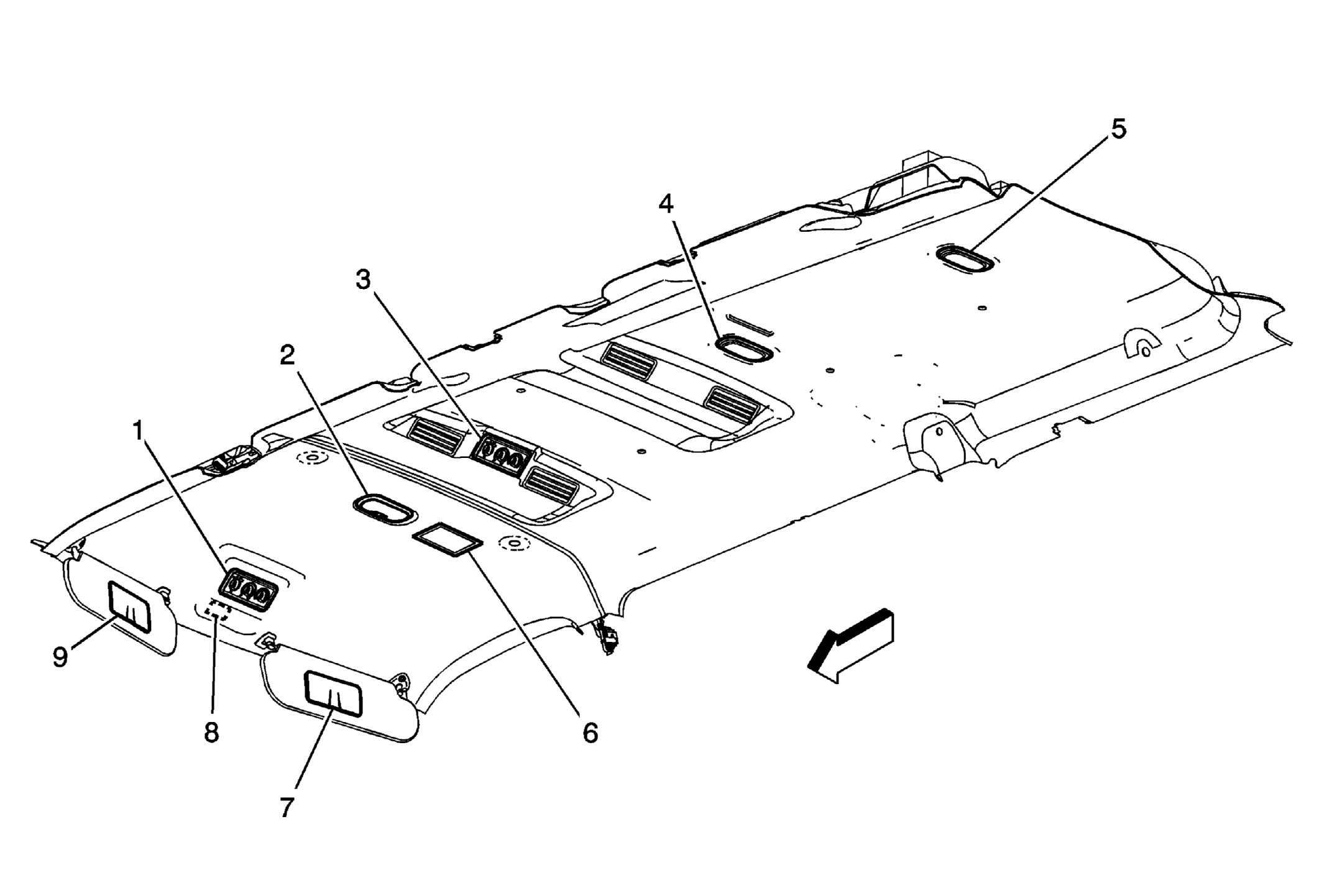

Passenger Compartment/Roof Component Views: Headliner
| Callout | Component Name |
|---|---|
| 1 | HVAC Control Assembly- Front Auxiliary (C69) |
| 2 | Dome/Reading Lamp- Front |
| 3 | HVAC Control Assembly- Rear Auxiliary (C69 with Rear Auxiliary Controls) |
| 4 | Dome/Reading Lamp- Middle (Passenger) |
| 5 | Dome/Reading Lamp- Rear (Passenger)/Dome Lamp (Cargo) |
| 6 | Electronic Compass Module (U80) |
| 7 | Sunshade- Right (DH6) |
| 8 | HVAC Control Module- Auxiliary (C69 with Rear Auxiliary Controls) |
| 9 | Sunshade- Left (DH6 with YF7) |
