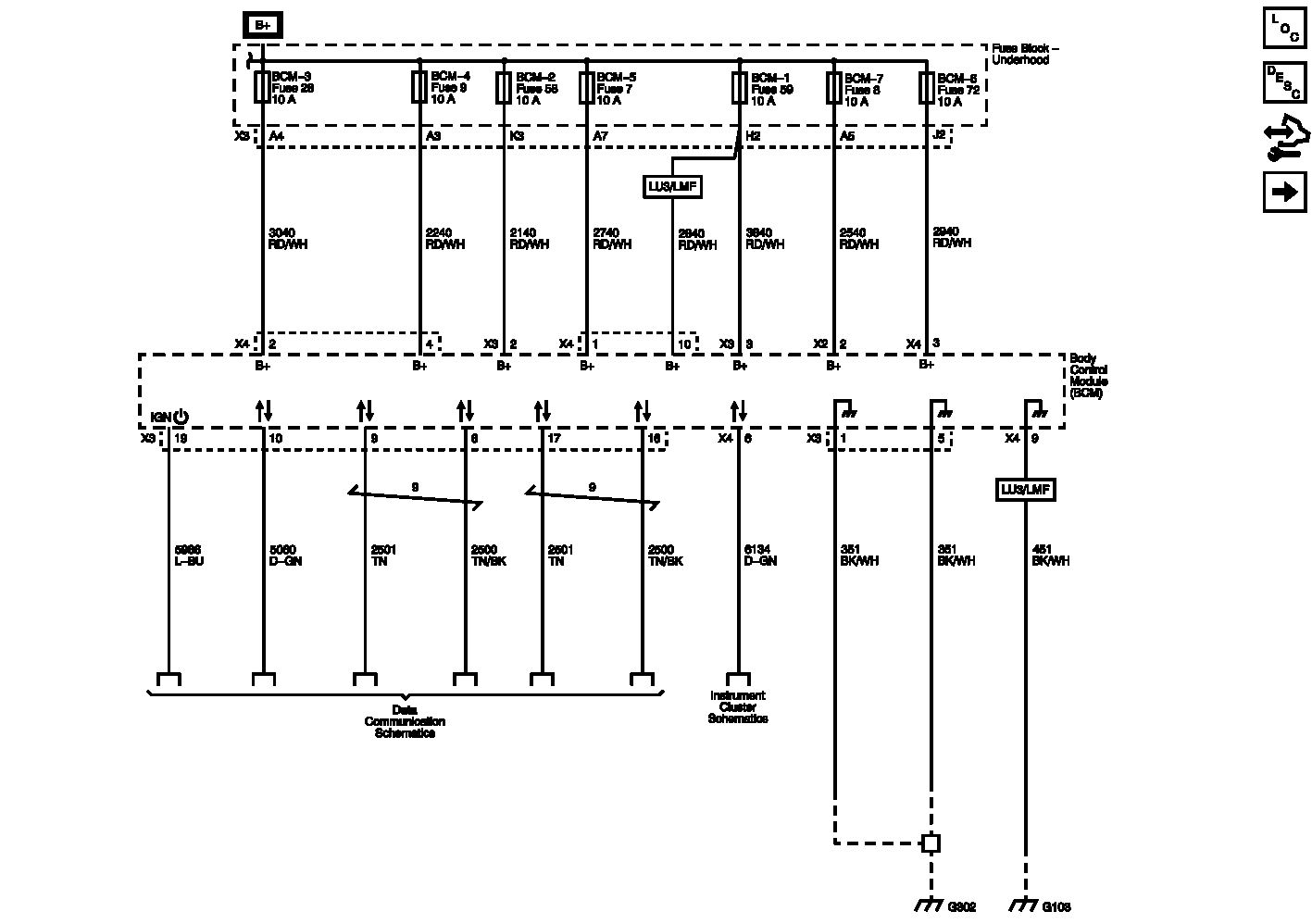

Home >> Chevrolet >> 2012 >> Chevy Express H1500, Van Cargo >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Schematics >> Body Control System Schematics >> BCM Power, Ground and Serial Data
