Removal Procedure

    Fig 1: Idler Arm To Relay Rod Retaining Nut
    GM828852Courtesy of GENERAL MOTORS COMPANY
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the idler arm to relay rod retaining nut.

    Discard the nut.

    3. Fig 2: Ball Joint Remover At Idler Arm From
    GM832356Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the idler arm from the relay rod using the J 43631 .

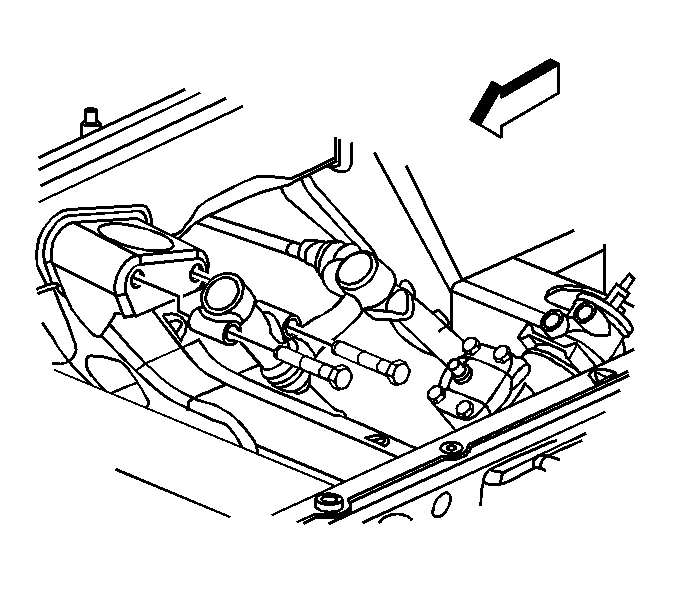

    4. Fig 3: Idler Arm To Frame Mounting Bolts
    GM828848Courtesy of GENERAL MOTORS COMPANY
  4. Remove the idler arm to frame mounting bolts.
  5. Remove the idler arm from the vehicle.
