Installation Procedure

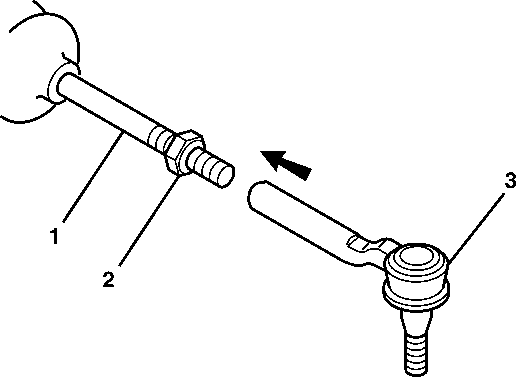

    Fig 1: Outer Tie Rod, Inner Tie Rod And Jam Nut
    GM470663Courtesy of GENERAL MOTORS COMPANY
  1. Connect the outer tie rod (3) to the inner tie rod (1). Do not tighten the jam nut (2).

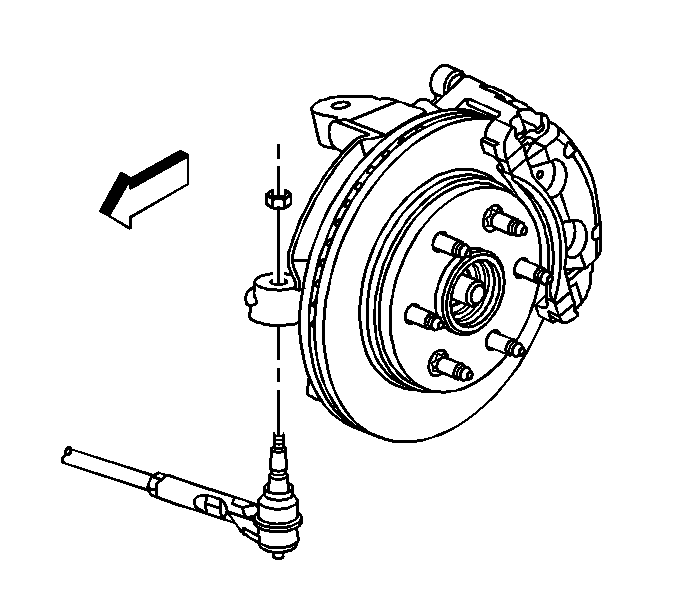

    2. Fig 2: Outer Tie Rod
    GM828821Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Connect the outer tie rod to the steering knuckle.
  3. Install the outer tie rod retaining nut and tighten to 63 N.m (47 lb ft).
    4. NOTE:

    Be sure the power steering gear boot is not twisted after the toe adjustment.

  4. Check the wheel alignment. Refer to Wheel Alignment Measurement .
