Catalytic Converter Heat Shield Replacement (3.0L-Rear)
Catalytic Converter Heat Shield Replacement (3.0L-Rear)

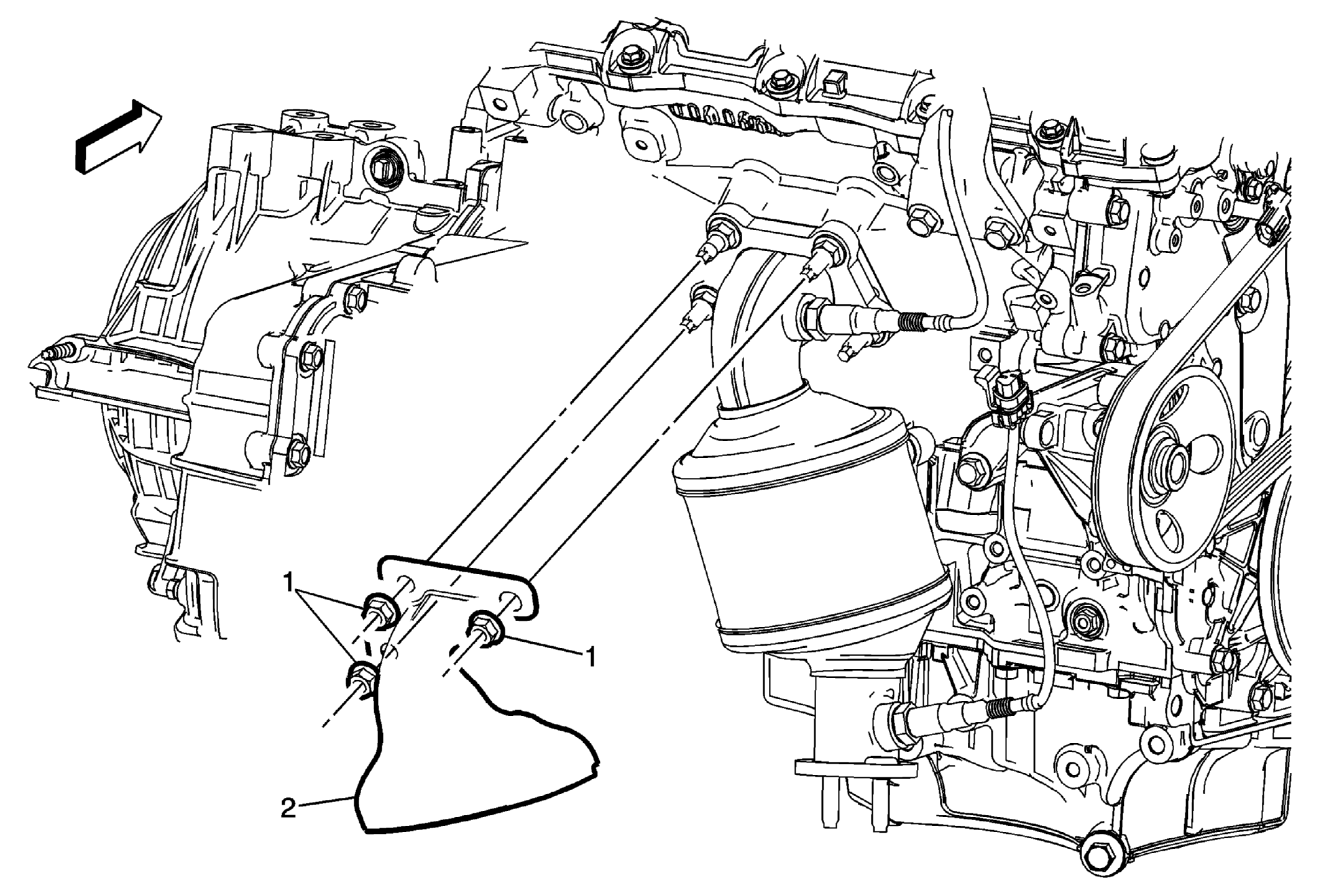

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Catalytic Converter Heat Shield Nuts (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 22 (16 lb ft) |
| 2 | Catalytic Converter Heat Shield-Right |
