Battery Tray Replacement

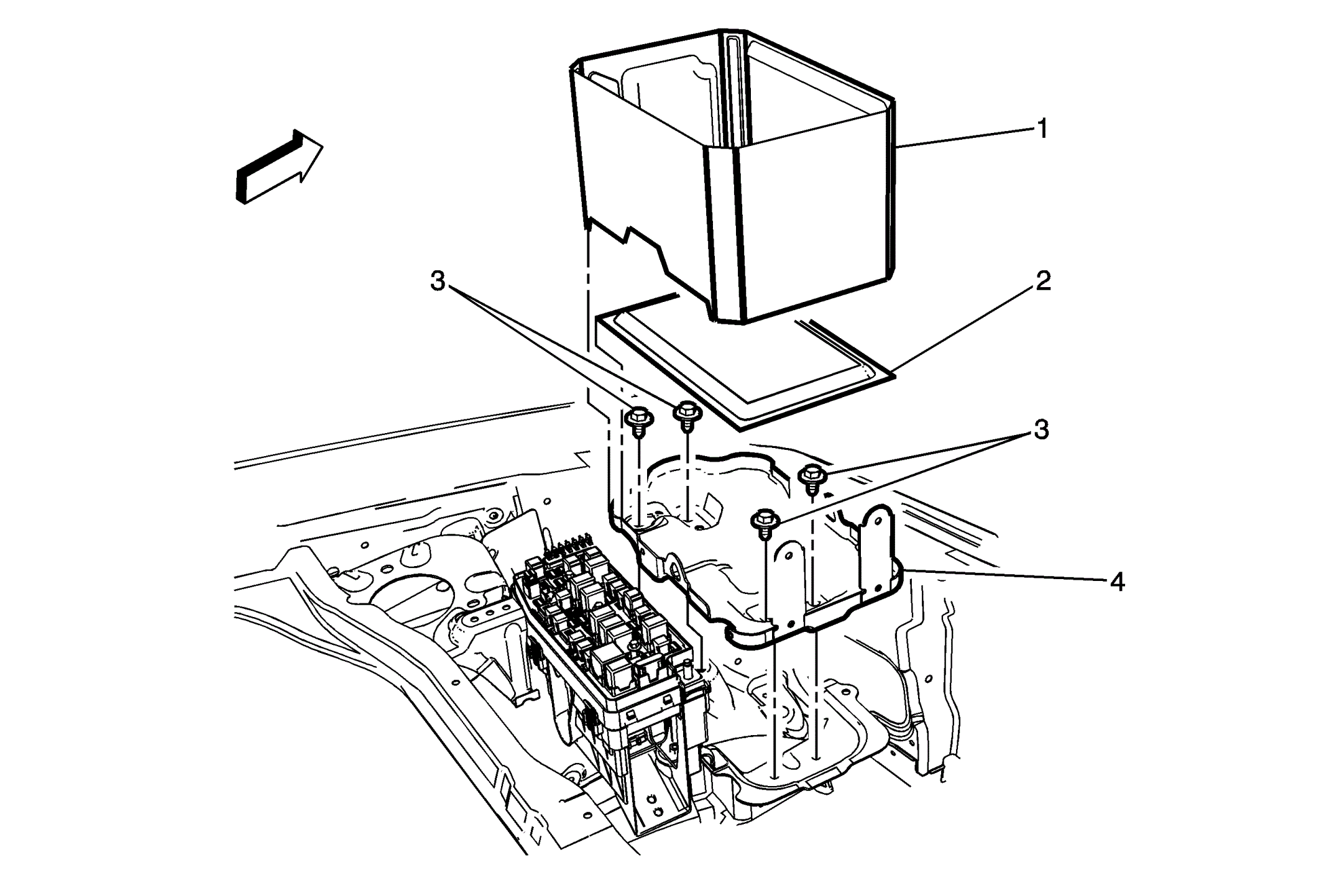

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Remove the battery. Refer to Battery Replacement . Remove the engine control module. Refer to Engine Control Module Replacement
1	Battery Cover
2	Battery Heat Shield
3	Battery Tray Bolts (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 15 N.m(11 lb ft)
4	Battery Tray
