Throttle Inlet Absolute Pressure Sensor Replacement
Throttle Inlet Absolute Pressure Sensor Replacement

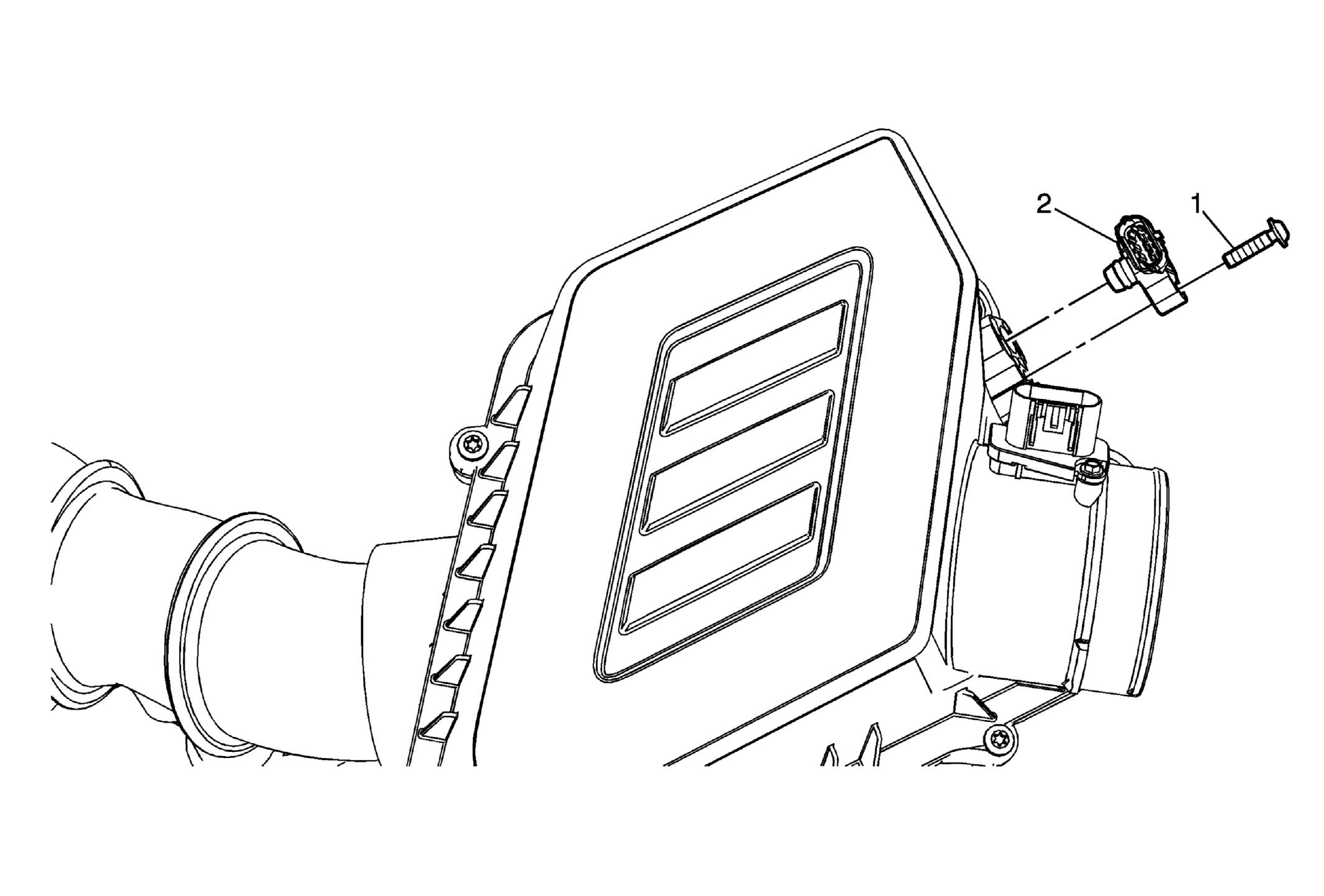

| Callout | Component Name |
|---|---|
| 1 | Throttle Inlet Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Throttle Inlet Absolute Pressure Sensor Procedure Disconnect the electrical connector. |
