Serial Data Communications Enable and Accessory Wake Up

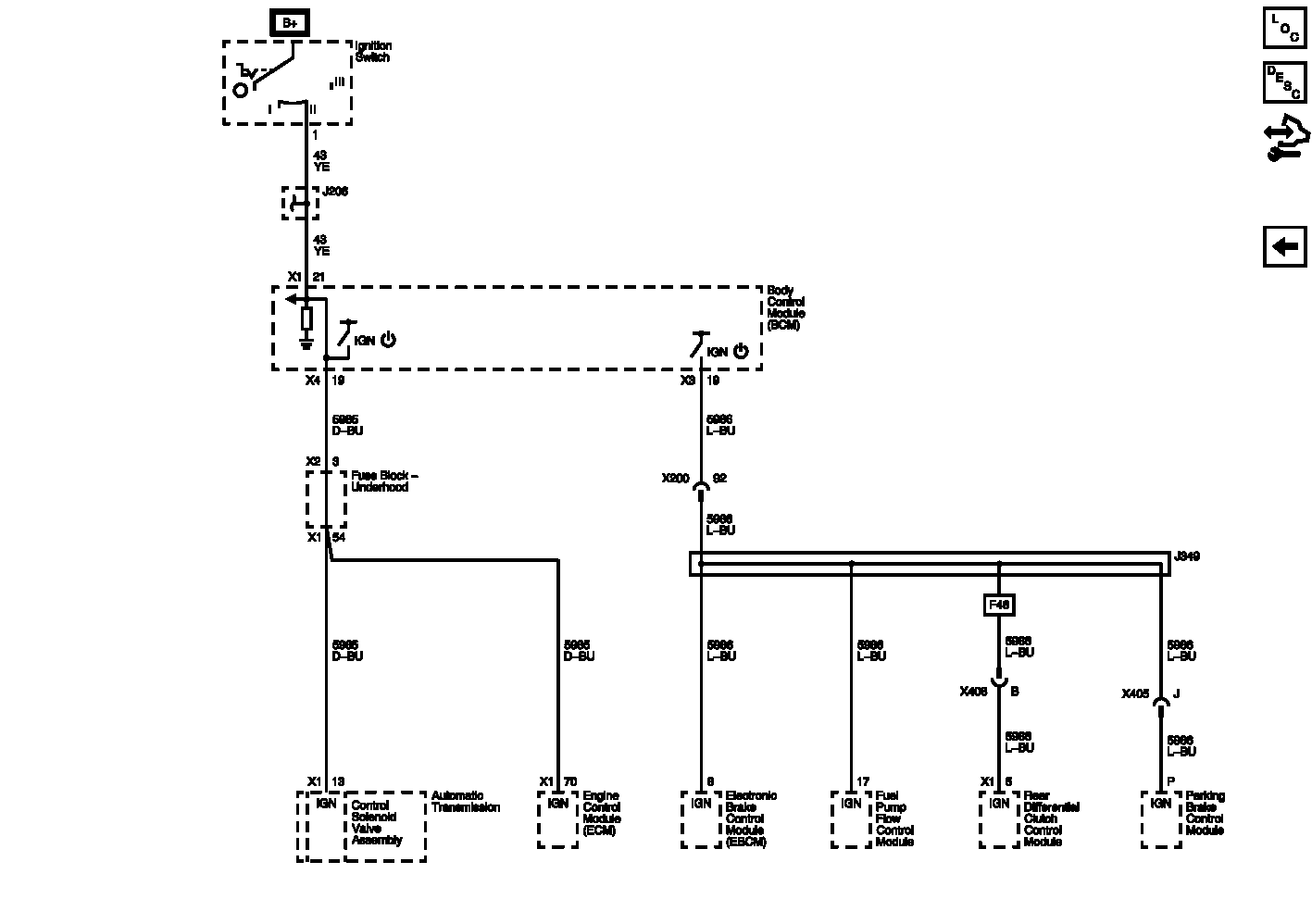

Fig 1: Serial Data Communications Enable and Accessory Wake Up Wiring Schematic

GM2564632

Courtesy of GENERAL MOTORS COMPANY
