Air Cleaner Outlet Duct Replacement

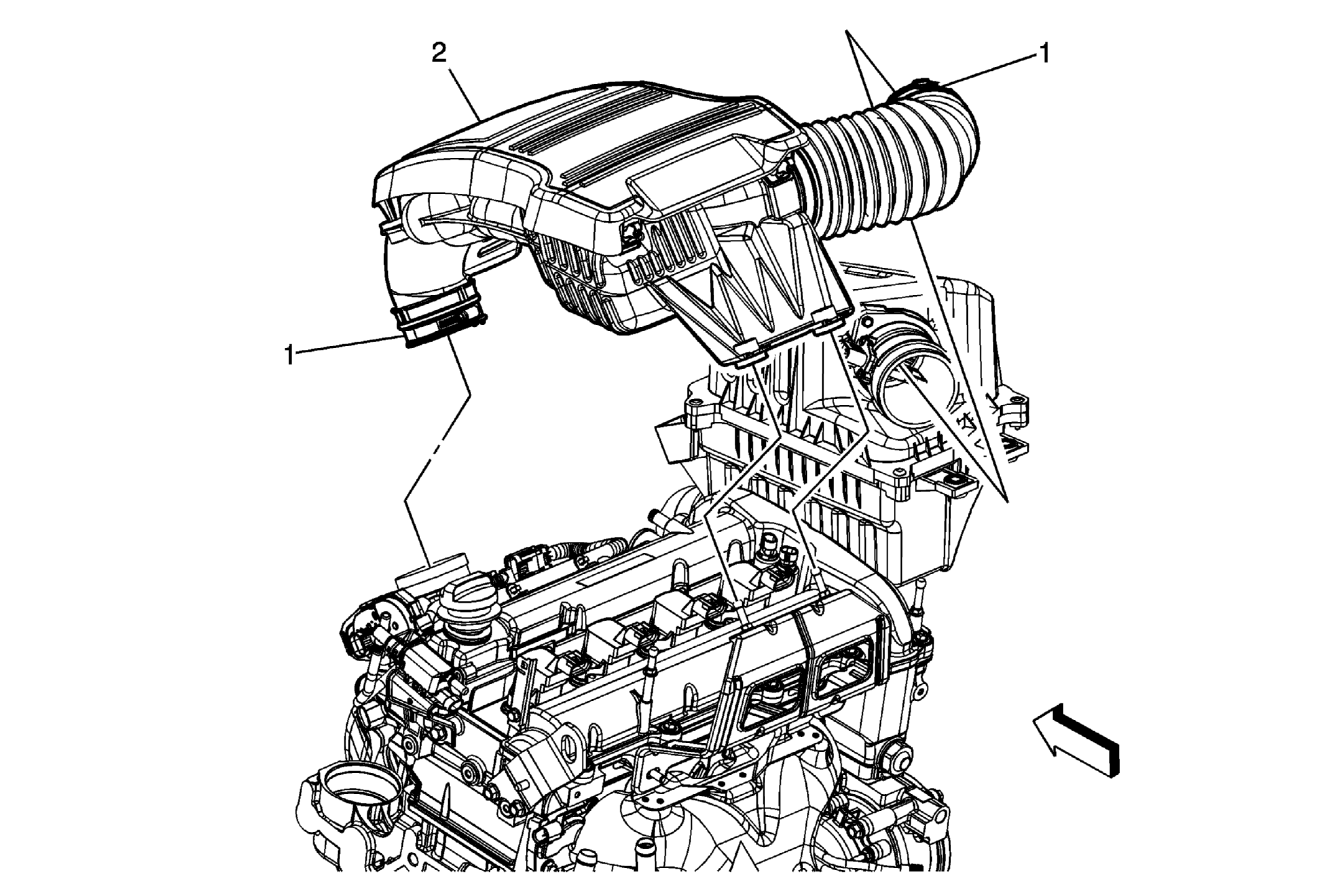

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Air Cleaner Outlet Duct Procedure Disengage the positive crankcase valve tube. Pull the air cleaner outlet duct assembly upwards to disengage it from the air cleaner bracket studs.

Callout

Component Name

Air Cleaner Outlet Duct Clamp (Qty: 2)

CAUTION:

Tighten
3 N.m (27 lb in)

Air Cleaner Outlet Duct

Procedure

Disengage the positive crankcase valve tube.
Pull the air cleaner outlet duct assembly upwards to disengage it from the air cleaner bracket studs.
