Air Cleaner Element Replacement
Air Cleaner Element Replacement

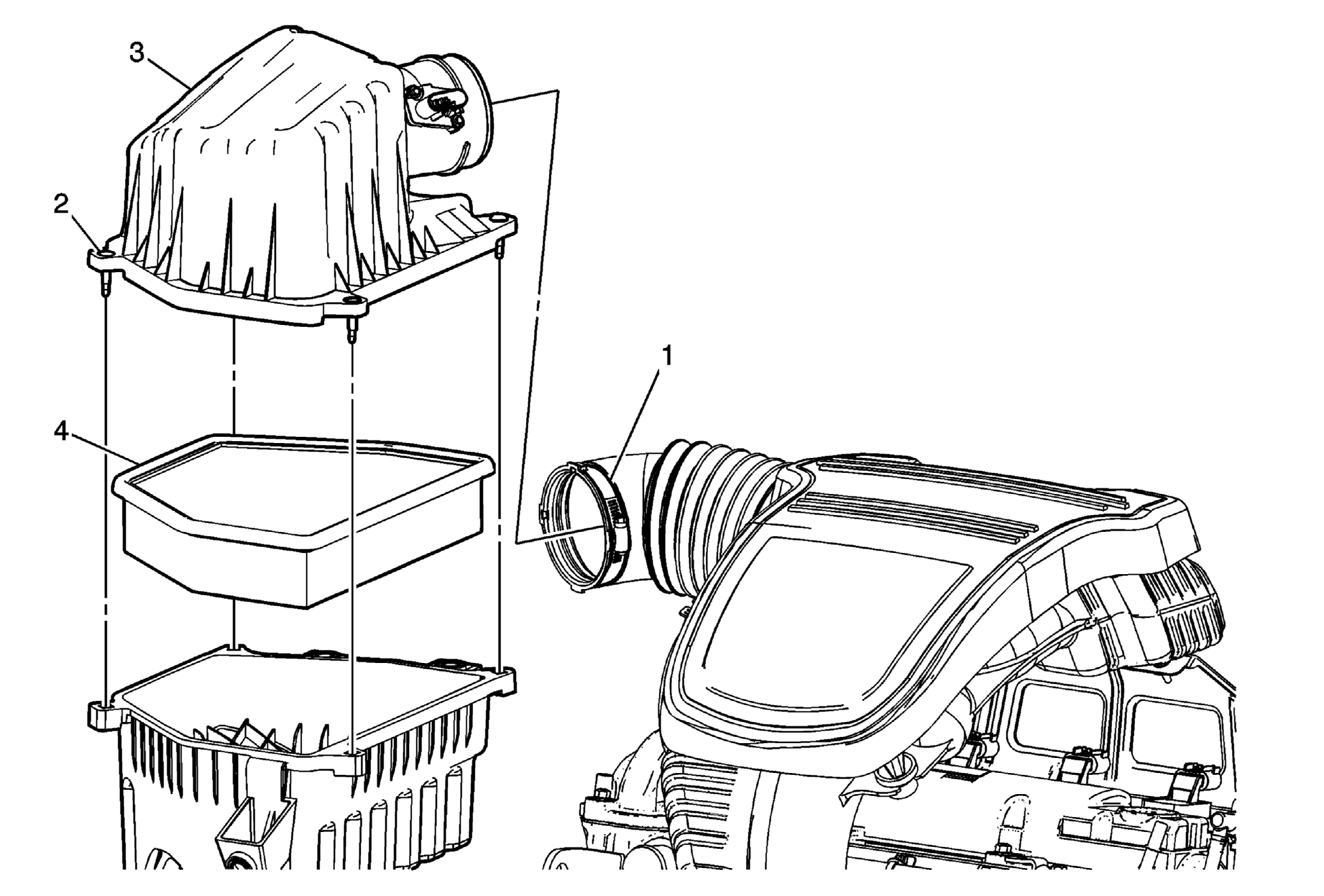

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Air Cleaner Assembly Upper Housing Screw (Qty: 4) Tighten 3 N.m (27 lb in) |
| 3 | Air Cleaner Assembly Upper Housing Procedure Disconnect the MAF/IAT Sensor Electrical Connector. |
| 4 | Air Cleaner Element |
