Exhaust Heat Shield Replacement

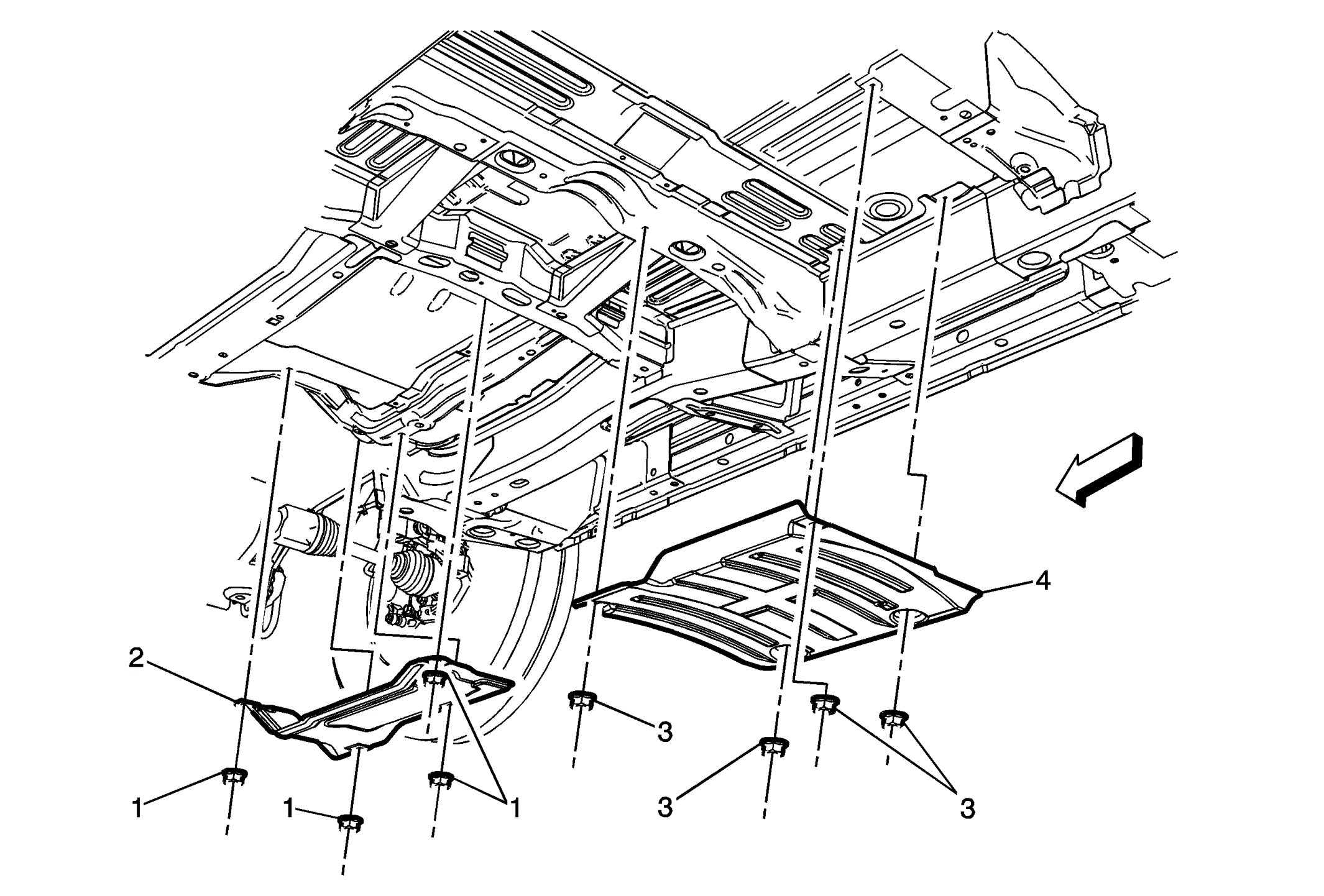

Fig 1: Exhaust Heat Shield
GM2465586Courtesy of GENERAL MOTORS COMPANY
Exhaust Heat Shield Replacement

Callout Component Name
WARNING:

Refer to Hot Exhaust System Warning .

Preliminary Procedures Raise and Support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Catalytic Converter Heat Shield Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Catalytic Converter Heat Shield
3 Exhaust Muffler Front Heat Shield Nut (Qty: 4)
Tighten
22 N.m (16 lb ft)
4 Exhaust Muffler Front Heat Shield
