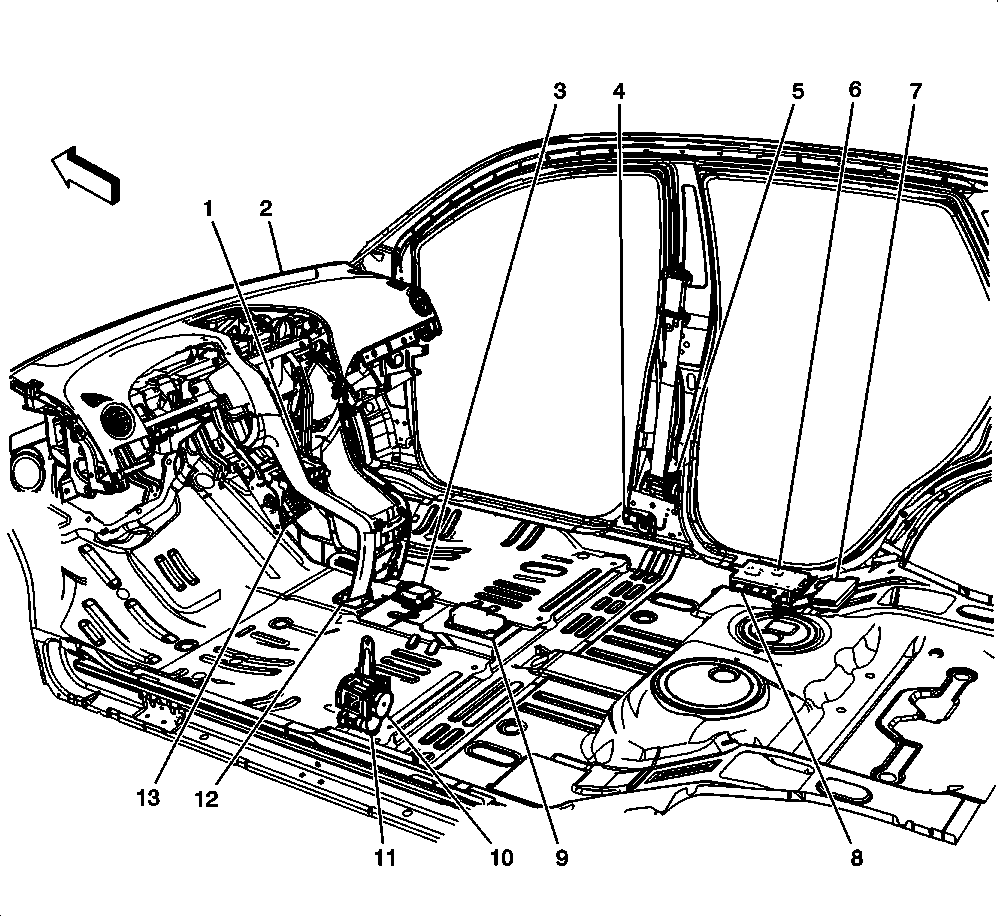

Passenger Compartment Components
Passenger Compartment Components
| Component Name | Callout |
|---|---|
| Body Control Module (BCM) | 1 |
| Instrument Panel | 2 |
| Yaw and Lateral Accelerometer Sensor | 3 |
| Inflatable Restraint Side Impact Sensor (SIS) - Right | 4 |
| Seat Belt Retractor Pretensioner and Tension Sensor - Right | 5 |
| Vehicle Communications Interface Module (VCIM) (UE1) | 6 |
| Vehicle Communications Interface Module (VCIM) Battery (UE1) | 7 |
| Wireless Communications Interface Antenna (UPF) (Bluetooth) | 8 |
| Inflatable Restraint Sensing and Diagnostic Module (SDM) | 9 |
| Seat Belt Retractor Pretensioner - Left | 10 |
| Inflatable Restraint Side Impact Sensor (SIS) - Left | 11 |
| Inflatable Restraint Vehicle Rollover Sensor | 12 |
| Fuse Block - I/P | 13 |
