Module Power, Ground, Serial Data, and Instrument Panel Display

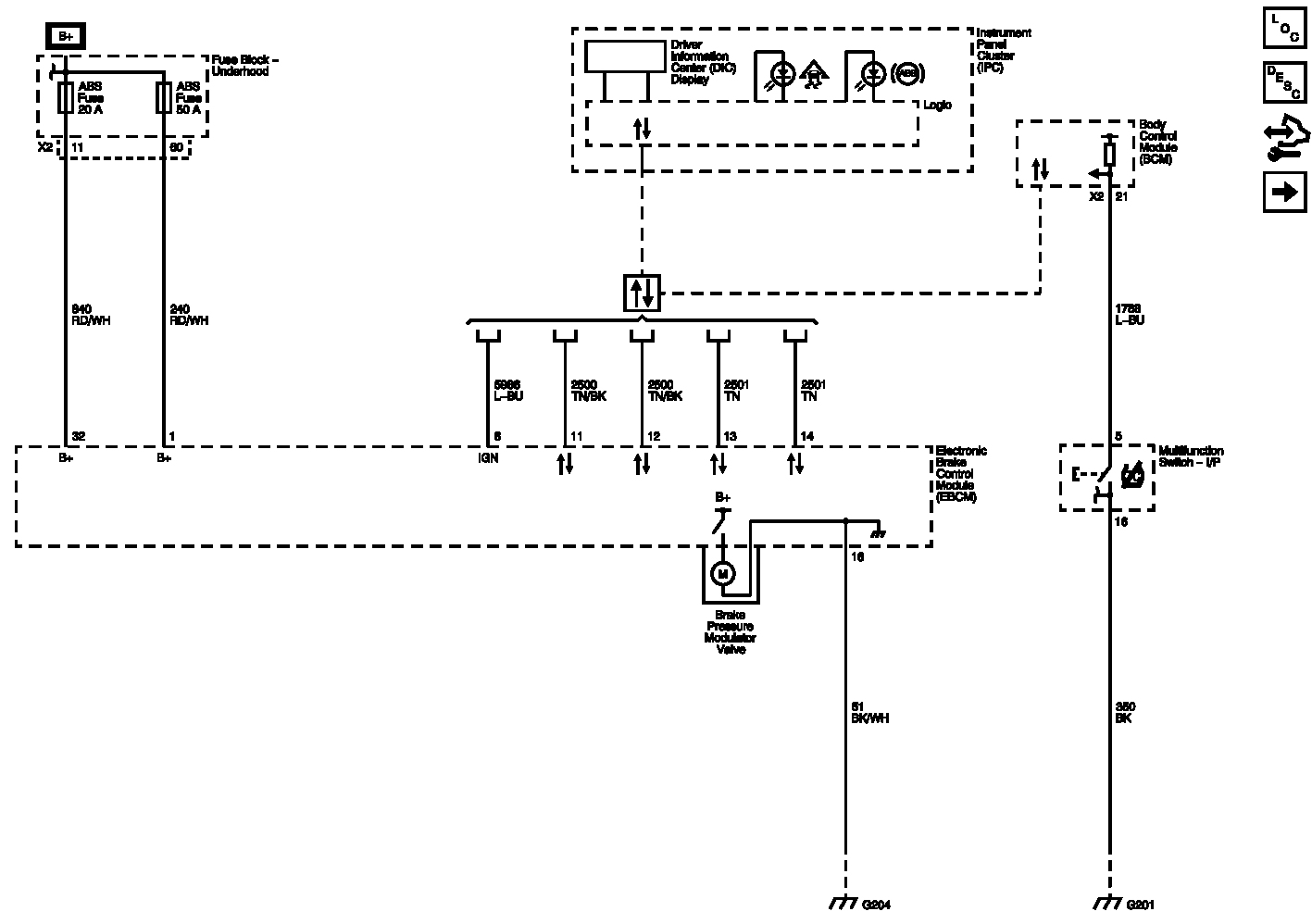

Fig 1: Module Power, Ground, Serial Data, and Instrument Panel Display Wiring Schematic

GM2564256

Courtesy of GENERAL MOTORS COMPANY
