Section 180 (HVAC System - Automatic)
>>
Specifications
>>
Sensor Resistance Table
>>
Compressor ECVD- Current/Suction Pressure Comparison
Compressor ECVD- Current/Suction Pressure Comparison
WARNING:
This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

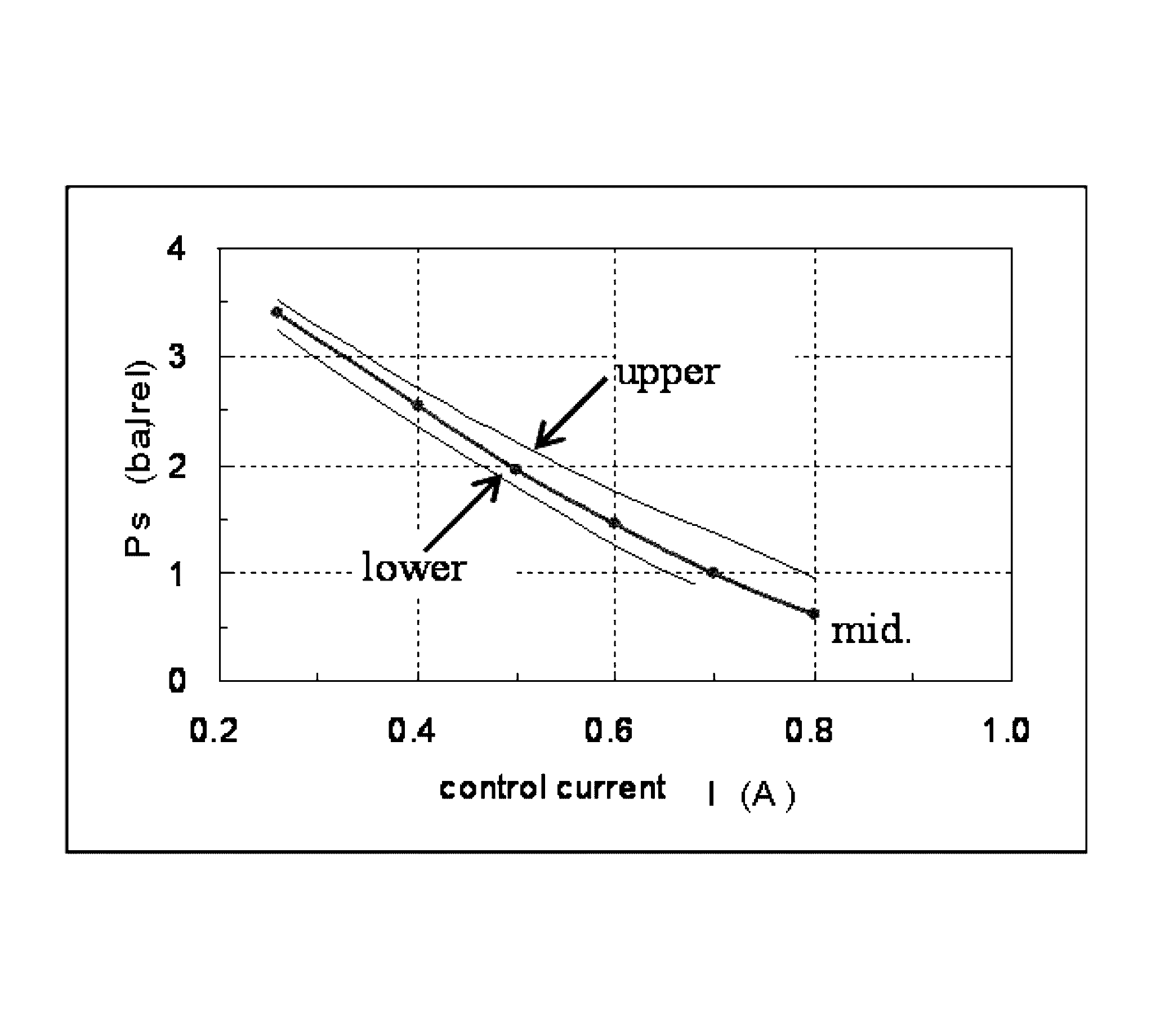

Fig 1: Compressor ECVD- Current/Suction Pressure Comparison Graph
Courtesy of GENERAL MOTORS CORP.
