Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

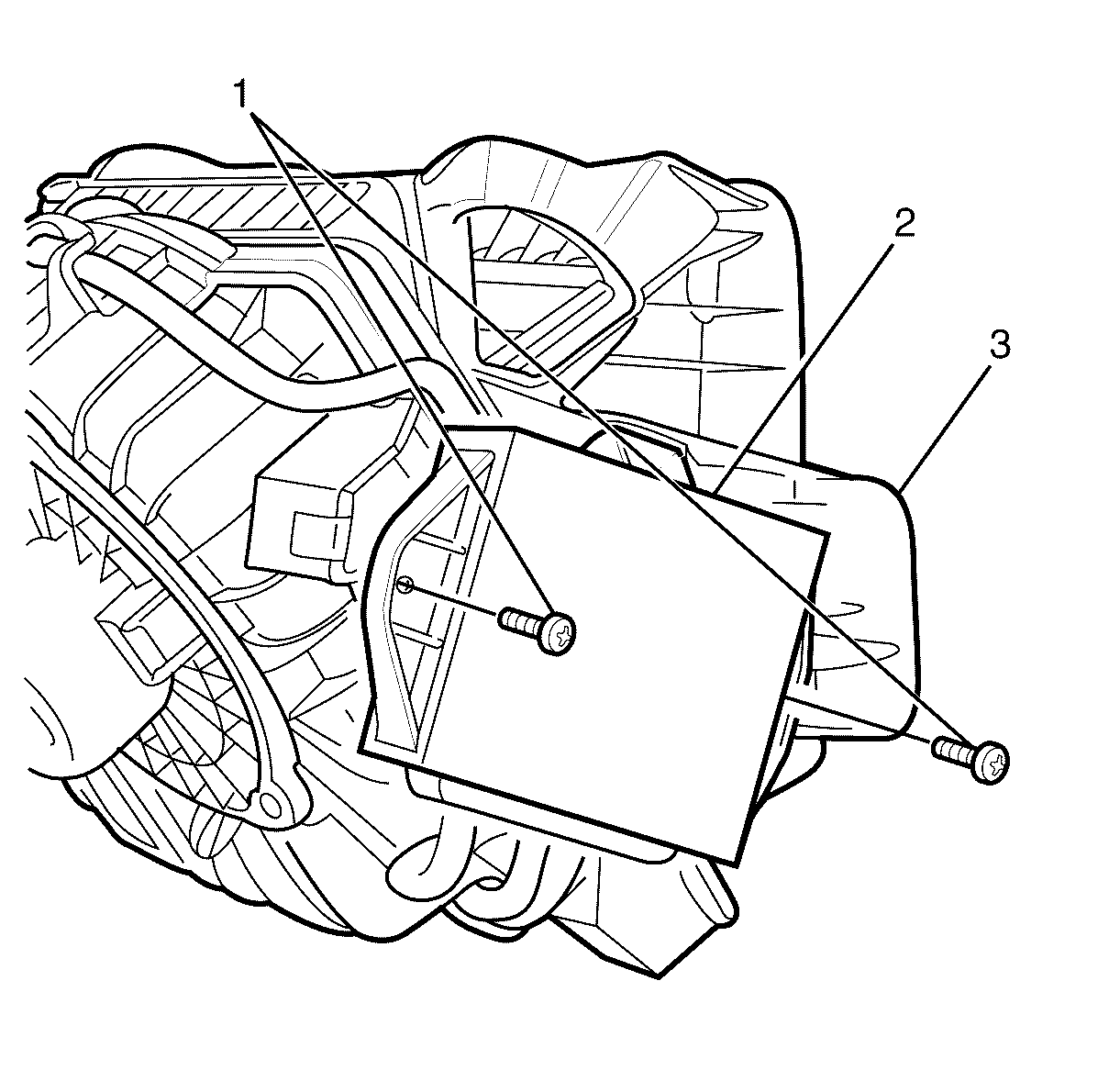

    Fig 1: Identifying HVAC Control Module & HVAC Module Assembly Retaining Screws
    GM2043973Courtesy of GENERAL MOTORS CORP.
  1. Install the HVAC control module (2) to the HVAC module assembly (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the HVAC control module to HVAC module assembly retaining screws (1) and tighten to 2 N.m (18 lb in).

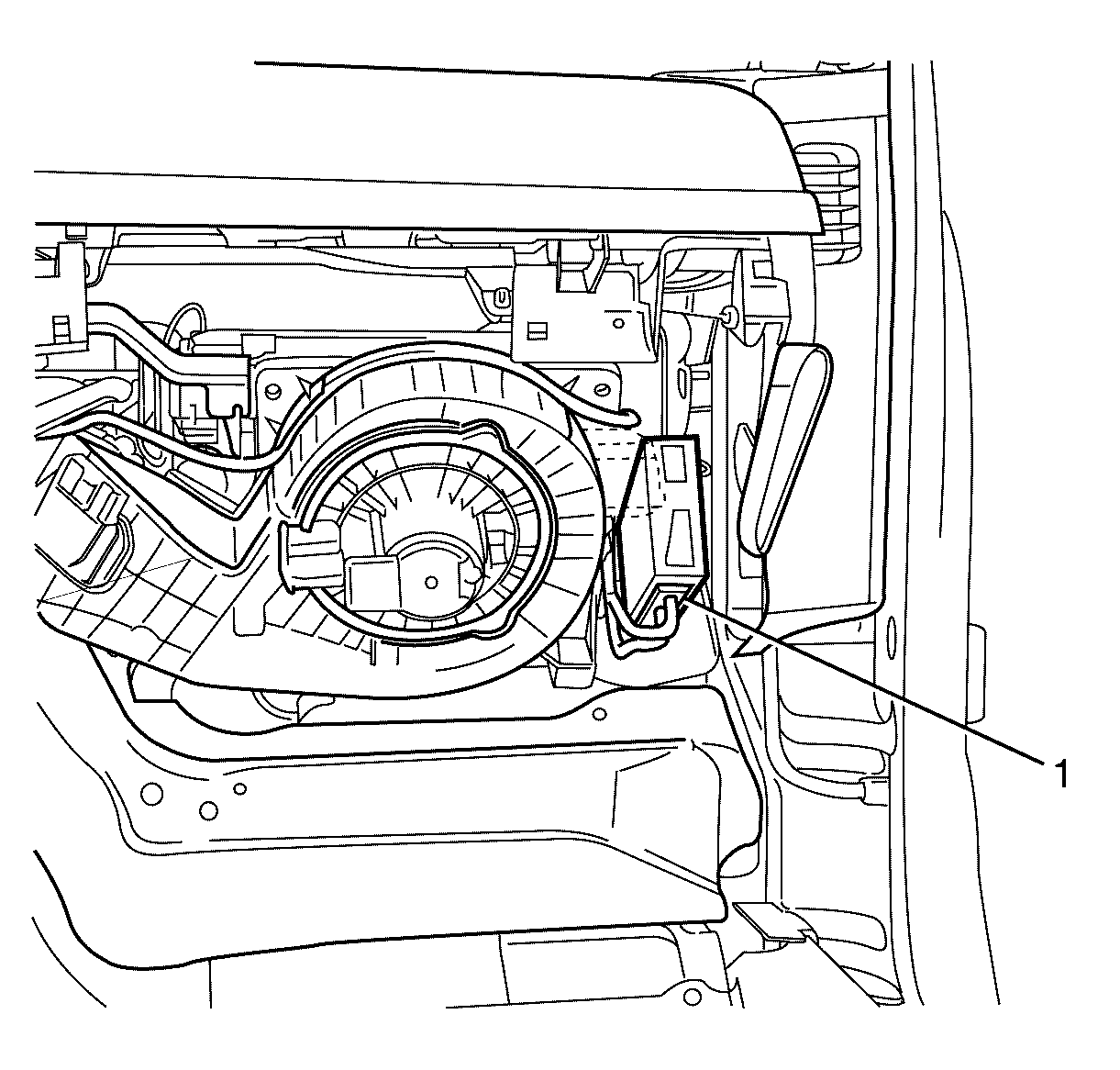

    3. Fig 2: Identifying HVAC Control Module Electrical Connectors
    GM2043970Courtesy of GENERAL MOTORS CORP.
  3. Connect the HVAC control module electrical connectors (1).
  4. Install the right hand hinge panel. Refer to Body Hinge Pillar Trim Panel Replacement .
  5. Install the right side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (LHD) .
  6. Install the close out panel, if equipped. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  7. Perform HVAC system relearn. Refer to HVAC System Control Module Programming and Setup .
