Rear Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

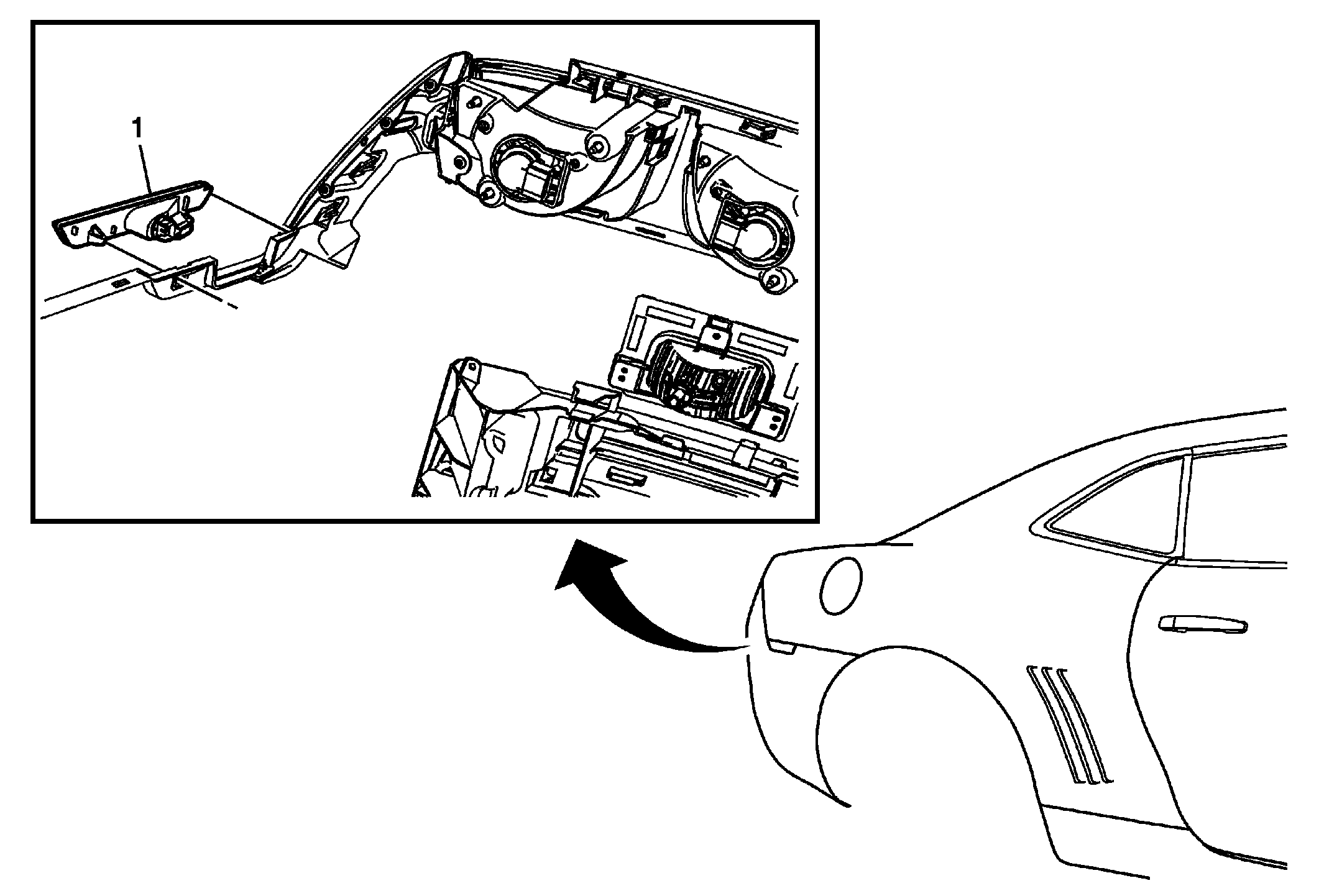

Fig 1: Rear Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Side Marker Lamp Procedure Depress the forward locking tab rearward on the lamp assembly. Rotate the forward edge outward from the rear bumper fascia. Pull the lamp slightly forward to release the tab. Disconnect the rear side marker lamp socket from the rear side marker lamp assembly.

Callout

Component Name

Preliminary Procedure:
Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .

Rear Side Marker Lamp

Procedure

Depress the forward locking tab rearward on the lamp assembly.
Rotate the forward edge outward from the rear bumper fascia.
Pull the lamp slightly forward to release the tab.
Disconnect the rear side marker lamp socket from the rear side marker lamp assembly.
