Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

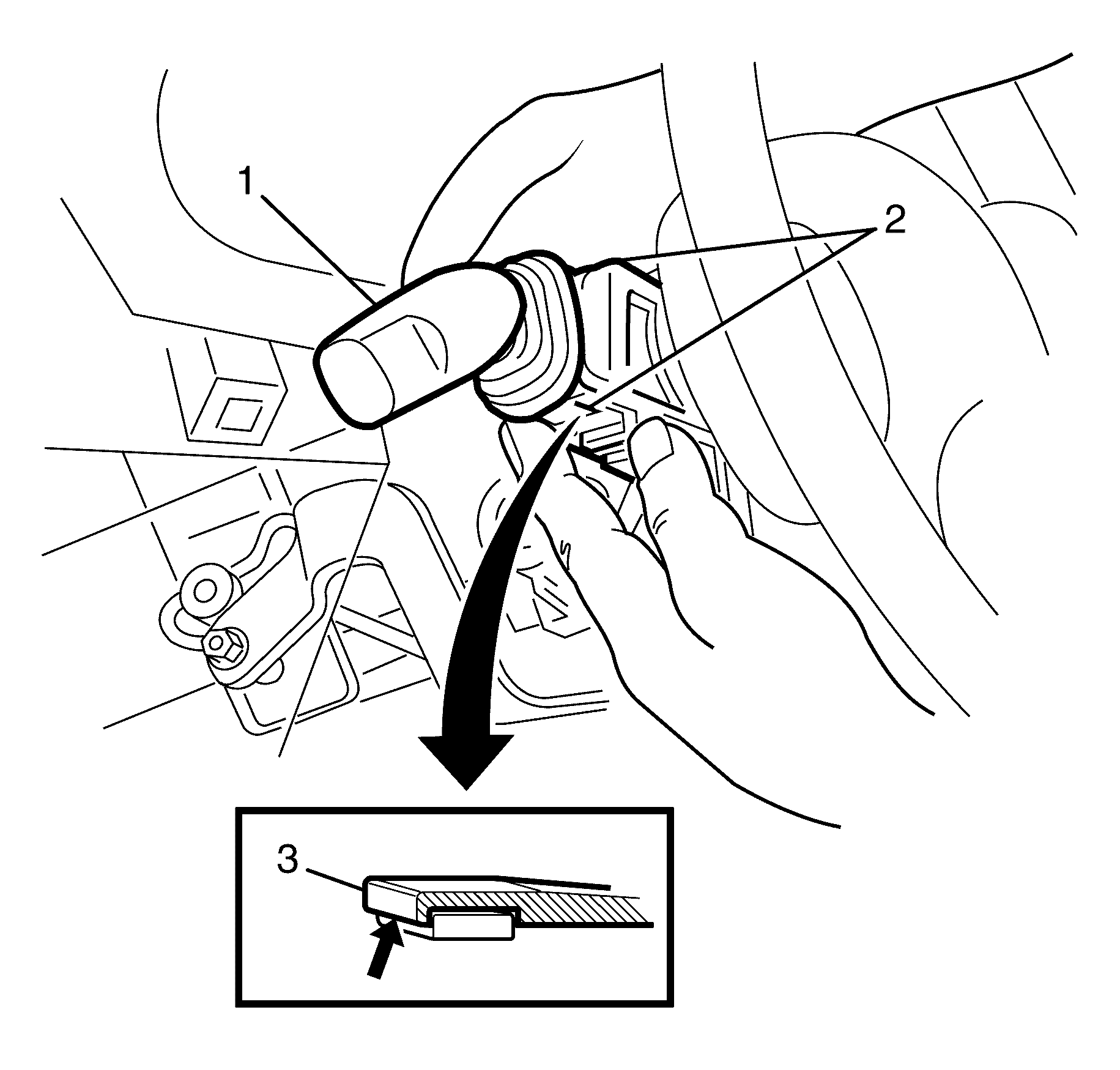

    Fig 1: Turn Signal Switch
    GM1947048Courtesy of GENERAL MOTORS CORP.
  1. Install the new turn signal switch (1) and push the switch into position until the retaining tabs (2) seat with an audible click.

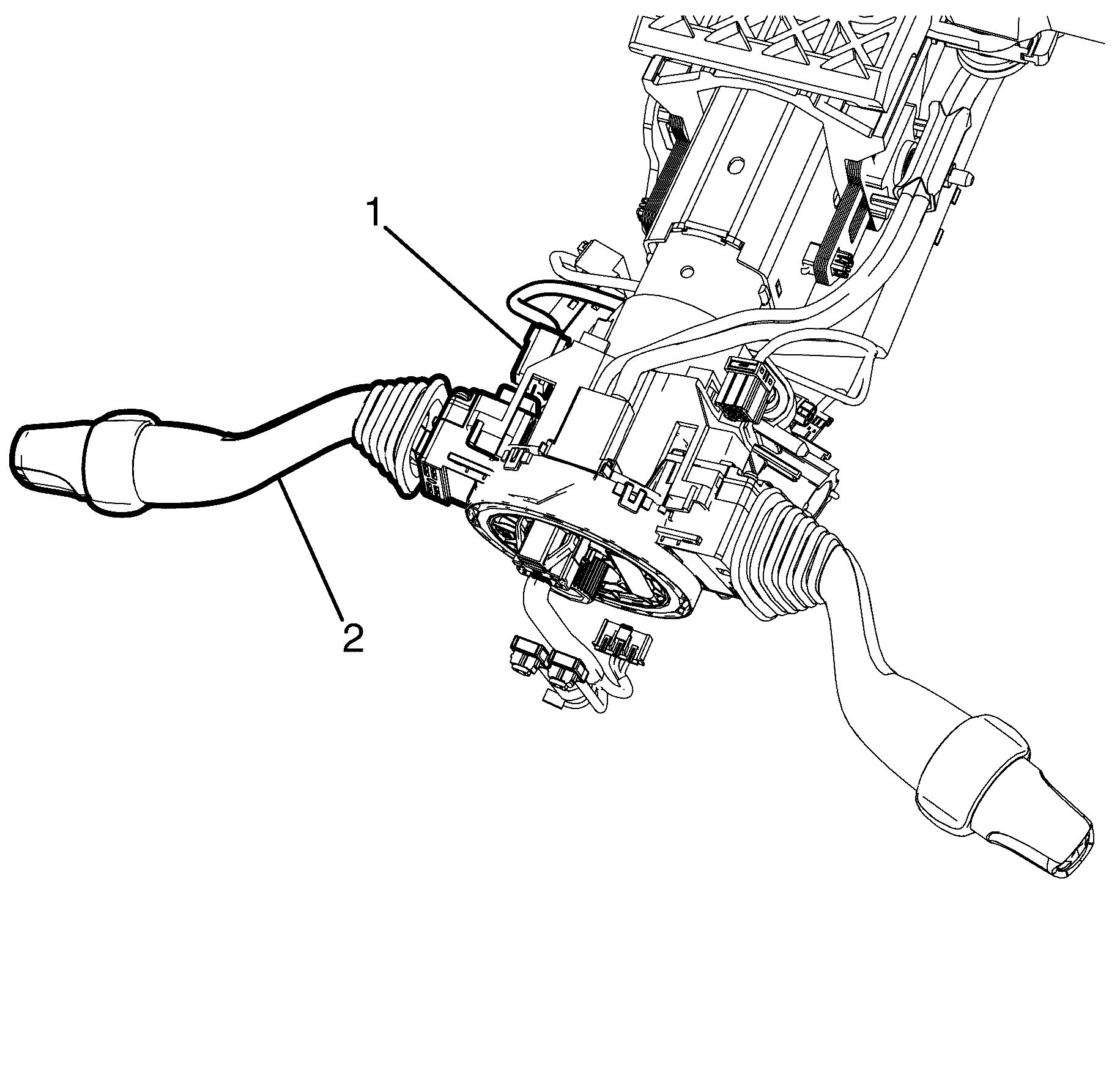

    2. Fig 2: Electrical Connector
    GM1947050Courtesy of GENERAL MOTORS CORP.
  2. Connect the turn signal switch (2) electrical connectors (1).
  3. Install the upper and lower steering column trim covers. Refer to Steering Column Trim Cover Replacement .
  4. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  5. Check all vehicle lights for correct operation.
