Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

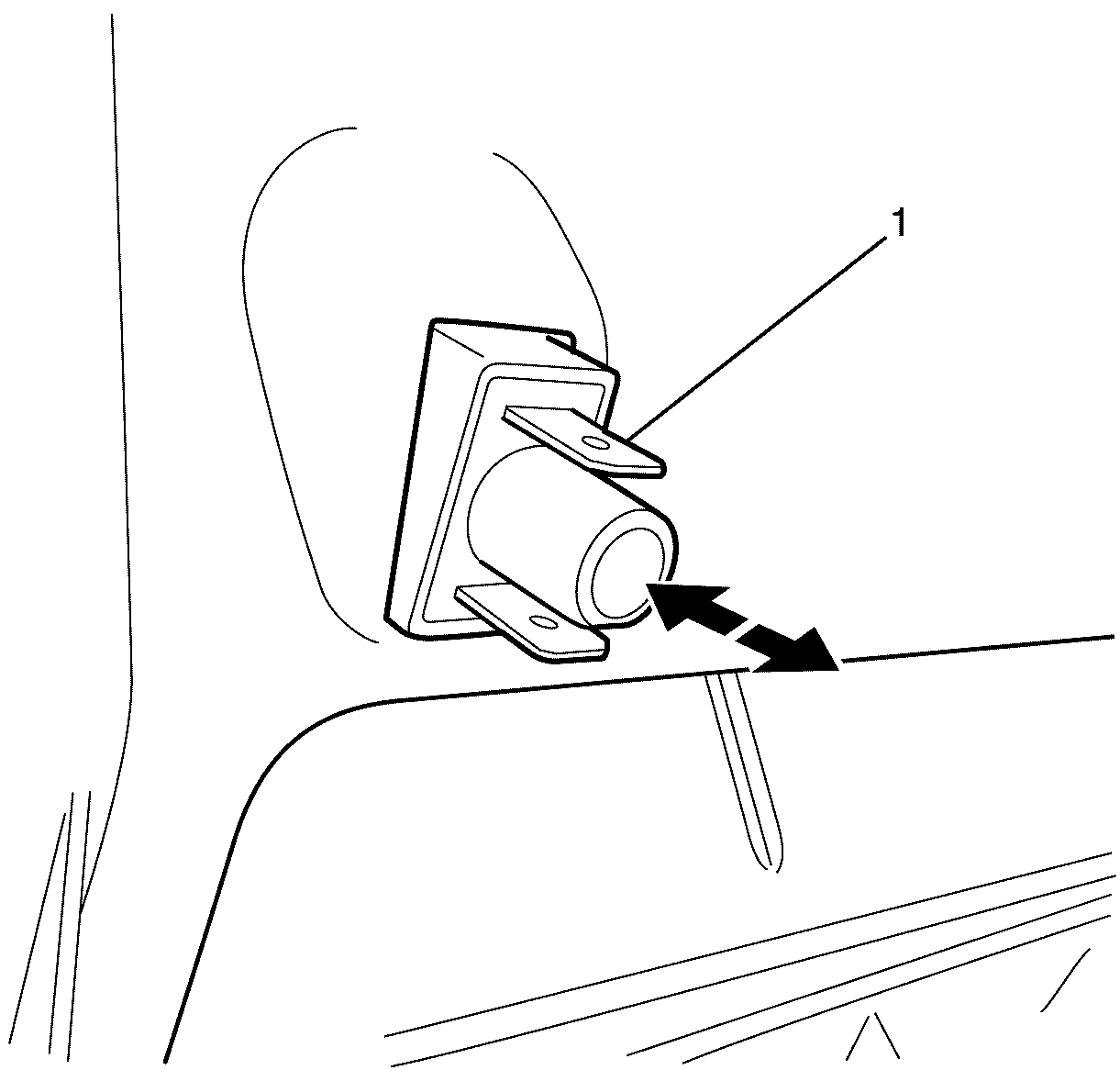

    Fig 1: Instrument Panel Compartment Lamp Switch
    GM2284291Courtesy of GENERAL MOTORS CORP.
  1. Install the instrument panel compartment lamp switch (1), listen for an audible click to confirm fitting.
  2. Close the instrument panel compartment.

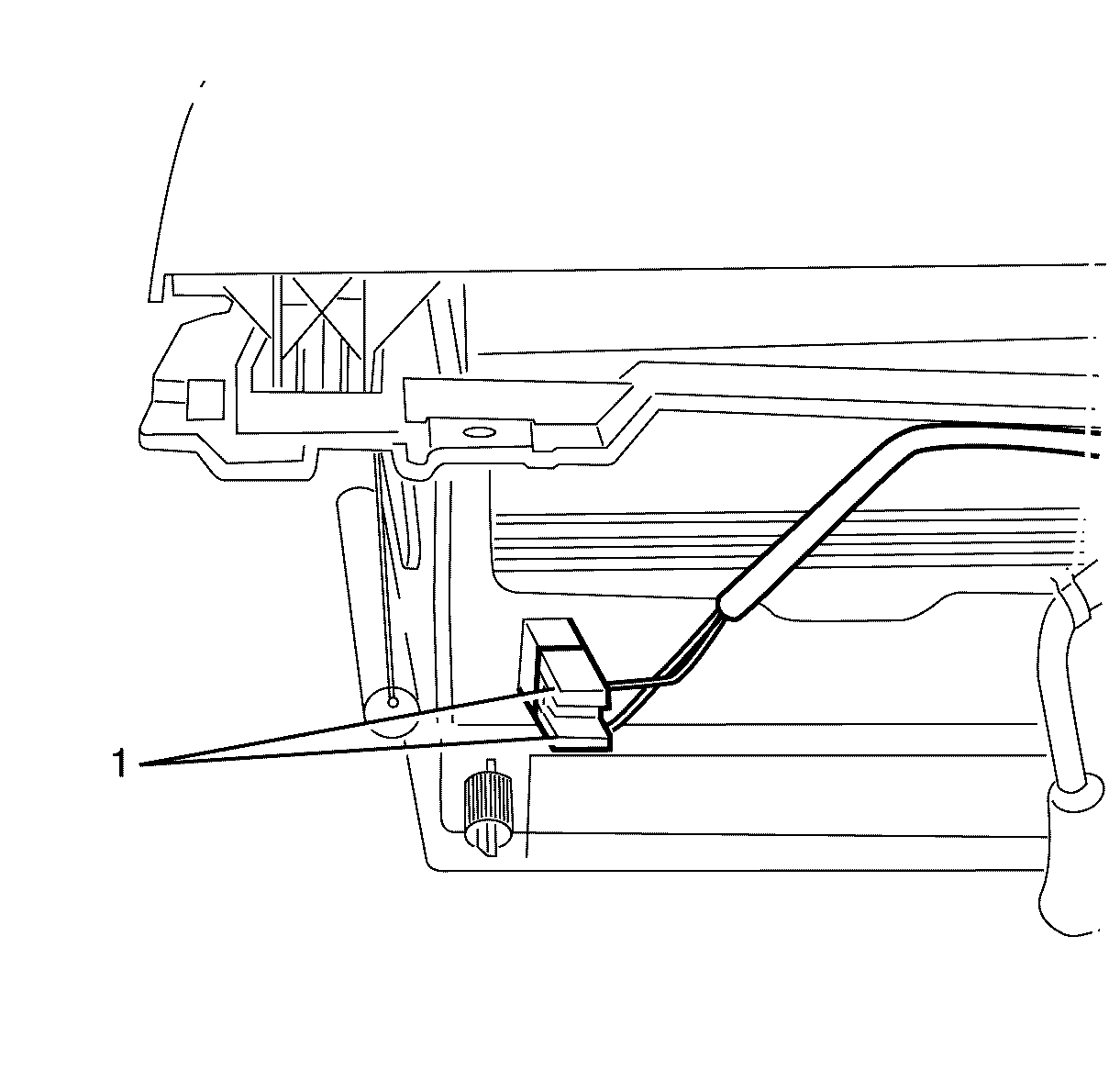

    3. Fig 2: Electrical Connectors
    GM2284290Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (1) to the instrument panel compartment lamp switch.

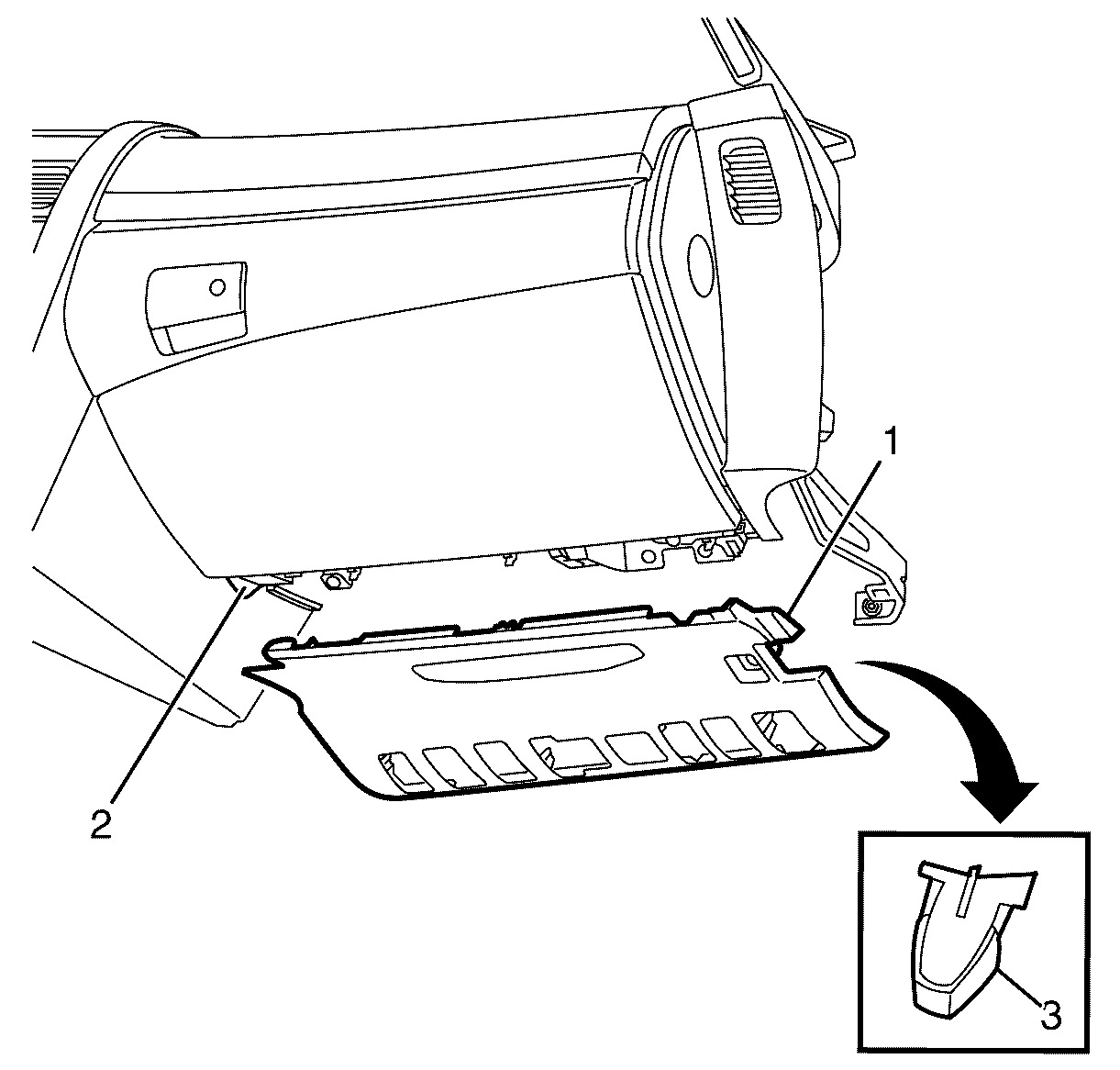

    4. Fig 3: Left Instrument Panel Lower Trim Plate
    GM2277310Courtesy of GENERAL MOTORS CORP.
  4. Install the left instrument panel lower trim plate (1) by engaging the instrument panel lower trim plate retaining clips (2,3).
  5. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  6. Test the operation of the instrument panel compartment lamp switch.
