Installation Procedure
WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the headlamp switch electrical connector.

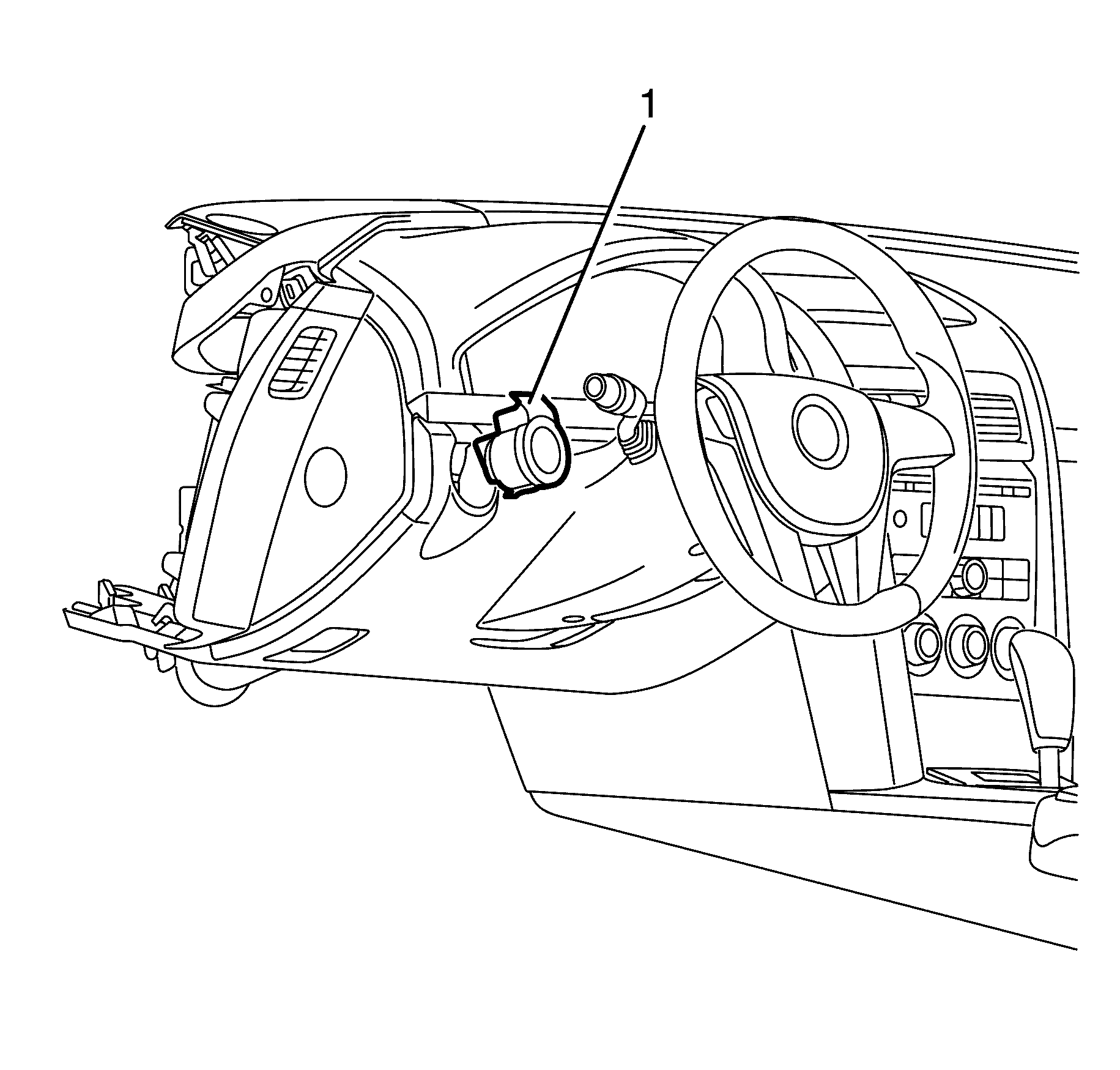

- Install the headlamp switch (1) to the I/P trim pad.
- Install the knee bolster. Refer to Knee Bolster Replacement
- Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
- Check all vehicle lights for correct operation.
