Front Position Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

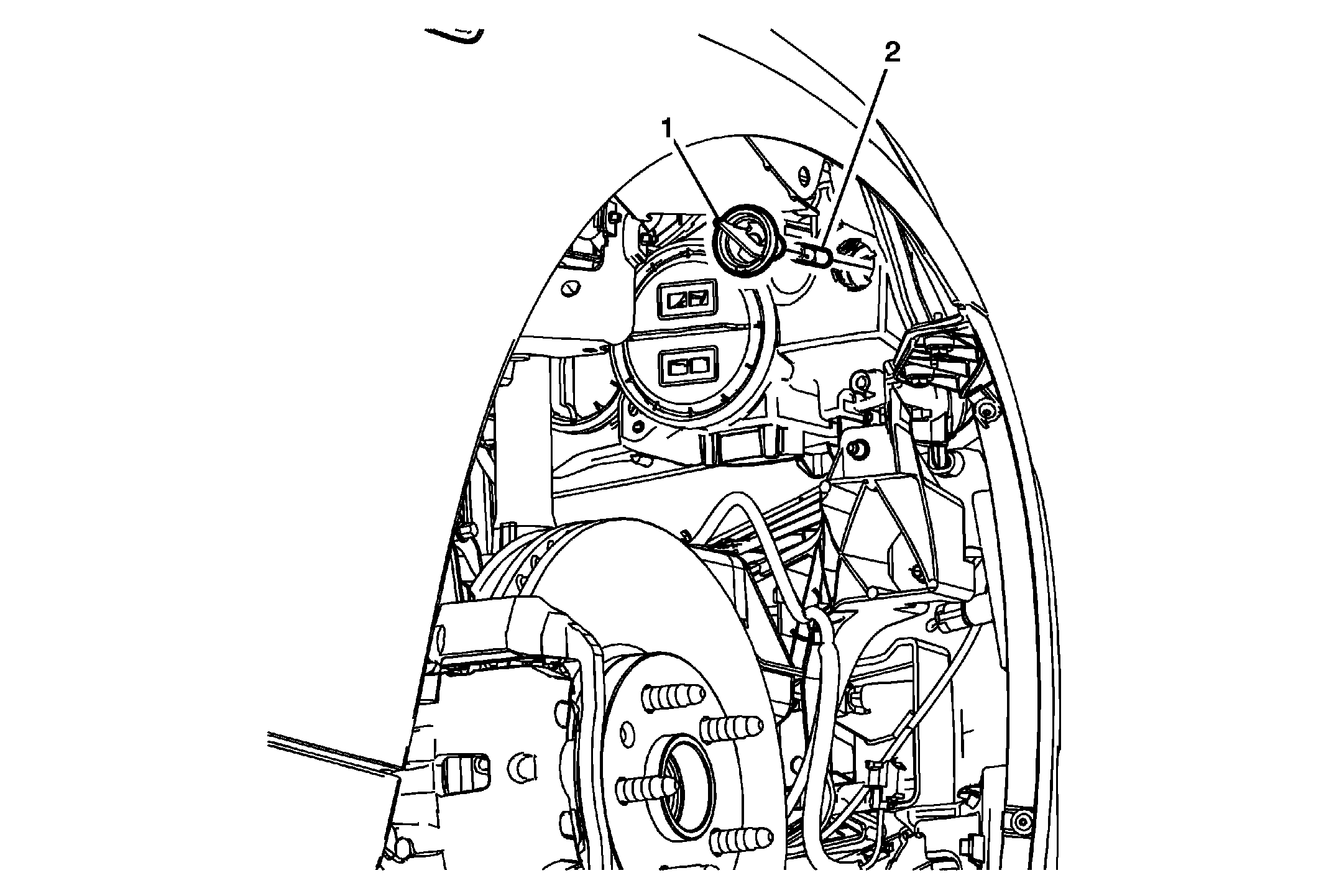

Fig 1: Front Position Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right front wheelhouse liner in order to access the front position lamp bulb. Refer to Front Wheelhouse Liner Replacement .
1	Front Position Bulb Socket Procedure Reach in the wheelhouse and turn the headlamp bulb socket a quarter turn counter-clockwise and remove.
2	Front Position Lamp Bulb Procedure Rotate and pull the position lamp bulb from the position lamp electrical socket.
