Generator Bracket Replacement (LFX)

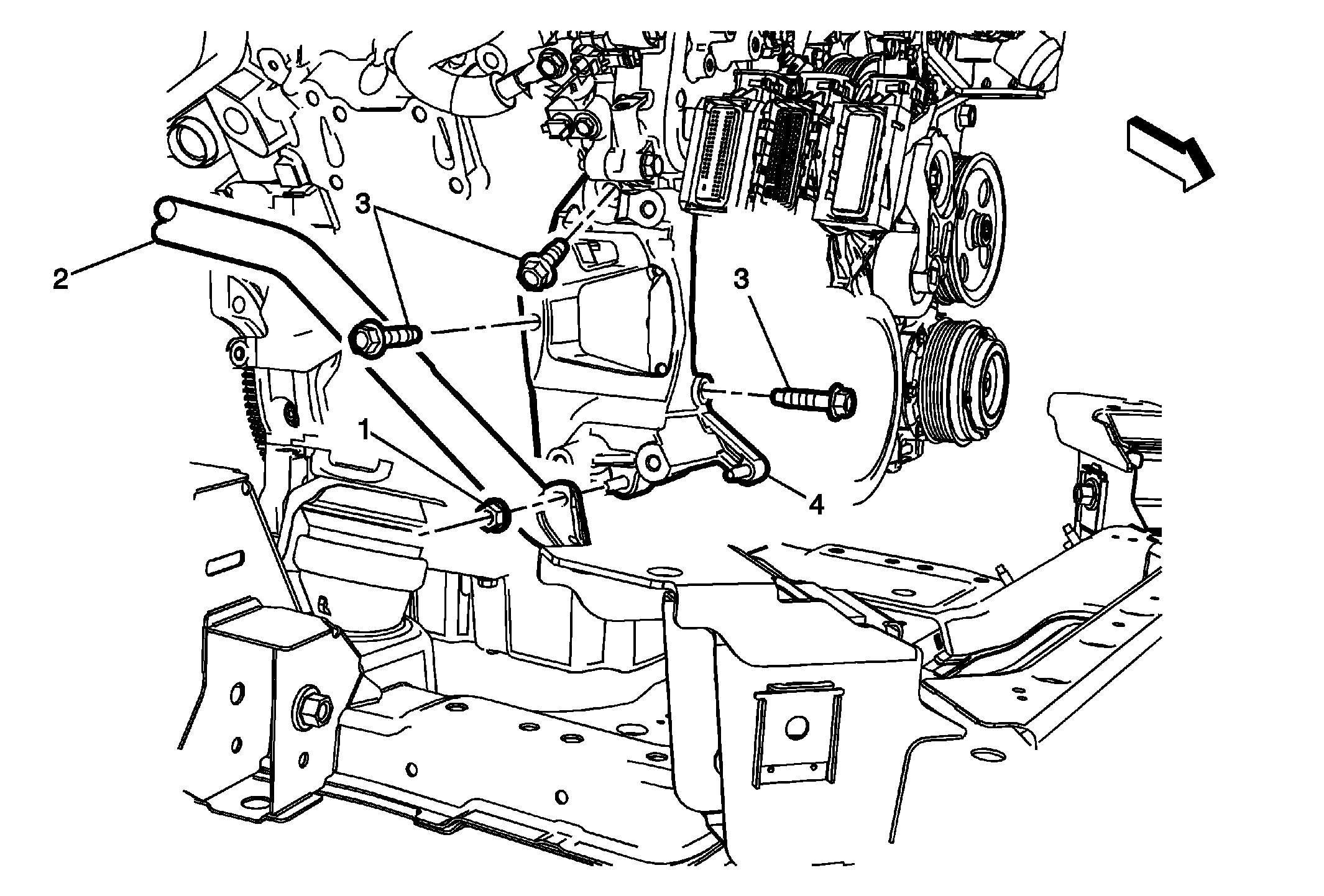

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the generator. Refer to Generator Replacement (L77) , Generator Replacement (LFX) . Reposition the transmission coolant lines attached to the front of the generator bracket.
1	CAUTION: Refer to Fastener Caution . Coolant Inlet Pipe FastenerTighten 22 N.m (16 lb ft)
2	Coolant Inlet Pipe
3	Generator Bracket Mounting Fasteners Tighten 58 N.m (43 lb ft)
4	Generator Bracket
