Installation Procedure

  1. Manoeuvre and install the fuel line to the vehicle.
    2. Fig 1: Fuel/Brake Pipe Retainers
    GM2175764Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Observed the marked the positions of the fuel/brake pipe retainers (1) when installing the fuel/brake pipe retainers (1) to the fuel/brake pipes assembly.

  2. Install all the fuel/brake pipe retainers (1) to the fuel/brake pipe assembly (2).
    3. Fig 2: Front Fuel/Brake Pipe Assembly Protection Plate
    GM2278434Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the front fuel/brake pipe assembly protection plate (1) to the vehicle and tighten the bolts to 22 N.m (16 lb in).

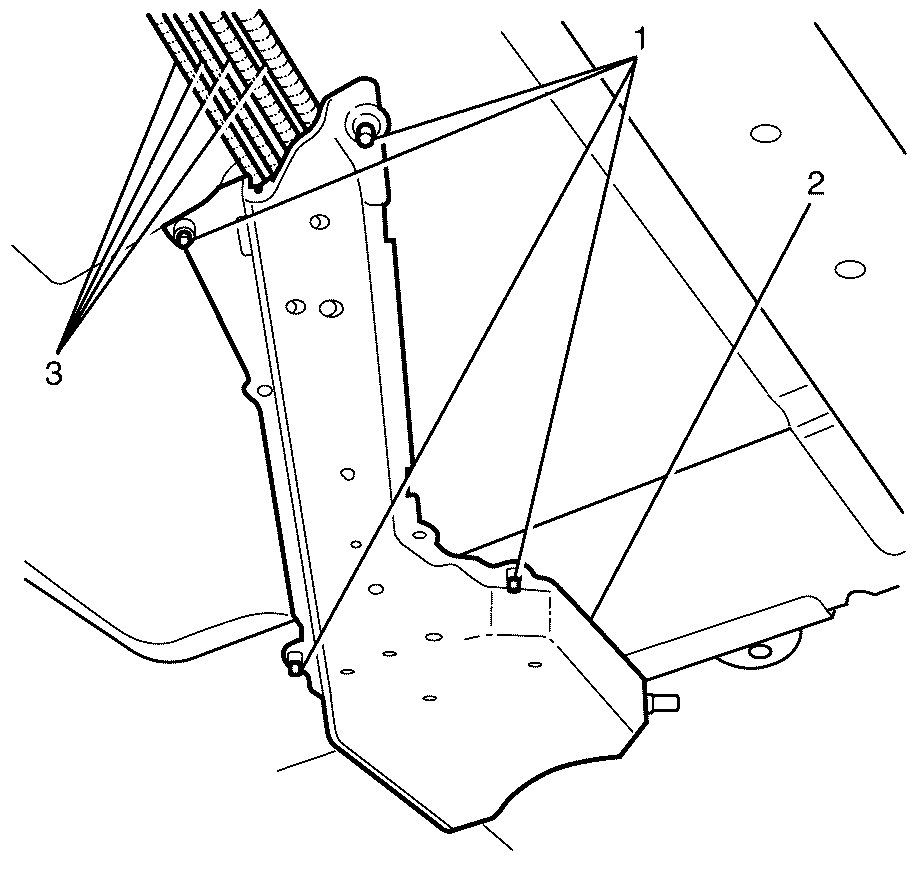

    4. Fig 3: Rear Stone Guard And Chassis Retaining Nuts
    GM2169831Courtesy of GENERAL MOTORS COMPANY
  4. Install the rear stone guard and the rear stone guard to chassis retaining nuts (1) and tighten to 4 N.m (35 lb in).
    5. Fig 4: Fuel Feed Hose
    GM2169830Courtesy of GENERAL MOTORS COMPANY
  5. Connect the fuel feed pipe (2). Refer to Metal Collar Quick Connect Fitting Service .
  6. Connect the EVAP pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
  7. Install the removed heat shields.
  8. Install the engine. Refer to Engine Replacement .
  9. Install the exhaust system. Refer to Exhaust System Replacement (V6) , Exhaust System Replacement (V8) .
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
