Removal Procedure

  1. Ignition OFF.

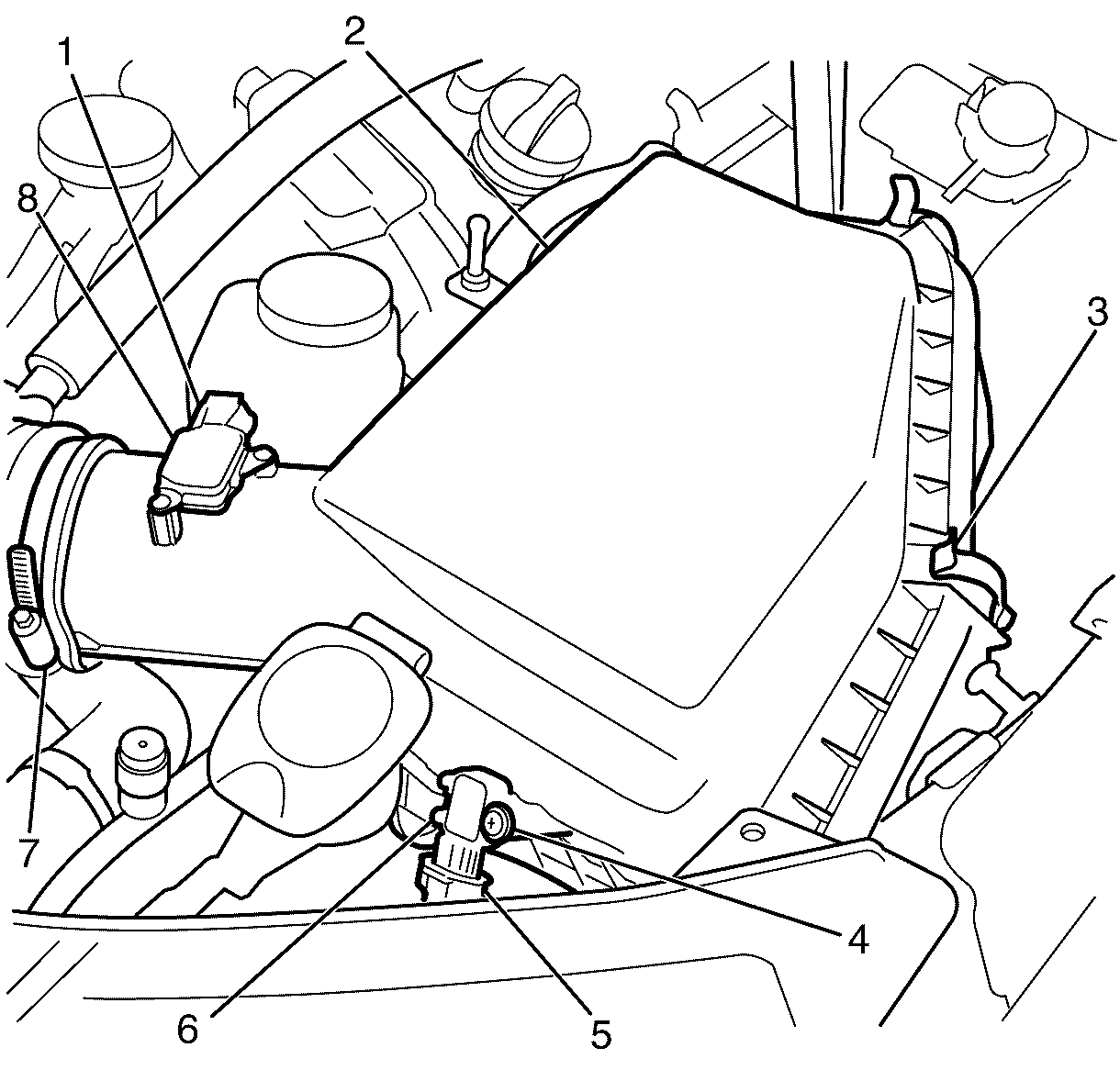

    2. Fig 1: Air Cleaner Outlet Duct Retaining Clamp
    GM2285327Courtesy of GENERAL MOTORS COMPANY
  2. Remove the air cleaner outlet duct retaining clamp (7).
  3. Disconnect the mass air flow (MAF) sensor harness connector (1) from the MAF sensor (8).
  4. Disconnect the throttle intake absolute pressure (TIAP) sensor harness connector (5) from the TIAP sensor (6).
  5. Detach all the air cleaner lower housing retaining clips (3) from the air cleaner upper housing (2).
  6. Remove the air cleaner upper housing (2) from the air cleaner assembly.
    7. Fig 2: Identifying Air Cleaner Element
    GM1949745Courtesy of GENERAL MOTORS COMPANY
  7. Remove the air cleaner element (1) from the air cleaner assembly.
