Removal Procedure

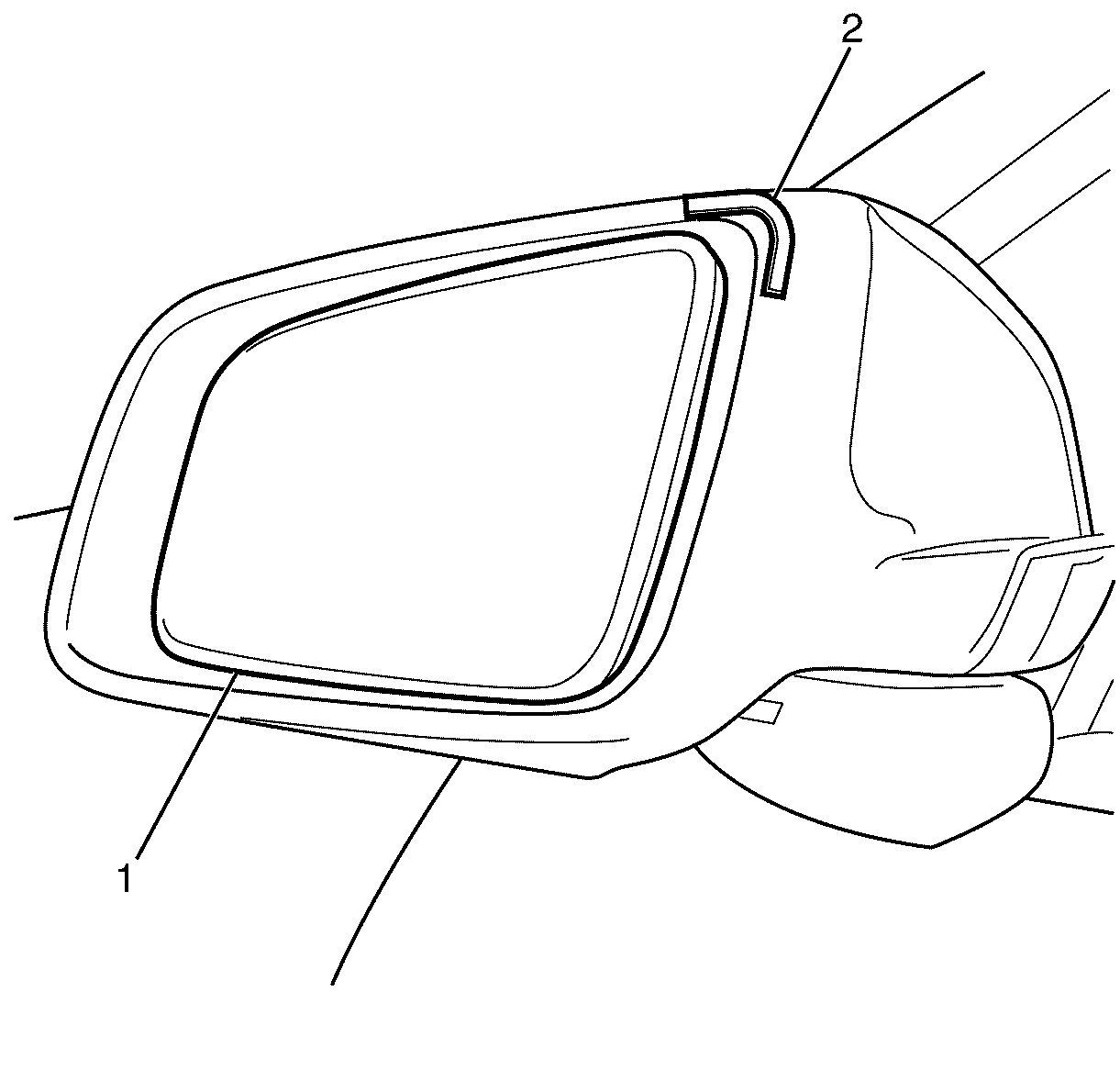

- Push the mirror glass inward at the bottom outer corner (1) until full travel is reached.
- Apply several layers of masking tape (2) to the top inner corner of the outside rearview mirror housing in order to protect from scratches.

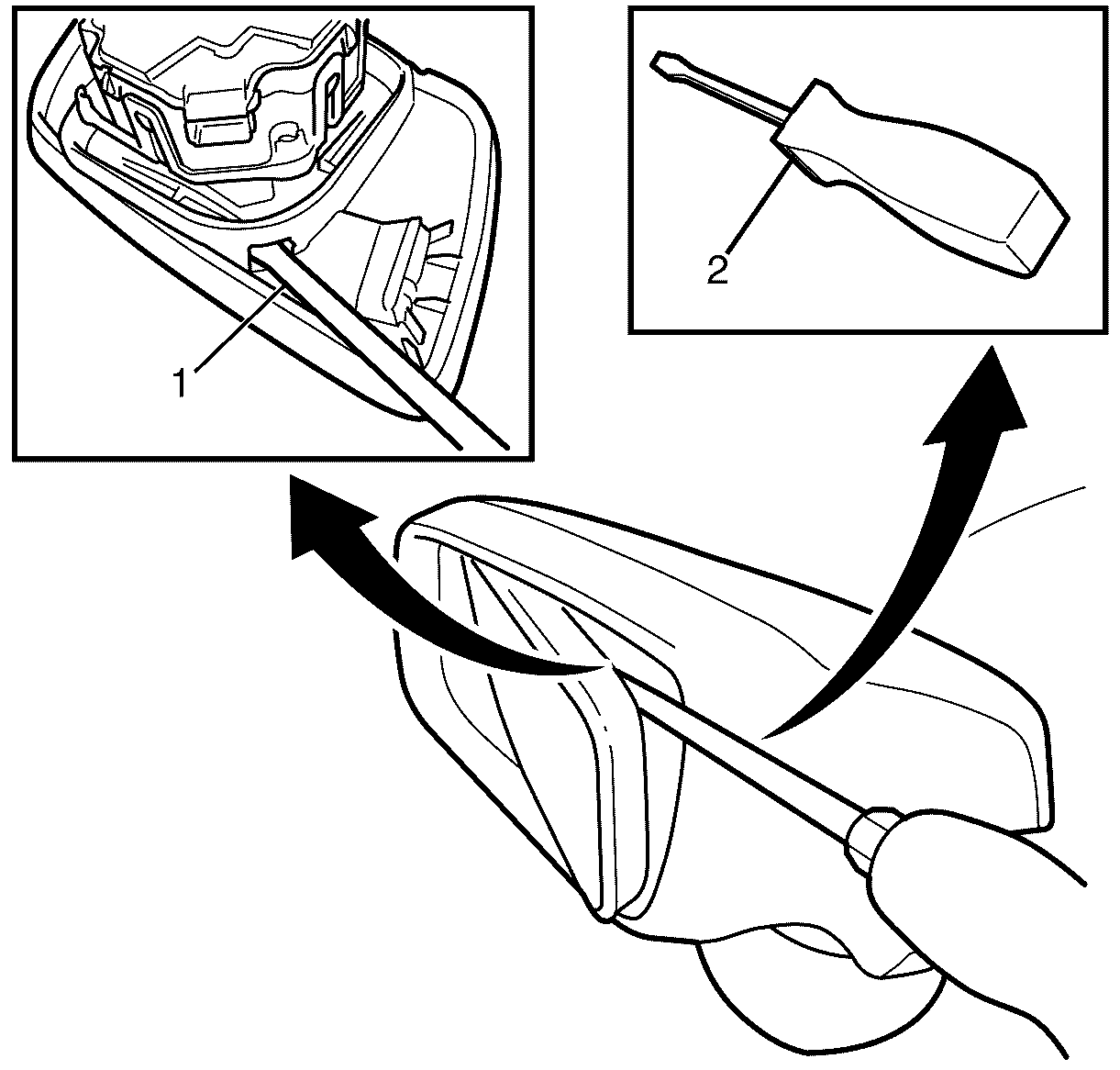

- Insert a suitable tool (2) into the removal window (1) located behind the mirror glass.
- Twist the tool to release the mirror glass from the actuator assembly.

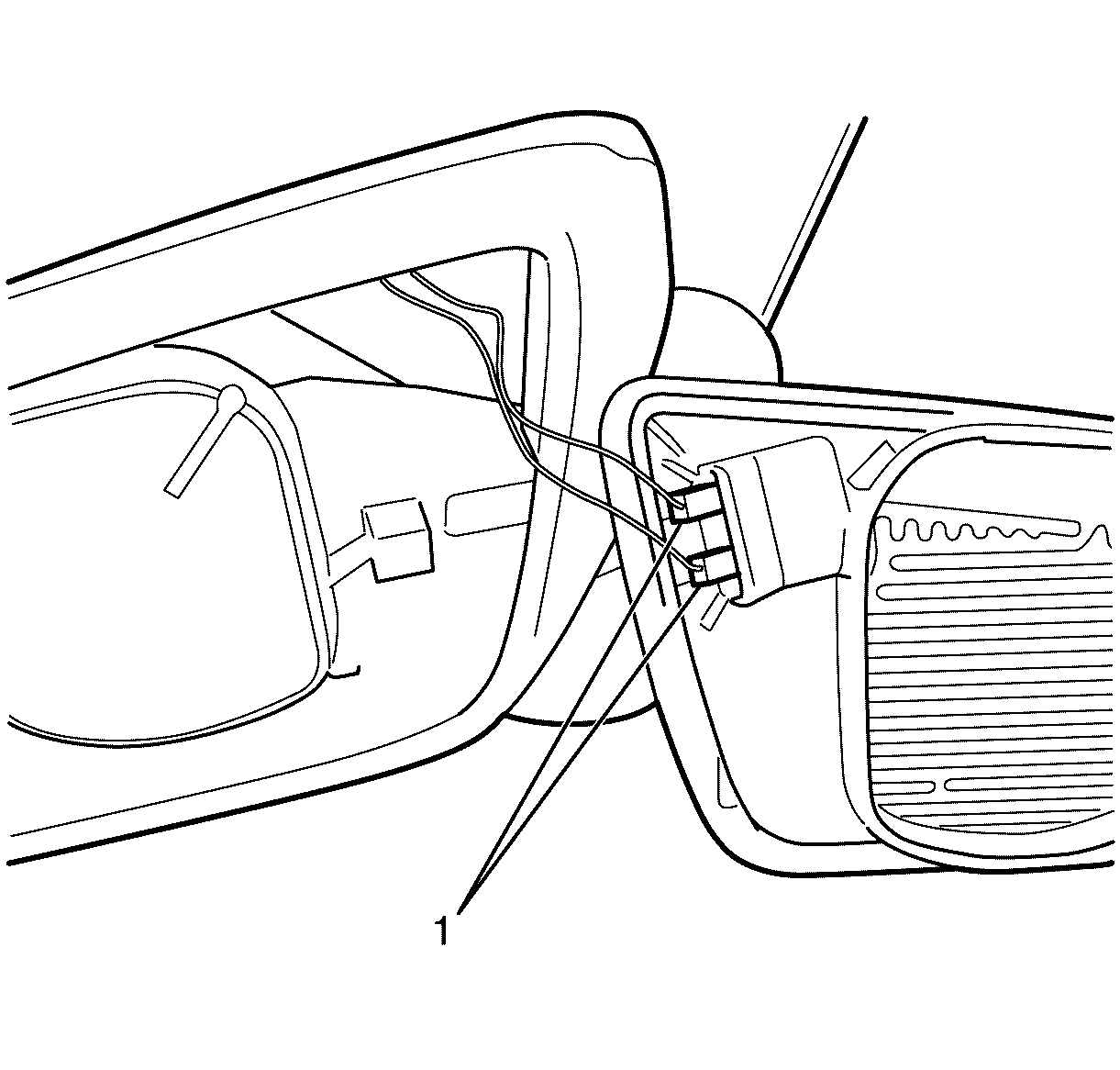

- If fitted, disconnect the wiring harness connectors (1) of the mirror glass heater.
WARNING:
When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.
