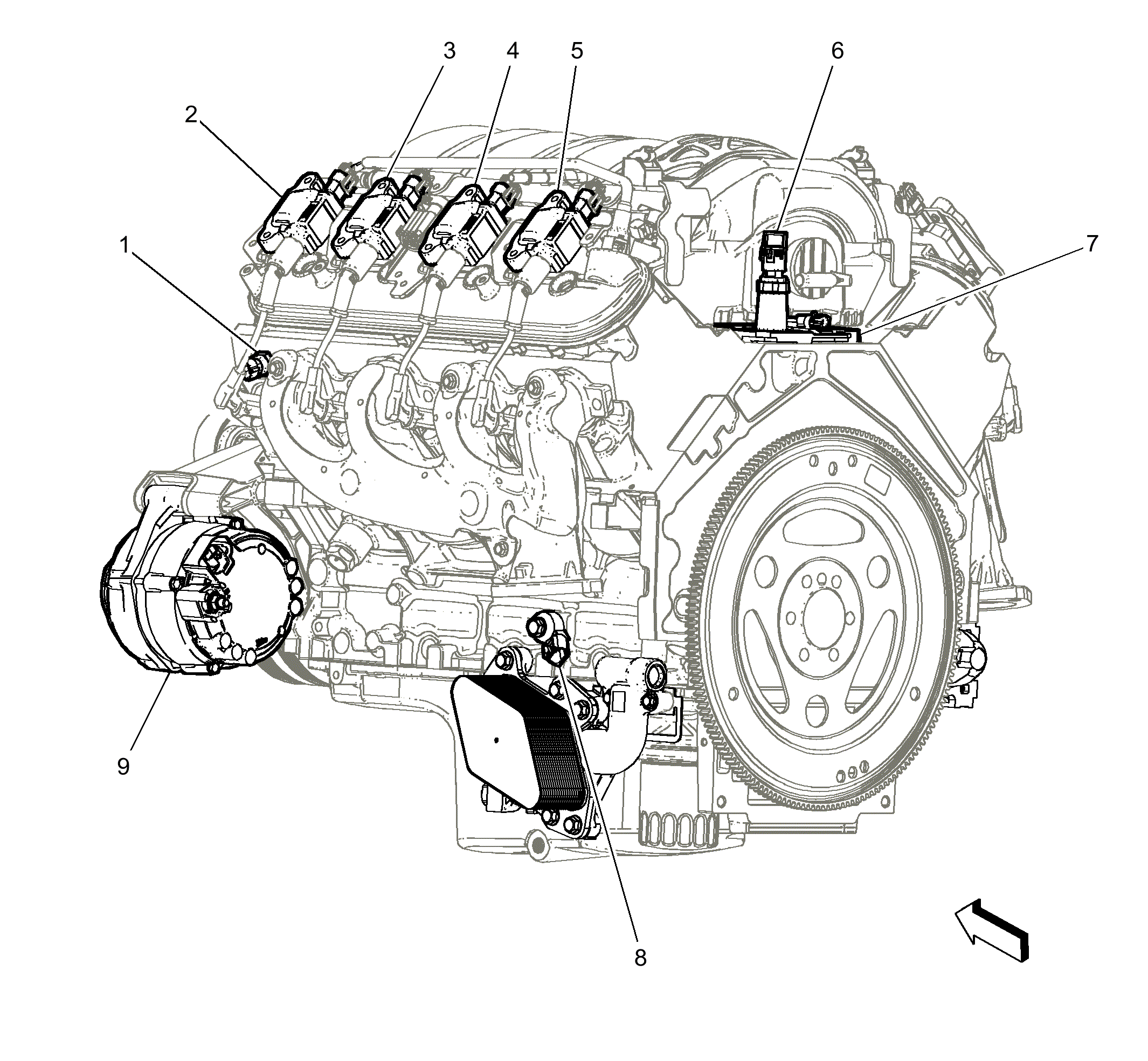

Left Rear of the Engine Components (L99 or LS3)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
Left Rear of the Engine Components (L99 or LS3)
| Component Name | Callout |
|---|---|
| B34 Engine Coolant Temperature Sensor | 1 |
| T8A Ignition Coil 1 | 2 |
| T8C Ignition Coil 3 | 3 |
| T8E Ignition Coil 5 | 4 |
| T8G Ignition Coil 7 | 5 |
| B37B Engine Oil Pressure Sensor | 6 |
| Q43 Valve Lifter Oil Manifold Assembly (L99) | 7 |
| B68A Knock Sensor 1 | 8 |
| G13 Generator | 9 |
