Moveable Window Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

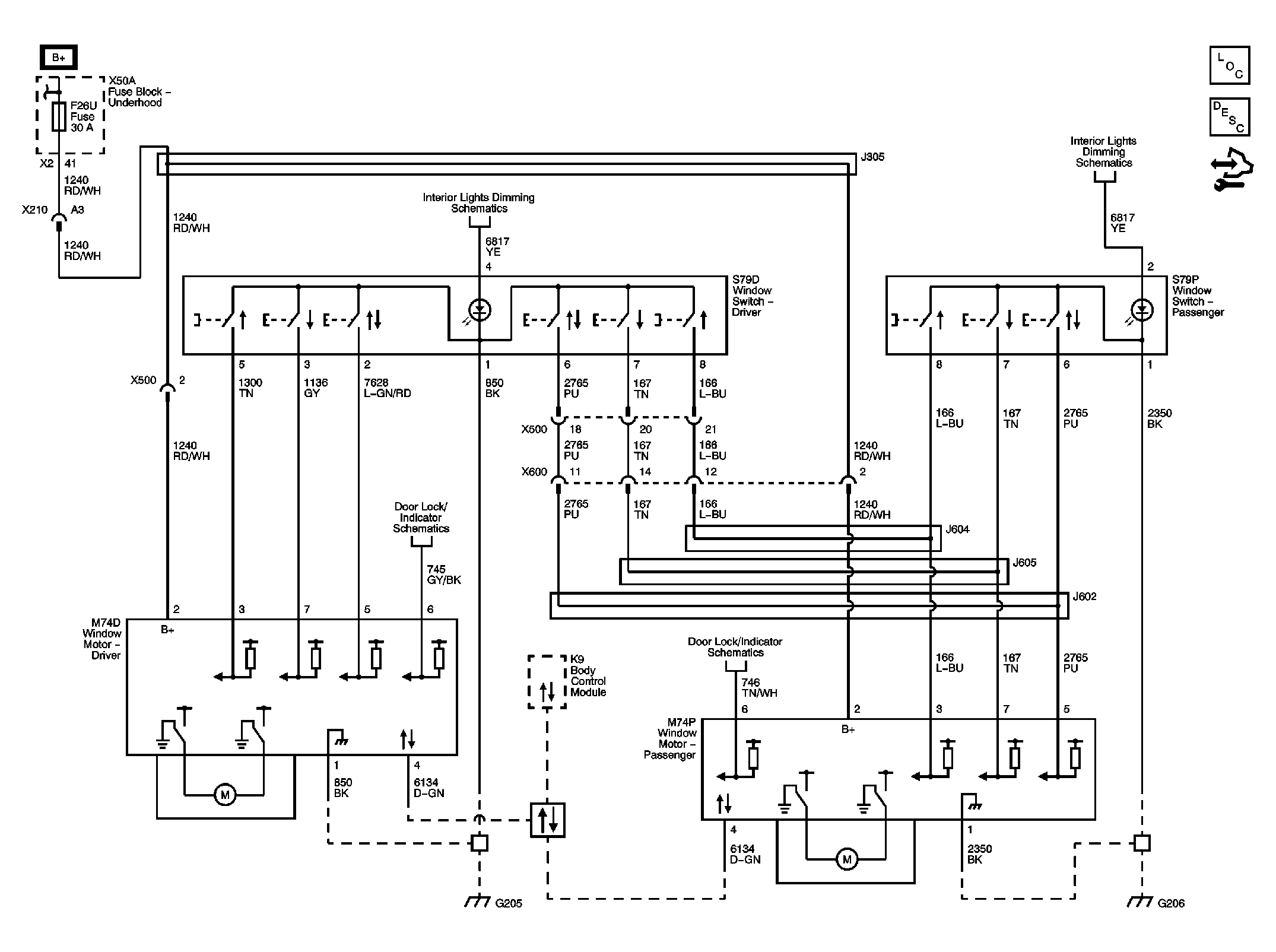

Fig 1: Moveable Window
GM2207322Courtesy of GENERAL MOTORS CORP.
