Throttle Body Assembly Replacement (LSA)

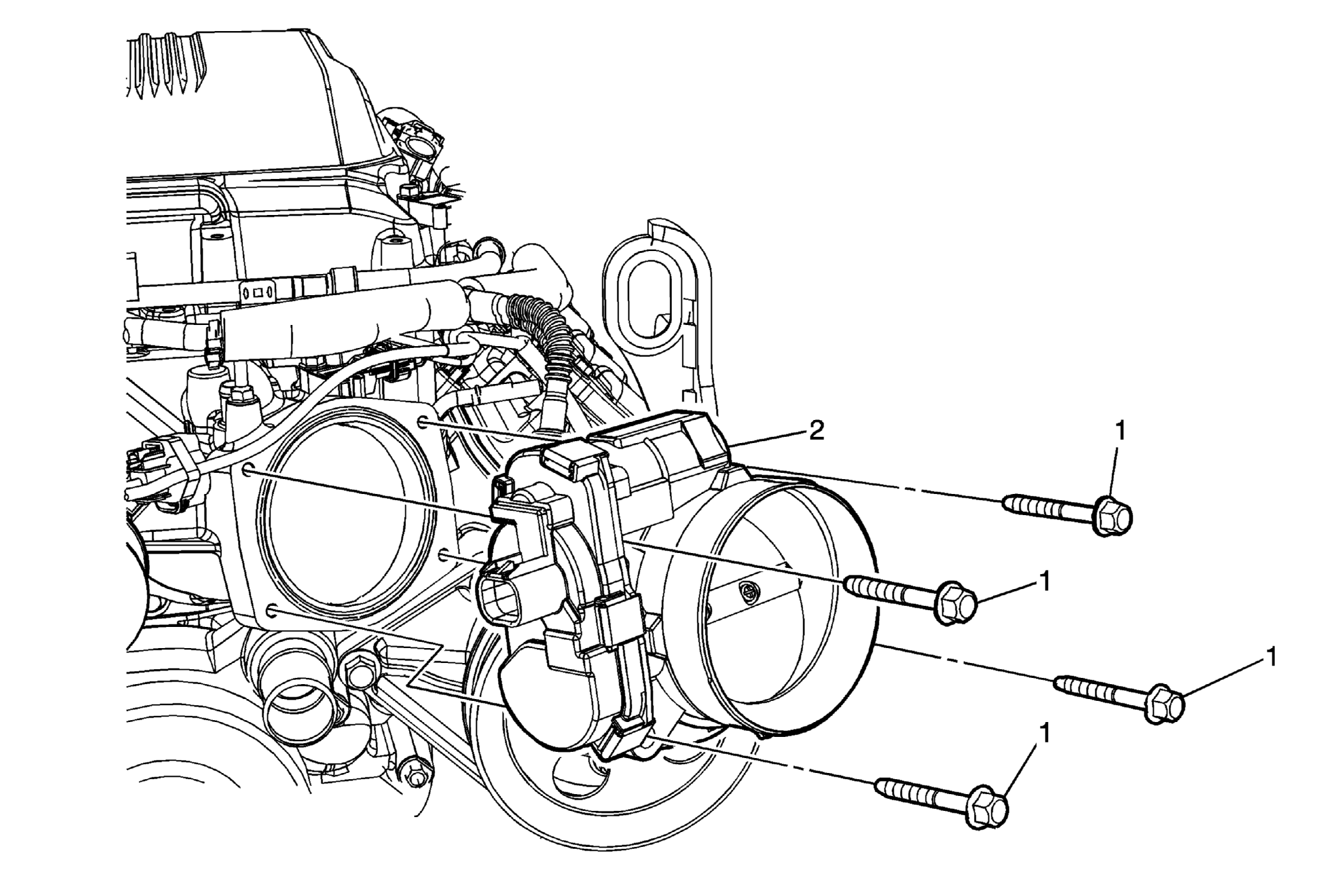

Fig 1: Identifying Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type. Preliminary Procedures Remove the air cleaner outlet duct. An 8-digit part identification number is stamped on the throttle body casting. Refer to this number if servicing, or if a part replacement is required.
1	Throttle Body Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . TIP: In order to prevent possible contamination, cover or plug any opening when servicing the throttle body. Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the throttle body harness connector. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .

Callout

Component Name

CAUTION:

Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

Preliminary Procedures

Remove the air cleaner outlet duct.
An 8-digit part identification number is stamped on the throttle body casting. Refer to this number if servicing, or if a part replacement is required.

Throttle Body Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

TIP: In order to prevent possible contamination, cover or plug any opening when servicing the throttle body.
Tighten
10 N.m (89 lb in)

Throttle Body

Procedure

Disconnect the throttle body harness connector.
Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
