Intake Air Temperature Sensor Replacement (LSA)
Intake Air Temperature Sensor Replacement (LSA)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front . |
|

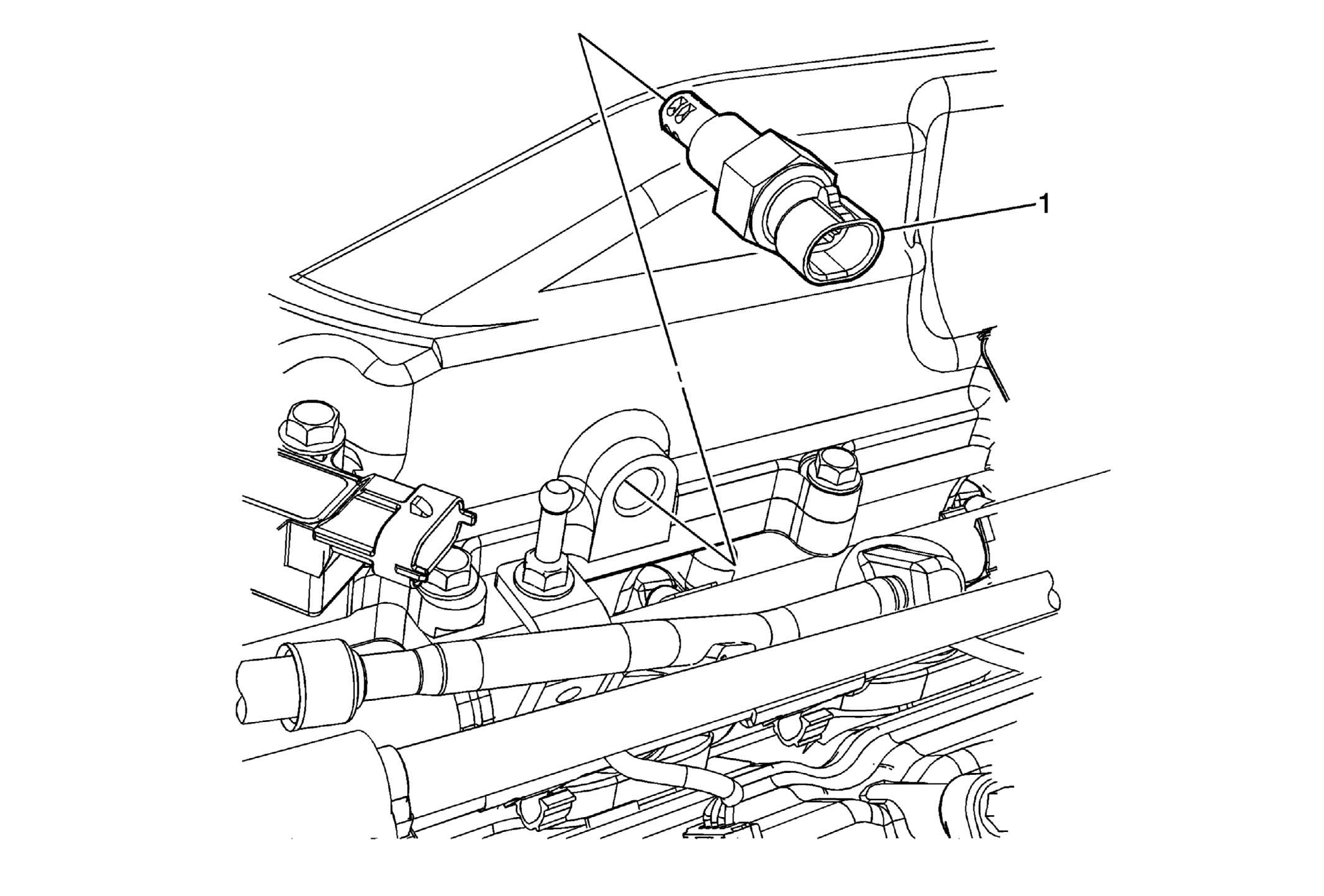

| 1 | Intake Air Temperature Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the intake air temperature sensor harness connector. Tighten 20 N.m (15 lb ft) |
