Ignition Coil Replacement (LSA)

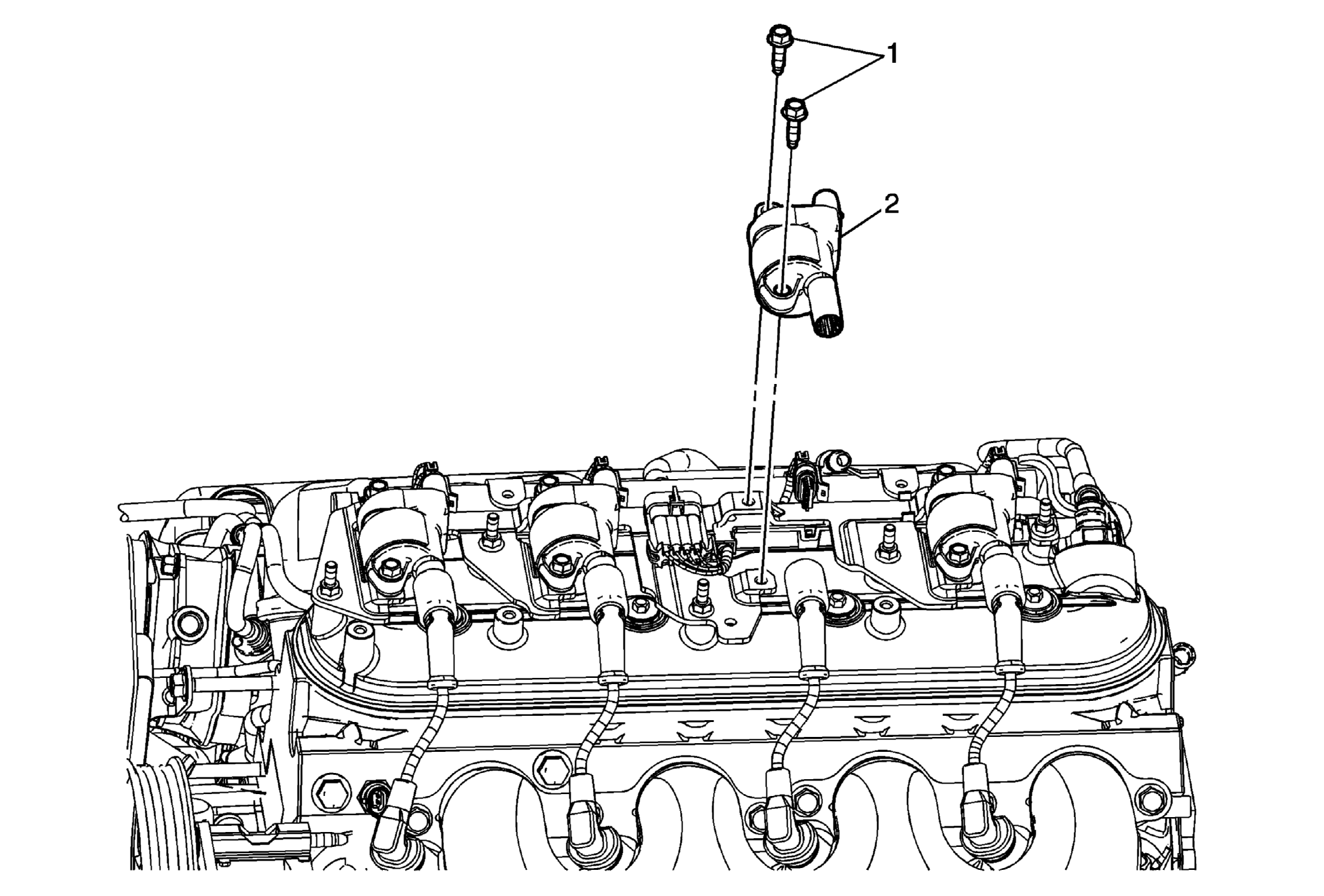

Fig 1: Ignition Coil & Fasteners (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Ignition Coil Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Ignition Coil Procedure Relocate wiring harnesses and hoses as necessary. Disconnect the electrical wiring harness connector from the ignition coil. Disconnect the spark plug wires from the ignition coil.

Callout

Component Name

Preliminary Procedures
Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Ignition Coil Fasteners (Qty: 3)

CAUTION:

Tighten
12 N.m (106 lb in)

Ignition Coil

Procedure
