Fuel Feed Rear Pipe Replacement
Fuel Feed Rear Pipe Replacement

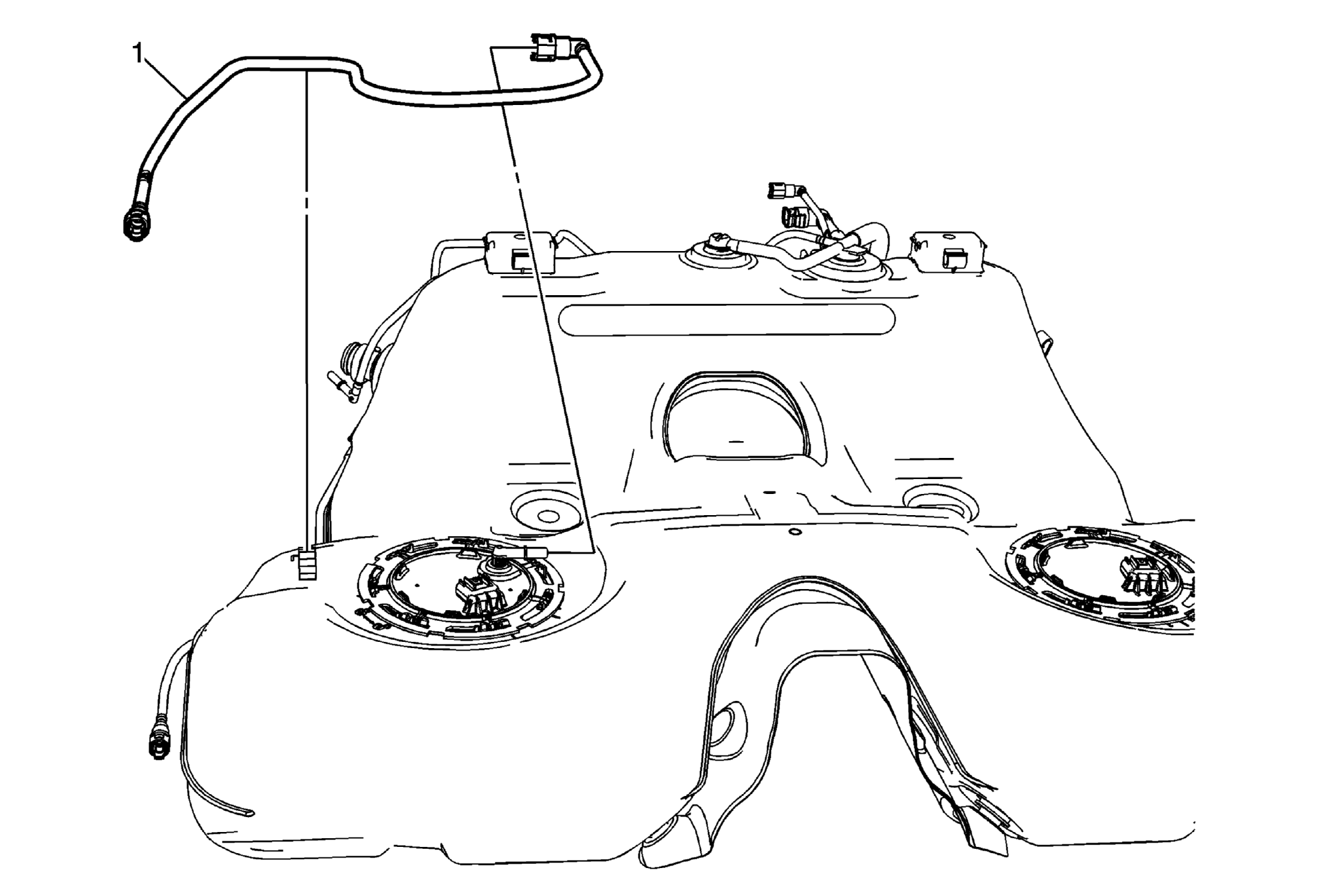

Fig 1: Fuel Feed Rear Pipe
Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Rear Pipe Replacement
Callout
Component Name
Preliminary Procedure
Remove the fuel tank. Refer to
Fuel Tank Replacement
.
Disconnect the quick connect connector. Refer to
Plastic Collar Quick Connect Fitting Service
.
1
Fuel Feed Rear Pipe
