Air Cleaner Assembly Replacement (LSA)

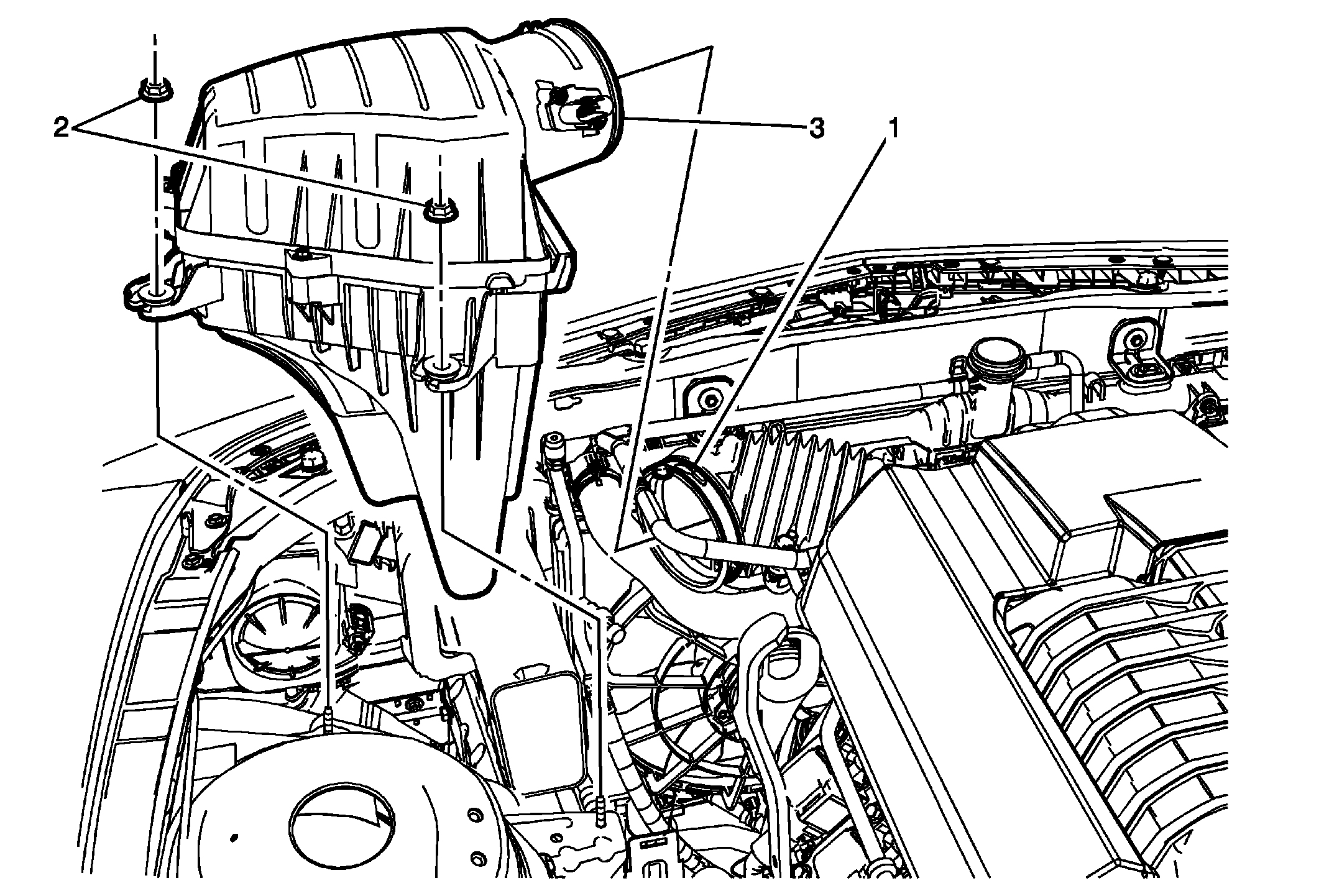

Fig 1: Air Cleaner Assembly & Fasteners (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (L99 or LS3) , Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LSA) .
1	Air Cleaner Resonator Outlet Duct Clamp CAUTION: Refer to Fastener Caution .
2	Air Cleaner Assembly Fastener (Qty: 2) Tighten 10 N.m (89 lb in)
3	Air Cleaner Assembly Procedure Pull up on the assembly to release lower retainers.
