Installation Procedure

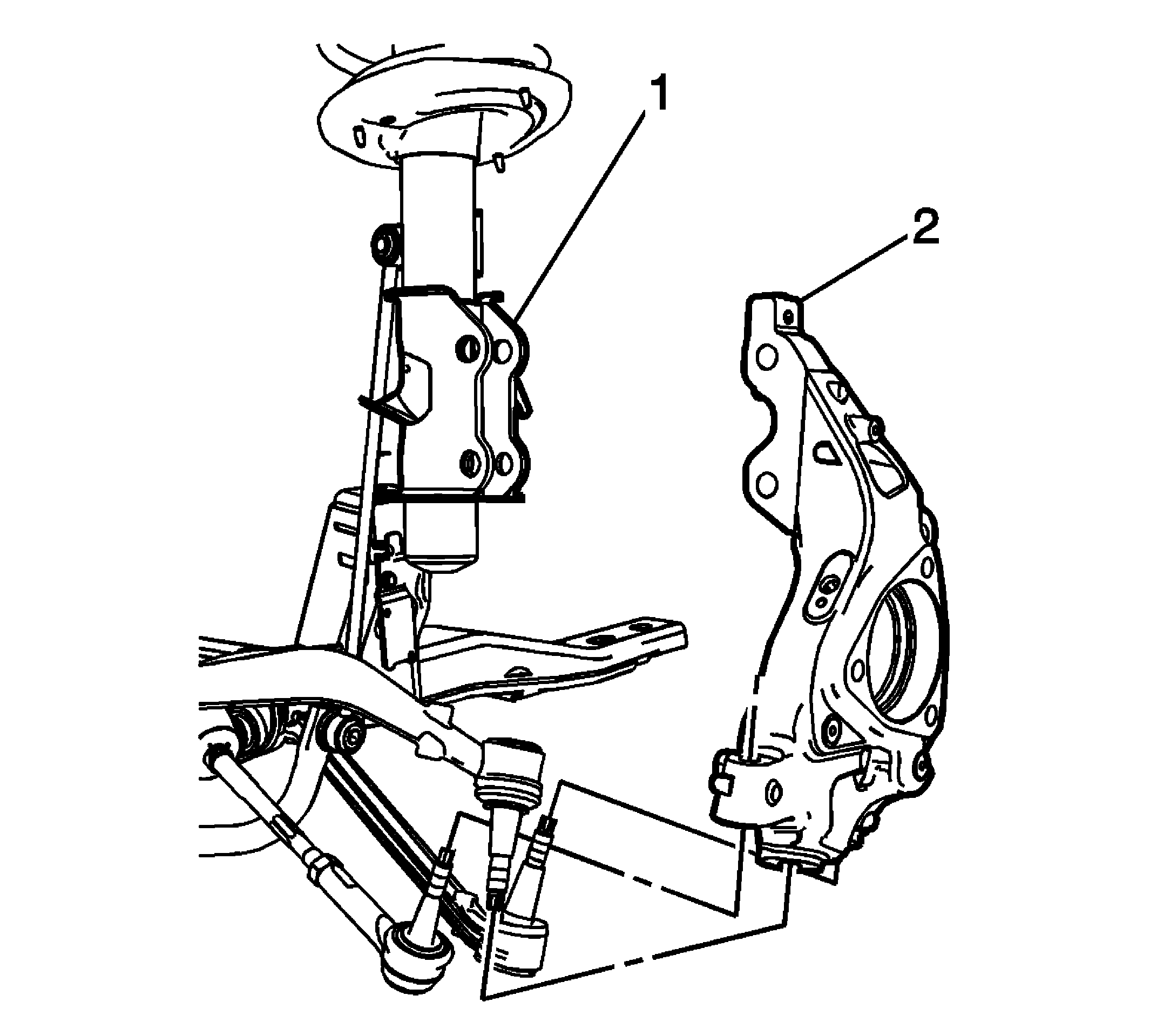

- Position the steering knuckle (2) in the strut (1).

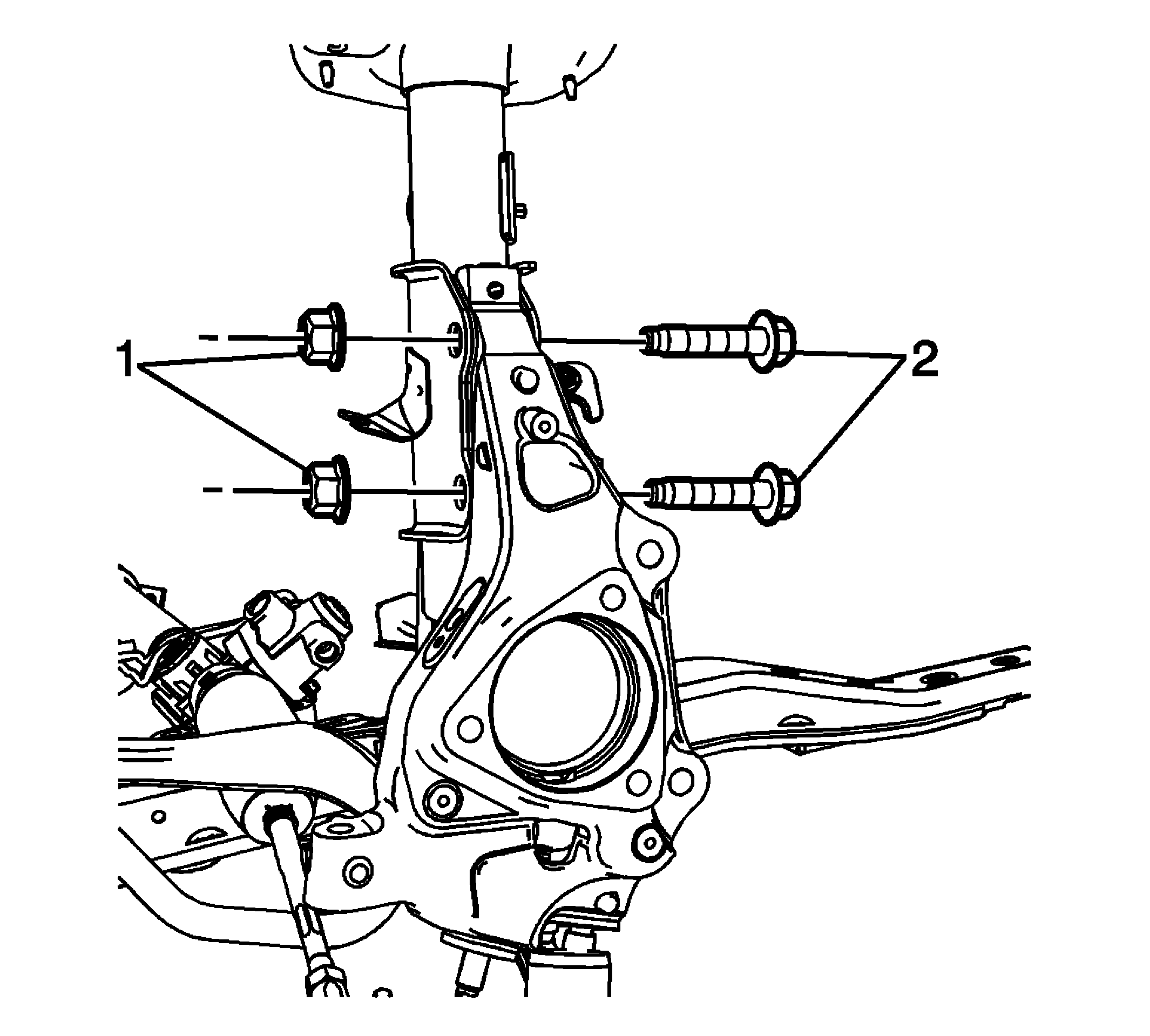

- Install the front suspension strut bolts (2) and nuts (1).
- Align the reference mark (2) on the steering knuckle (3) and the strut assembly (1).
- Install the front suspension strut bolts (2) and nuts (1) and tighten to 80 N.m (59 lb ft) plus an additional 180 degrees.
- Install the front lower control arm. Refer to Front Lower Control Front Arm Replacement .
- Install the front rear lower control arm. Refer to Front Lower Control Rear Arm Replacement .
- Install the outer tie rod end. Refer to Steering Linkage Outer Tie Rod Replacement (L99, LFX, LS3, N41) , Steering Linkage Outer Tie Rod Replacement (LSA, NV9) .
- Install the wheel bearing/hub assembly. Refer to Front Wheel Bearing and Hub Replacement (LSA, LS3, L99) , Front Wheel Bearing and Hub Replacement (LFX) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
- Install the speed sensor. Refer to Front Wheel Speed Sensor Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
- Remove the support and lower the vehicle.
- Check and adjust the front wheel alignment, if needed. Refer to Front Camber Adjustment .
CAUTION:
Refer to Fastener Caution .
