Top of the Engine Components (LLT)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

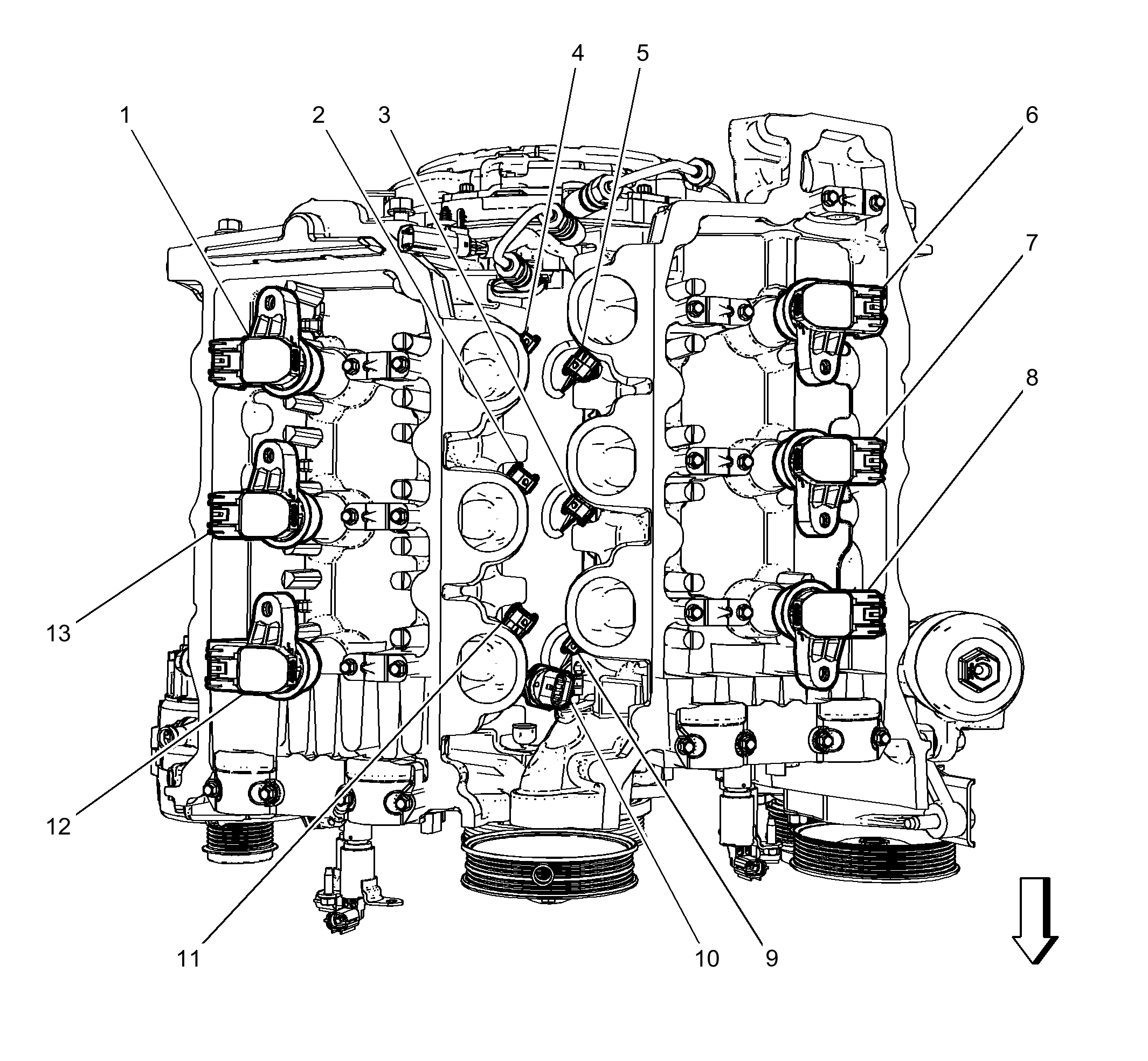

Top of the Engine Components (LLT)
| Component Name | Callout |
|---|---|
| T8E Ignition Coil 5 | 1 |
| Q17C Fuel Injector 3 | 2 |
| Q17D Fuel Injector 4 | 3 |
| Q17E Fuel Injector 5 | 4 |
| Q17F Fuel Injector 6 | 5 |
| T8F Ignition Coil 6 | 6 |
| T8D Ignition Coil 4 | 7 |
| T8B Ignition Coil 2 | 8 |
| Q17B Fuel Injector 2 | 9 |
| B47B Fuel Rail Pressure Sensor | 10 |
| Q17A Fuel Injector 1 | 11 |
| T8A Ignition Coil 1 | 12 |
| T8C Ignition Coil 3 | 13 |
