Top of the Engine Components (L99 or LS3)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

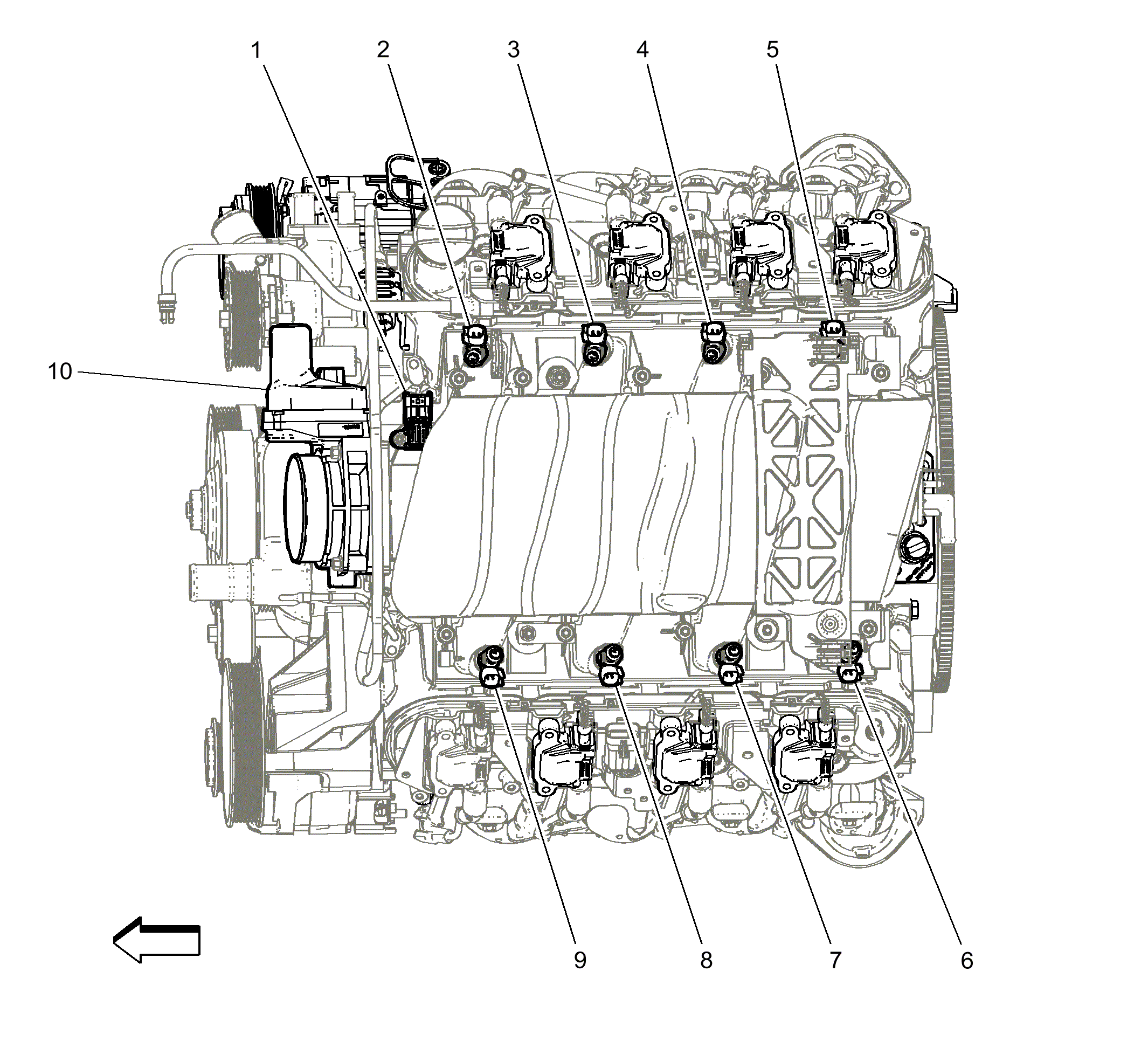

Top of the Engine Components (L99 or LS3)
| Component Name | Callout |
|---|---|
| B74 Manifold Absolute Pressure Sensor | 1 |
| Q17B Fuel Injector 2 | 2 |
| Q17D Fuel Injector 4 | 3 |
| Q17F Fuel Injector 6 | 4 |
| Q17H Fuel Injector 8 | 5 |
| Q17G Fuel Injector 7 | 6 |
| Q17E Fuel Injector 5 | 7 |
| Q17C Fuel Injector 3 | 8 |
| Q17A Fuel Injector 1 | 9 |
| Q38 Throttle Body | 10 |
