Rear of Transmission Components (MV5)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

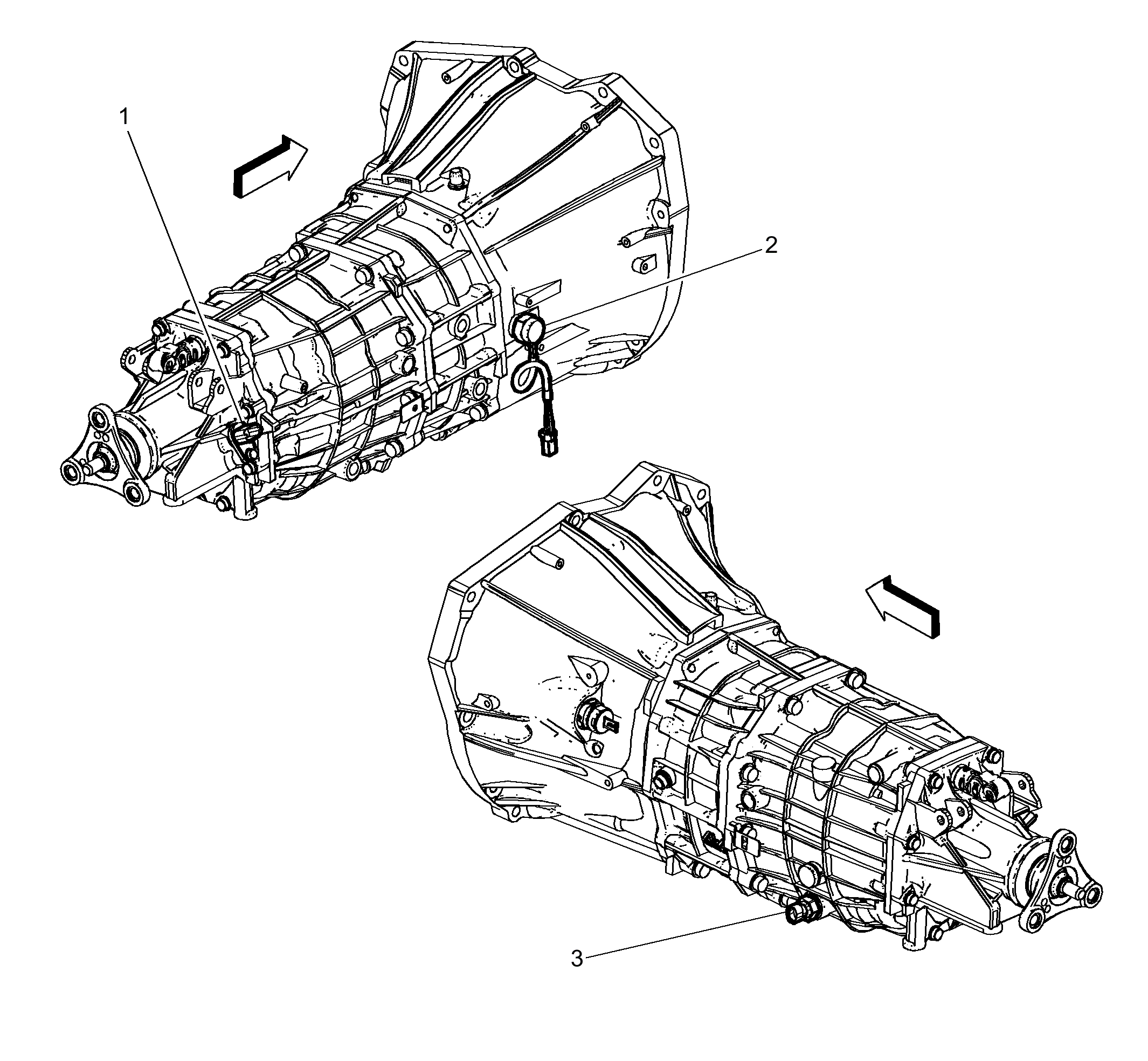

Rear of Transmission Components (MV5)
| Component Name |
Callout |
| B115 Vehicle Speed Sensor |
1 |
| B16 Backup Lamp Switch |
2 |
| B173 Manual Transmission Fluid Temperature Sensor |
3 |
Courtesy of GENERAL MOTORS CORP.
