Turn Signal Multifunction Switch Replacement

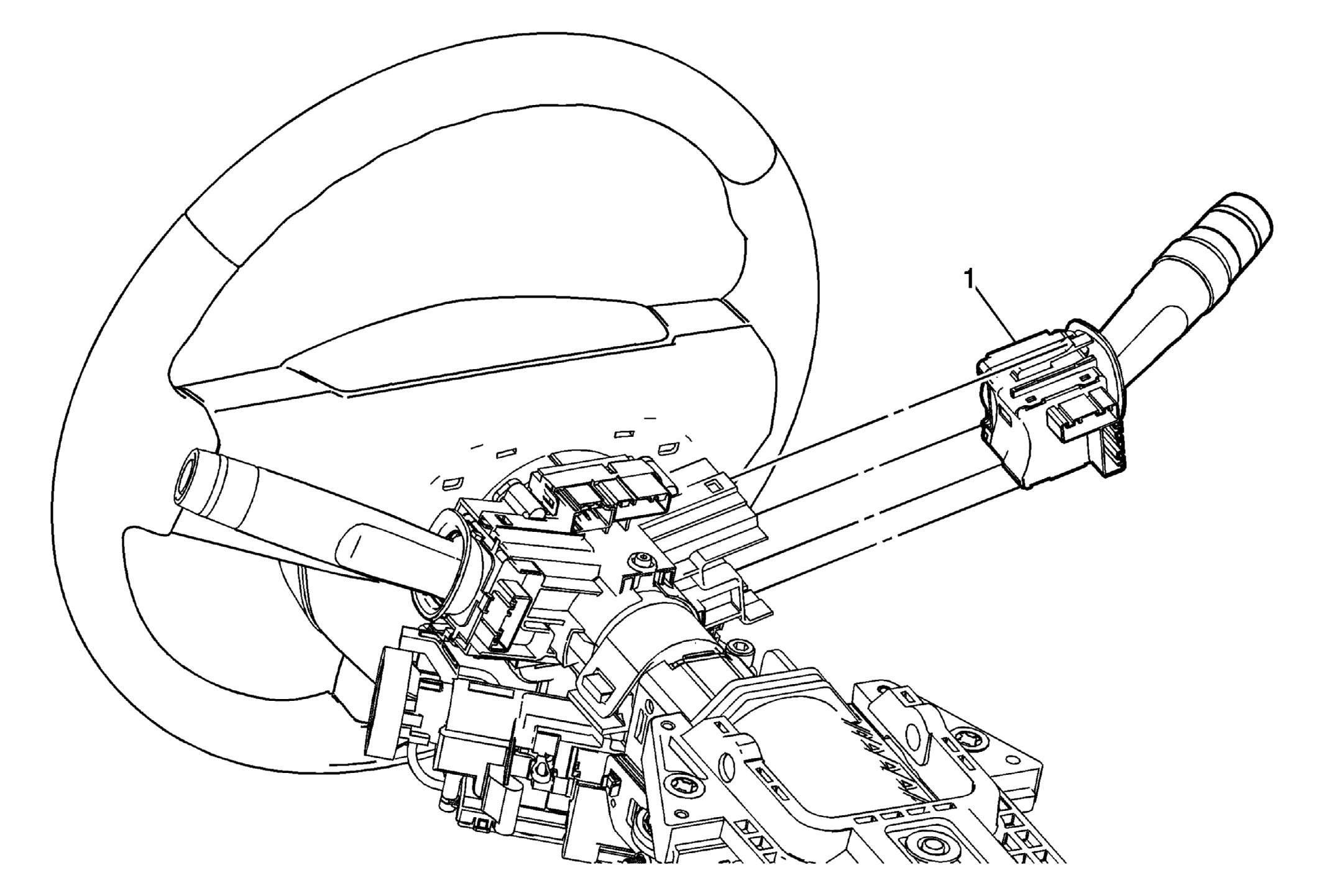

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Turn Signal Multifunction Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
